Platform elevator systems

Platform lift device for transporting goods
Type PFL

ELEVATOR SUITABLE FOR LIFTING MAX. 1,000 KG

  • Solid industrial execution guarenteed long-life
  • Mainly made of stainless steel
  • Glass bead blasted stainless steel surface
  • Stationary version for floor mounting
  • Platform with the possibility of fixing the trolleys
  • Lifting device suitable for heights up to 4,000 mm
  • Safety cages with ramp for trolleys
  • Payload maximum 1000 kg (including 2 trolleys)
  • High pressure cleaning resistant, safety class IP 65
  • Mechanical safety precautions: Special chain break protection

TypeCapacityLoading capacityDimensions
W x D x H in mm
PDF
PFL 42002 trolleys1.000 kg1.760 x 2.140 x 6.45018.00.00.14
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.



Execution according to customer requirements. Special solutions possible on request. Delivery without trolleys (optional).



Material

Nearly complete made of stainless steel 1.4301, glass bead blasted stainless steel surface



Special drop safety

The fall arrester is made of stainless steel and consists of a 4 mm thick U-profile rail with rectangular fixing holes and a pressure spring activated 25 mm fork.

The fall protection comes into operation for breaking the chain, or if the chain sags. When that happens, the compression spring is released and the fork turns into the fixing holes and Brind the load to an immediate stop.

Unlike conventional lifting devices service call is not necessary after initiation of mechanical safety device.



Technical Data

Power supply3x 400 V; 50 Hz
Performance1,1 kW
Weight500 kg
Protection classIP 65
Loading capacity1.000 kg (incl. 2 trolleys)
Lifting speed3 m/min

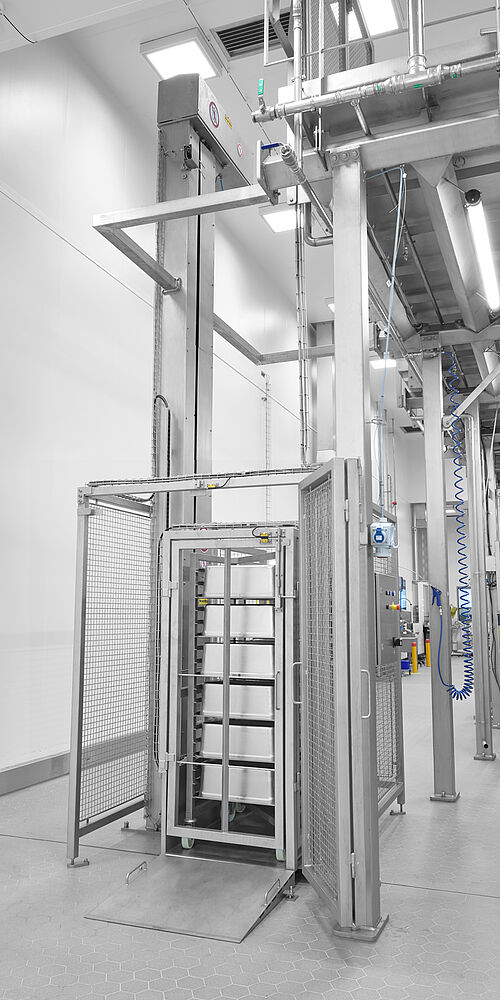

Reference Photos

Video
