Transport trolley for 10 plastic plates type TWPE-10, art. no. 43.00.00.34

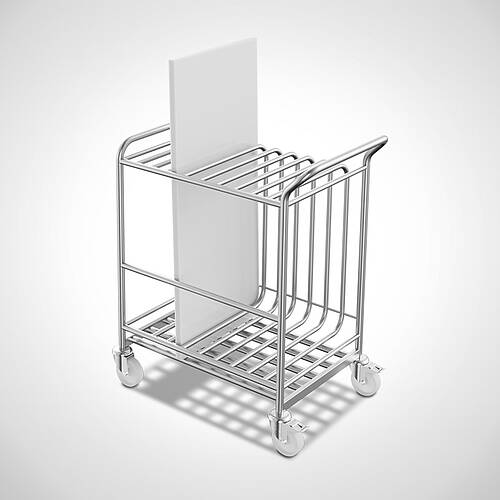

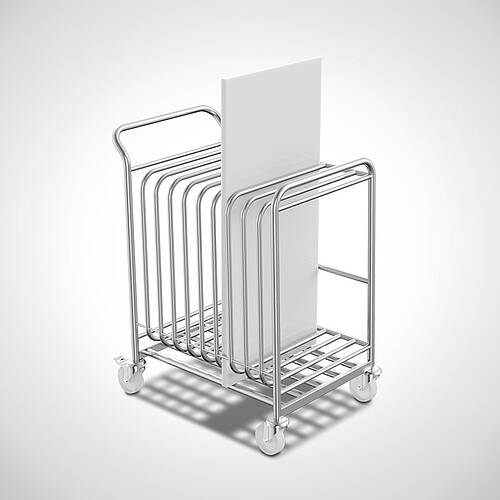

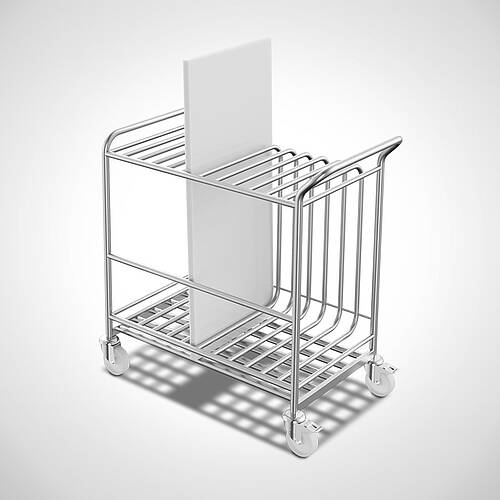

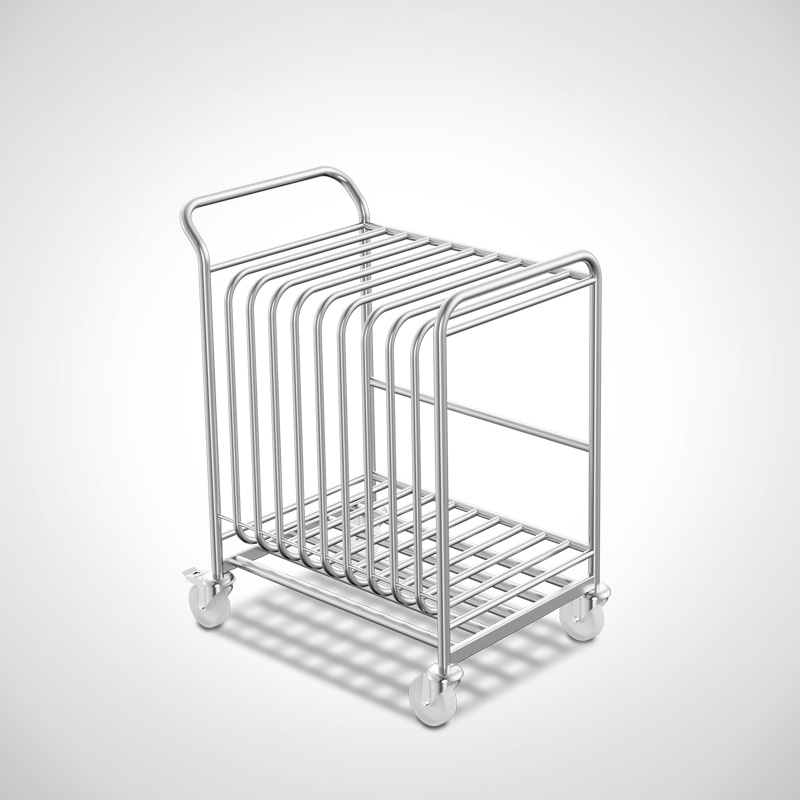

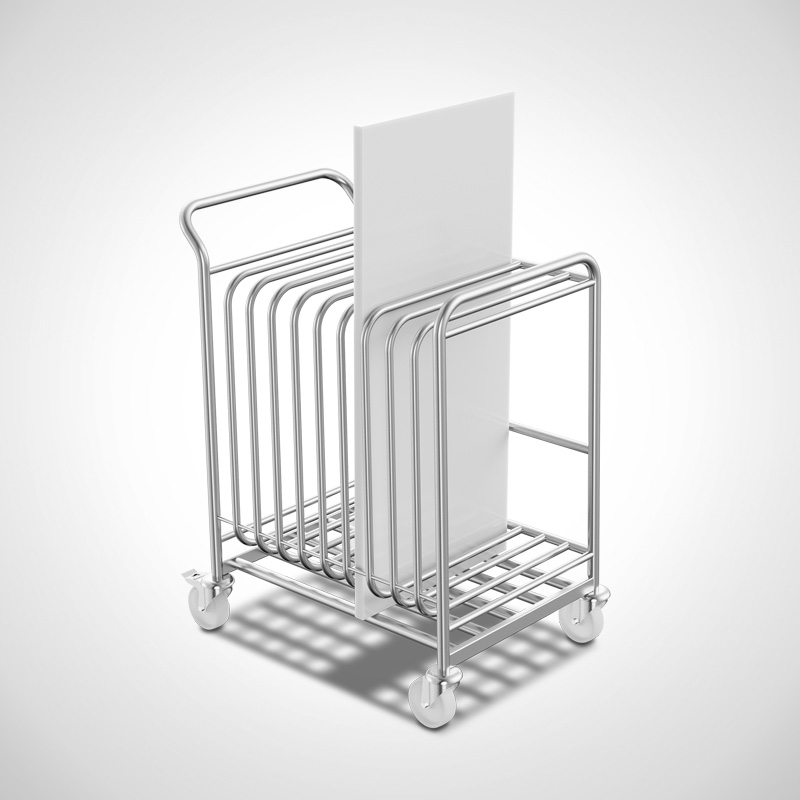

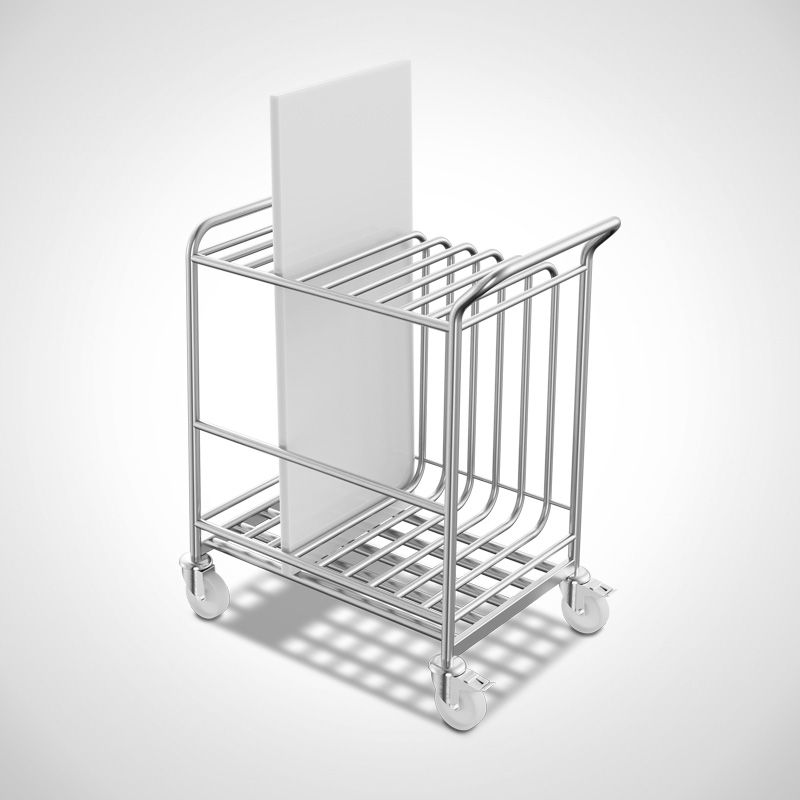

Transport trolley for 10 plastic sheets type TWPE-10, art. no. 43.00.00.34

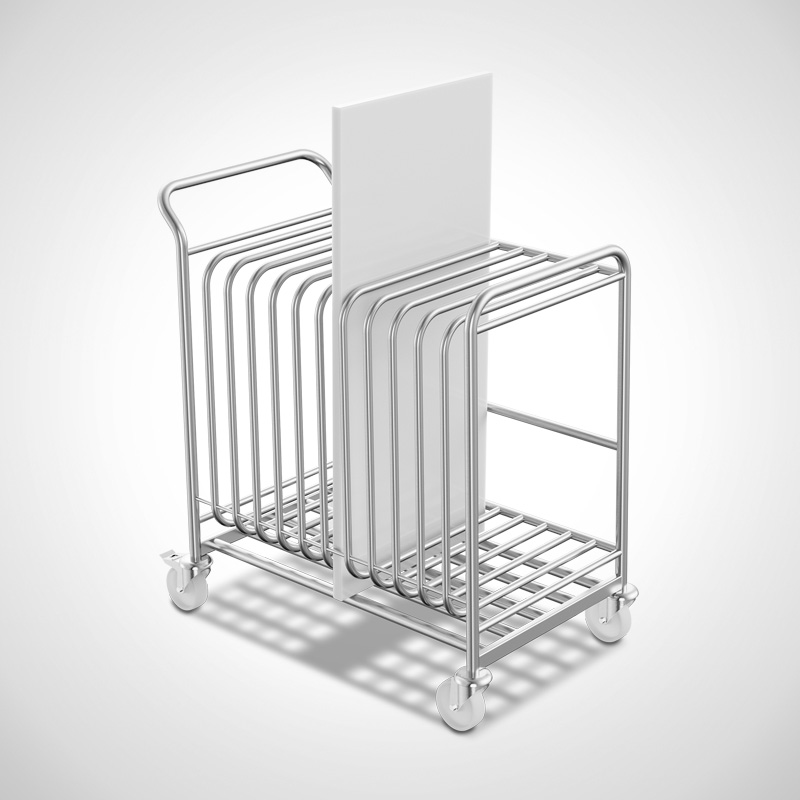

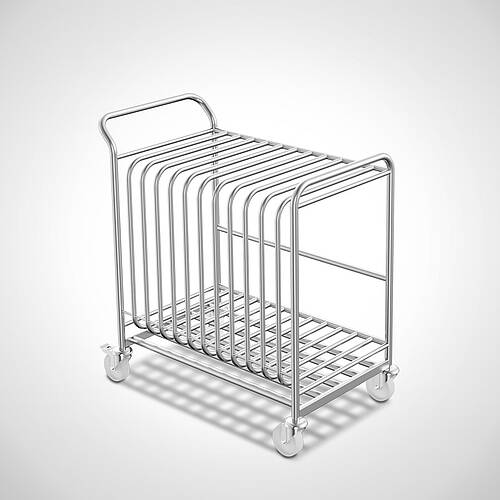

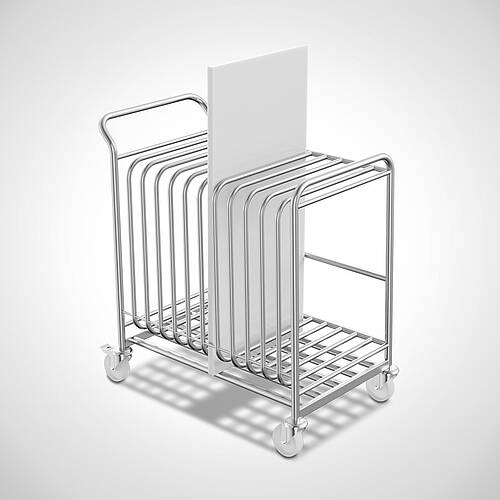

Transport trolley for 12 plastic sheets type TWPE-12, art. no. 43.00.00.35

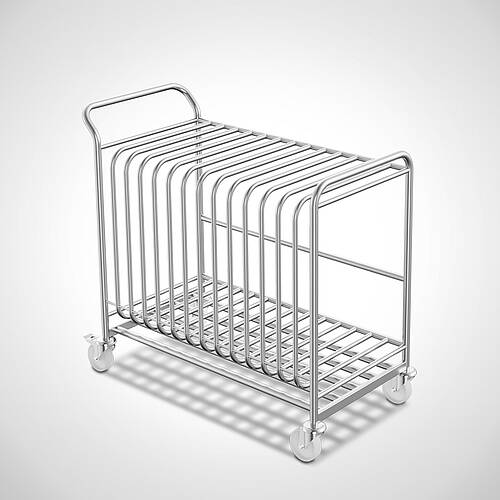

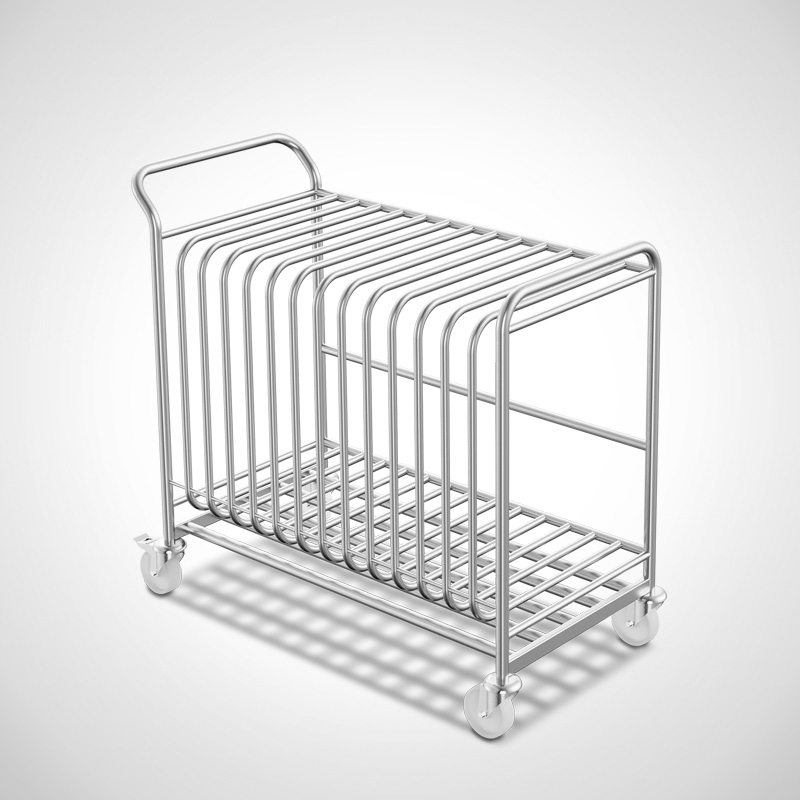

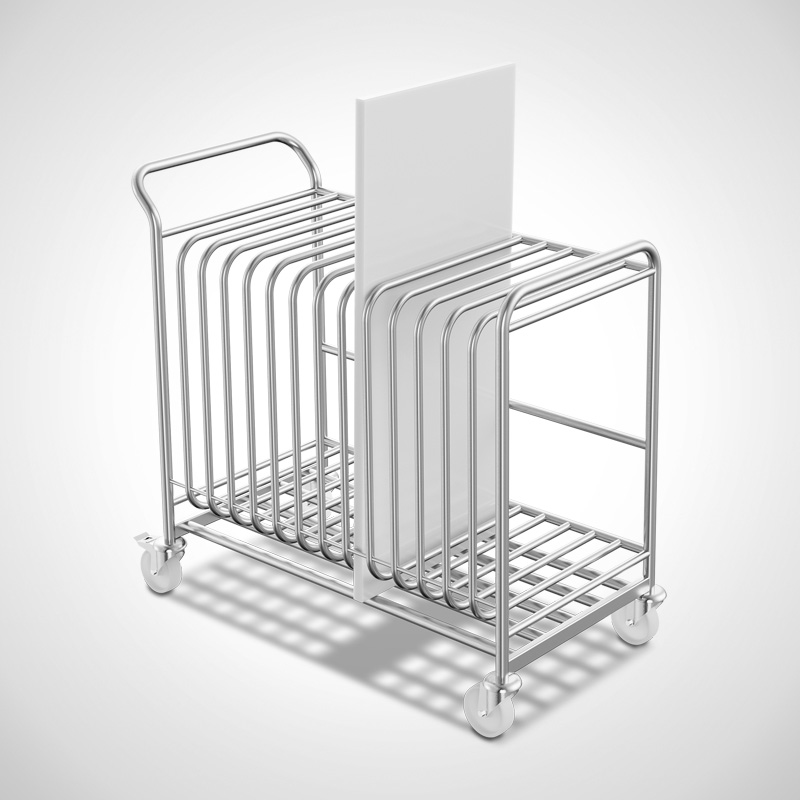

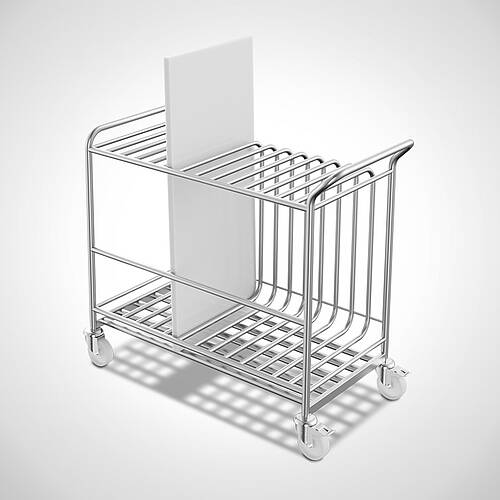

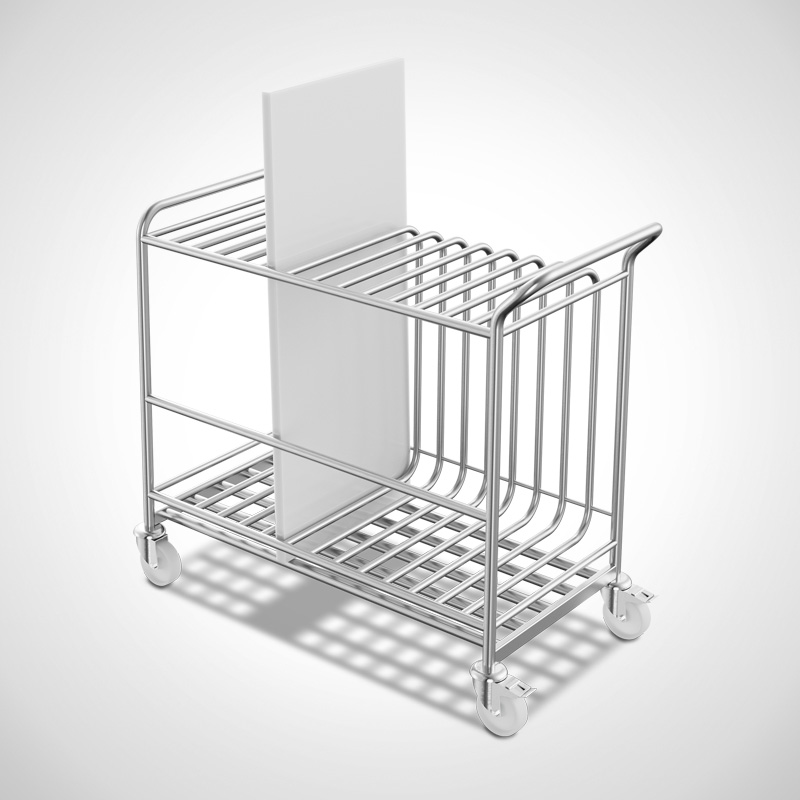

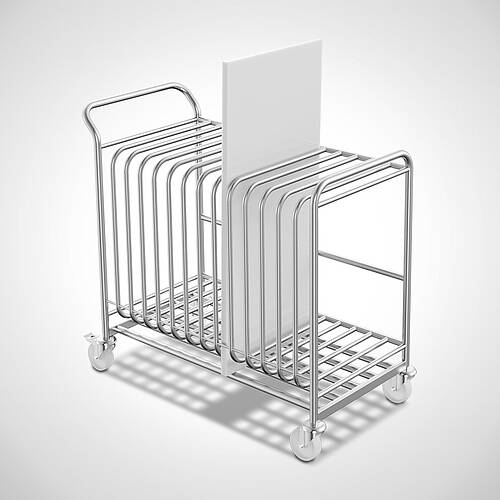

Transport trolley for 14 plastic sheets type TWPE-14, art. no. 43.00.00.36

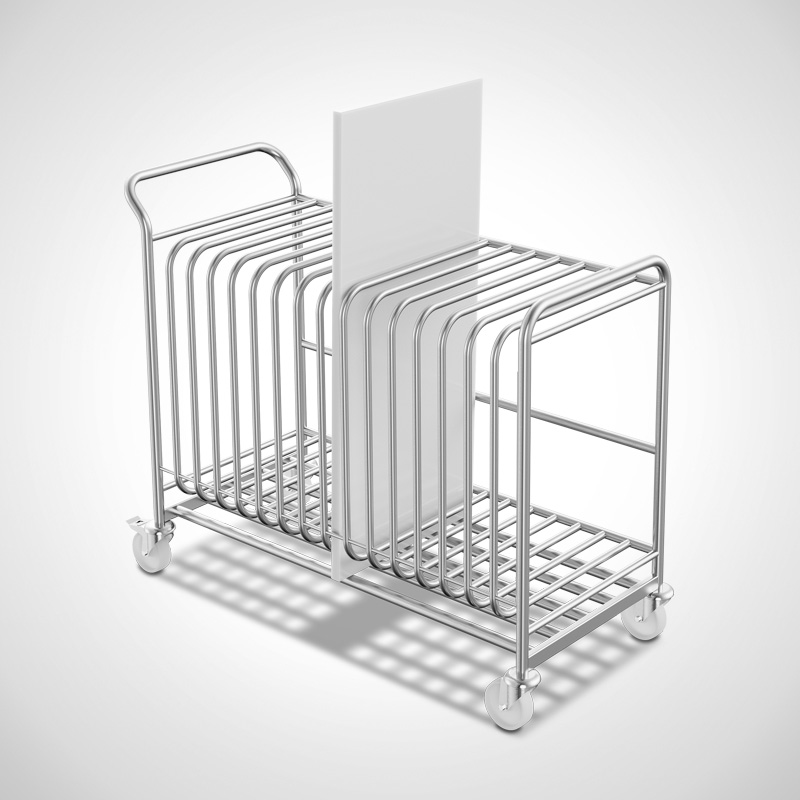

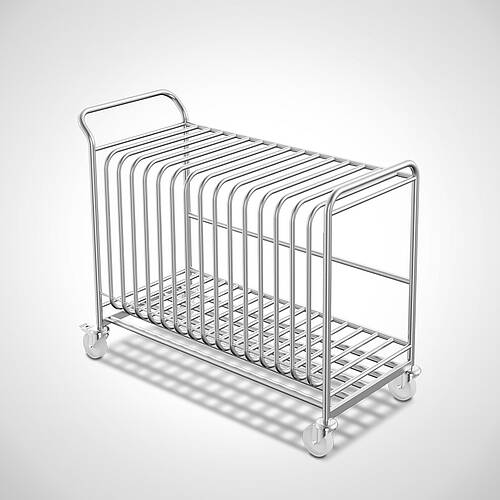

Transport trolley for 16 plastic sheets type TWPE-16, art. no. 43.00.00.37

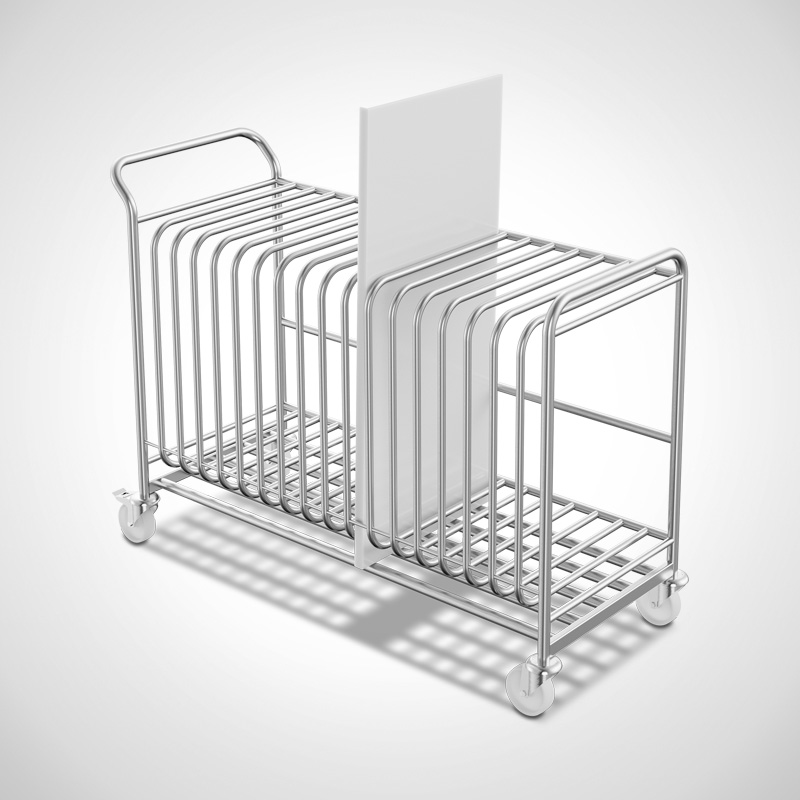

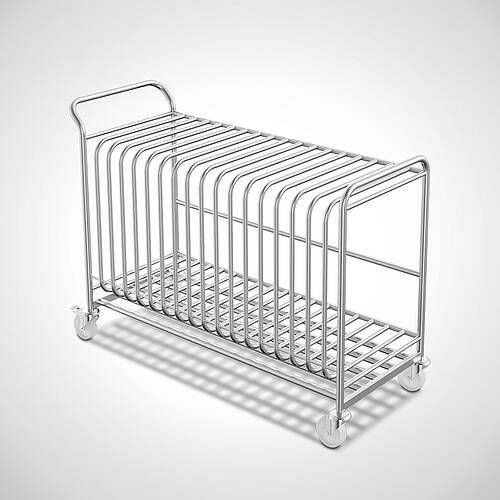

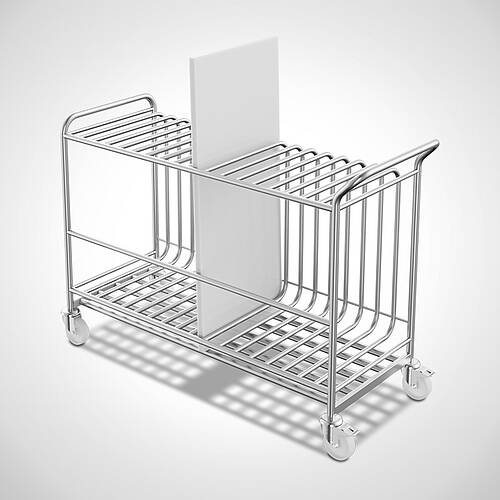

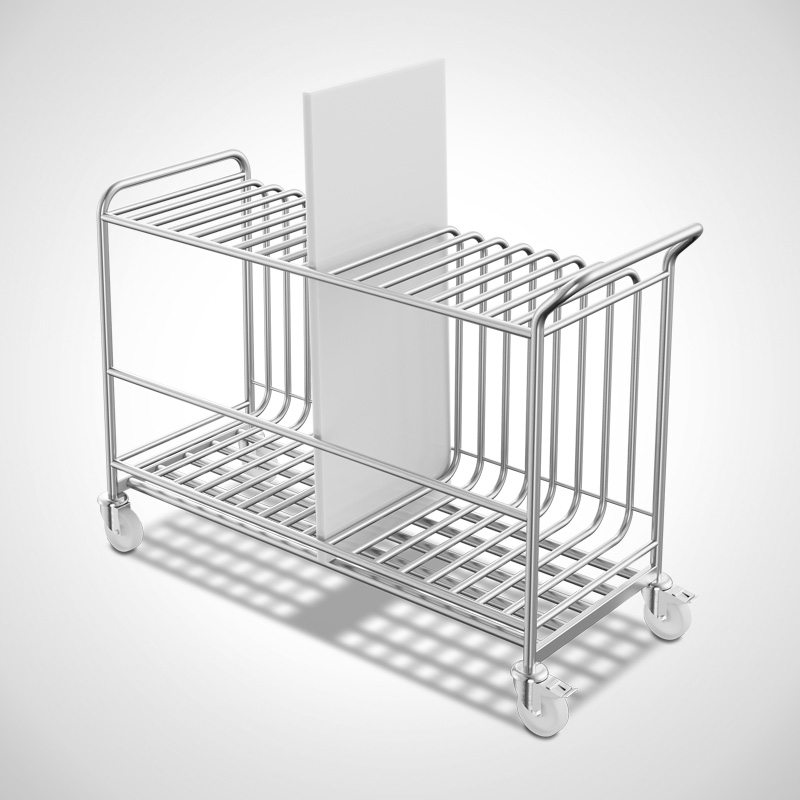

Transport trolley for 18 plastic sheets type TWPE-16, art. no. 43.00.00.38

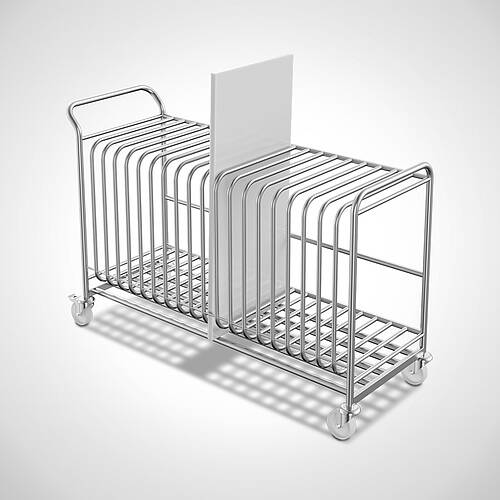

Transport trolley for 20 plastic sheets type TWPE-16, art. no. 43.00.00.39

Transport trolley for plastic sheets
type TWPE

Transport and storage of plastic cutting plates

Capacity: 14-20 PE sheets, shelf clearance 60 mm
Longitudinal reinforcement: 5 welded-in round tubes Ø 30×2 mm
Transverse frame reinforcement: rectangular tube 40×20×2 mm
Frame construction: Round tube Ø 30×2 mm
Compartment division: round tube Ø 20×1.5 mm with push-through protection Ø 10 mm
Ergonomically favourable push handle, made of Ø 30 mm round tube at the front
Chassis: 2 swivel castors with brakes + 2 fixed castors, Ø 125 mm,
Polyamide wheel (natural), stainless steel wheel housing

Type	Capacity	Dimensions W x D x H in mm	Art.-No. Please mark	PDF
TWPE-10	10 pe cutting boards	600 x 940 x 1000/1150	43.00.00.3443000034	43.00.00.34
TWPE-12	12 pe cutting boards	600 x 1100 x 1000/1150	43.00.00.3543000035	43.00.00.35
TWPE-14	14 pe cutting boards	600 x 1260 x 1000/1150	43.00.00.3643000036	43.00.00.36
TWPE-16	16 pe cutting boards	600 x 1420 x 1000/1150	43.00.00.3743000037	43.00.00.37
TWPE-18	18 pe cutting boards	600 x 1580 x 1000/1150	43.00.00.3843000038	43.00.00.38
TWPE-20	20 pe cutting boards	600 x 1740 x 1000/1150	43.00.00.3943000039	43.00.00.39
Special dimensions			00.00.00.1000000010

We manufacture individually according to customer requirements

Quick request

Other versions on request.

Material

Manufactured from chrome nickel steel 18/10 material no. 1.4301.

The externally visible stainless steel sheet surfaces have a polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as round tube profiles, push handle, etc., have a uniform brushed finish.

Description

The stainless steel transport trolley is the robust solution for the organised storage and safe in-house transport of PE cutting plates. The welded tubular construction retains its shape even when fully loaded; push-through locks reliably hold each plate in position. Manoeuvrable 125 mm castors (2 with brakes) allow you to manoeuvre the trolley easily and stably - even in narrow aisles.

Advantages at a glance

Hygiene first: Made entirely of stainless steel - corrosion-resistant, smooth surface, easy to clean.
Structurally stable & durable: Longitudinal and transverse reinforcements minimise torsion and increase service life.
Neat organisation: shelf clearance 60 mm for defined positioning, push-through safety catch Ø 10 mm prevents slipping out.
Ergonomic for everyday use: Ø 30 mm front push handle for controlled guidance.
Smooth-running & stable: 125 mm castors, 2x steerable with brakes + 2x with fixed fixed castors; polyamide wheels (natural) with stainless steel housings - smooth-running, easy to clean.

Industry-specific benefits

Food processing industry: Supports HACCP & IFS-compliant processes thanks to hygienic materials and easy-to-clean geometries; clear separation and dry storage of plates.
Animal feed industry: Robust, corrosion-resistant design for harsh environments; secure compartmentalisation prevents damage and cross-contamination.
Pharmaceutical industry: Smooth stainless steel surfaces and low-gap design facilitate validatable cleaning processes; defined storage locations create process reliability.
Cosmetics industry: Clean, material-friendly storage - visually and functionally suitable for hygiene-critical zones; roller-supported, particle-saving transport in everyday production.
