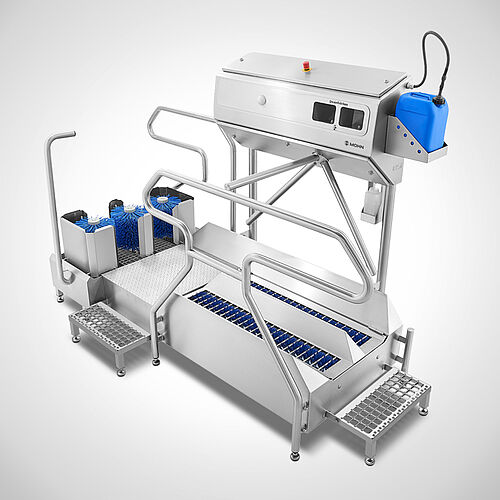

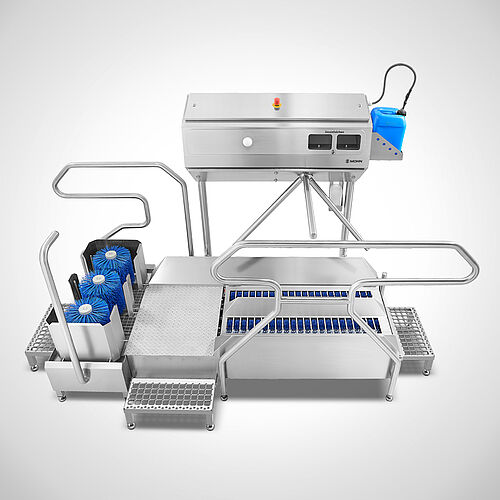

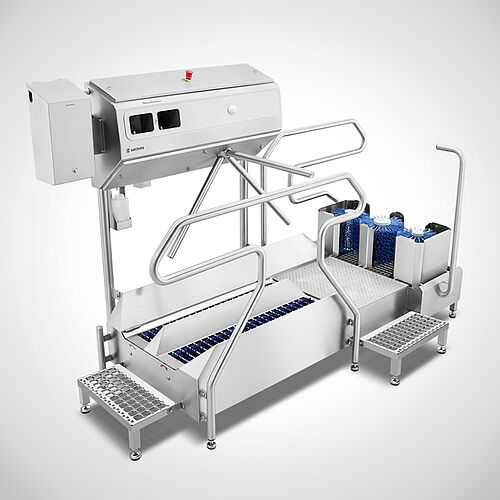

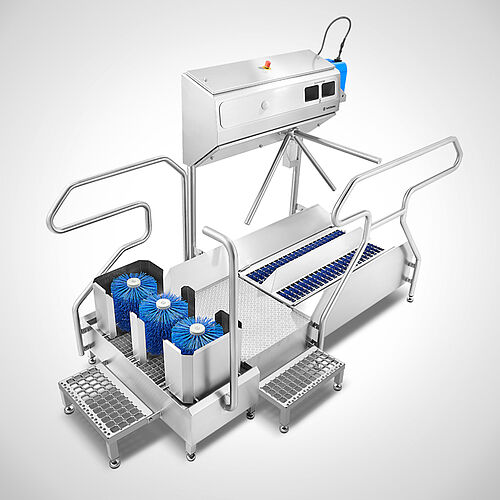

Combiclean-Control "Highline"
Combiclean-Control "Highline"
Hygiene station
Type Combiclean-Control Highline
1-lane, compelled-guided disinfection of soles + boots + disinfection of hands
- Vandalism-proof turnstile (10 years warranty)*
including freely programmable Siemens Logo control unit - 2-hand disinfection unit including tamper-proof sensorics
- Encapsulated IP68 sensor for end position detection of the turnstile
- Boot cleaning module for cleaning the bootlegs
- 3 vertical bootleg cleaning brushes
- Turnstile: way back electrically released, or permanently locked
- Dosage of the application quantity adjustable
- Optical empty-can message by multi-LED
- Spring cap technology for saving water, chemicals and energy costs
- Brushes removable without tools
- Dosing of the application quantity adjustable
- Including can holder
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*for turnstile mechanics
Material
Rustproof stainless-steel 1.4301
Description
The hygiene station type "Combiclean-Control Highline" serves for ideal cleaning and disinfection of soles and for disinfection of hands at a high amount of hygiene-security by means of compelled-guidance.
Two horizontal rotating brushes with high-quality bristles, covered by a rust guarantee a thorough cleaning and resp. disinfection of soles at a minimal consumption of time and energy. By means of a capacitive sensor the cleaning of the boots is activated. After both hands get detected in the openings of the handdisinfection device by means of the two sensors, the turnstile gets activated for one turn.
At a blackout or when the emergency-switch off gets pushed, the turnstile is freely turnable in both directions. The addition of the cleaning and disinfection detergent is automatically made by means of an adjustable dosage system. The brushes are easily dismountable without tools, thereby easy and fast cleaning is ensured.
Passage direction
Left to right
Right to left
Technical Data
| Power supply | 3 x 400 V/N/PE; 50-60 Hz |
|---|---|
| Performance | 1,5 kW |
| Drain | 2" (DN 50) |
| Water connection | 3/4" AG, Mixing water max. 43° C |
| Fusing | 16 A |
Reference Photos
Accessories
Entry-/Exit platform
Type AT-1
Cleaning trolley for brush rollers
Type RWBW
Document tray
Type DA-III
Can container
Type KB-xx A
Can holder
Type KH-CA
Can holder
Type KH
Can holder
Type KH-GA
Can holder
Type KH-GV
Handrail gate
Type GT
Hand rails
Type G-III
Graphic board
Type GBDSpring cap
Spring cap technology for saving water, chemicals and energy costs
Hygienic-Design
Hygienic and easy-to-clean design to avoid contamination.
Splash-guard
Solid splash-guard and side-step protection in hygienic-design
Control-cabinet
Control-cabinet with locking-lever in hygienic-design
Control
High-quality and user-friendly SIEMENS-LOGO control components.
Handrail
Ergonomic handrail in hygienic-design
Footstep
Safety hygiene footstep with anti-slip rust.
Engine-compartment
High-quality components from well-known manufacturers.
Skintop-gland
High-quality stainless steel SKINTOP cable-gland in hygienic-design.
Hand disinfection
Easily accessible dosing unit for service and maintenance
Turnstile
Robust, high-quality
turnstile mechanism.
10 years warranty!
Sensor technology
Electrically released outward and return routes: 2 encapsulated IP68 sensors for end position detection of the turnstile.
