Washing systems for attachment rails (sheets)
Washing systems for attachment rails (sheets)
Baking rails – washing machine
Type VSW
Easily cleaning of baking rails for sheets (bakery)

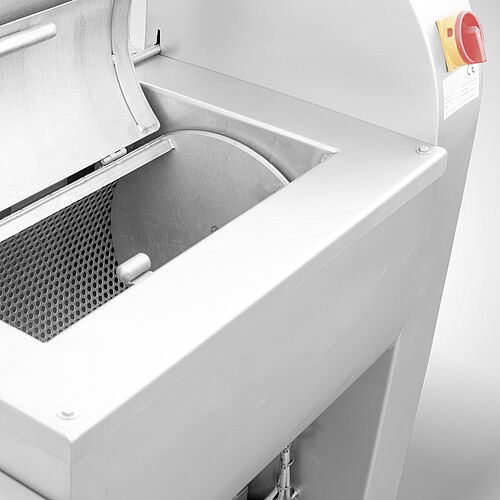

- Drum washer with hood opening
- Performance: 100 - 500 pieces each wash, depending on size (even with different sizes)

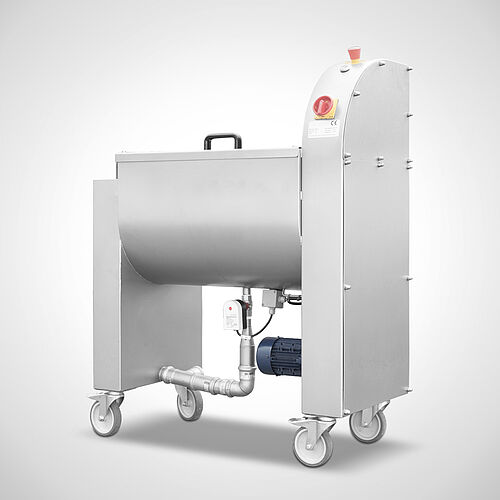

- Stable machine housing, completely welded, low energy consumption
- Recommended washing temperature for optimum, cleaning results: 55°C
- 10 kW Electric heater for heating optionally available
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
* Depending on rail length (per wash cycle)
Material
Made of stainless steel 1.4301
Description
Our baking rail washing system enables thorough cleaning of 100 to 500 baking rails per washing cycle for cut sheets in different lengths. The machine has been especially developed for businesses which have to clean a large number of cut sheets. For residue-free cleaning of your cut sheets, we recommend our pass-through washing system.
Workflow:
- Placing the machine next to the cake cutter or in the washing room
- Open housing and drum cover
- Insert rails
- Close drum cover and housing
- Start cleaning program
- Program sequence is automatic (cleaning time: approx. 40-60 minutes)
- Remove clean and almost dry rails (Drum moves into right position for removal)
Option
- Heating with 10 kW power (with cold water connection), Art. no. 49.90.00.93
Technical Data
| Power supply | 230 V - 50-60 Hz; 0,2 kW |
|---|---|
| Performance | 100-500 pieces of baking rails (batch) |
| Drain | DN 50 |
| Water connection | 1/2“, mind. 55°C |
| Water consumption | 160 l/ washing cycle |
| Power rating electric heating (10 kW) | 400 V - 50-60 Hz; 10,2 kW (only with optional 10 kW heating element) |
