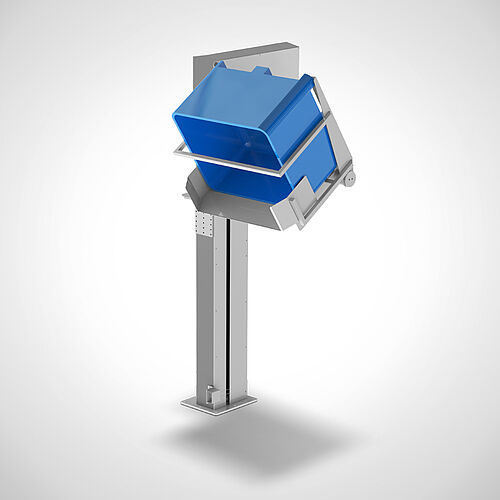

Single column lift and tilting device
Type HKV-GB 1S
Suitable for lifting and tilting Big-Boxes up to 750 kg
- Robust industrial design guarantees long service life
- Nearly complete made of stainless steel
- Stationary 1-column design for floor mounting
- Suitable for large boxes (big boxes) with dimensions 1200 x 1000 x h 800 mm
- Various tilting heights and 4 different tilting directions available
- Maximum payload 750 kg (inclusive bin), optional 1000 kg available on request
- Emptying via the narrow side of the container or large box
- Hygienic design control box incl. operating elements on lifting column at ergonomic height
- Optical chain tension indicator
- High pressure cleaning resistant, safety class IP 65
- Mechanical safety precautions: Special chain break protection
- Standard execution type HKV-GB-1S-x-ST: chain nickel-plated (20 B-1)
- Highline execution typeHKV-GB-1S-x-HL: chain made of stainless steel
ADVANTAGE: No relubrication of grease necessary + chemical resistant)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Special executions on request possible.
Material
Nearly complete made of stainless steel 1.4301, microplasted stainless steel surface
The following parts are not made of stainless steel: Chain, tipping roller, gear motor, control and small parts.
Description
The execution of the lifting and tilting device is determined by the type and viscosity of the bulk material and, if necessary, extended by special chutes, hoppers, lift forks or lifting platforms. Thus, the tilting devices can be adapted for almost any application.
The optionally available safety fence is required from a tilting height of 2300 mm. From a tilting height of 2600 mm, it is necessary to additionally secure the lifting and tilting device to the wall or lid on site.
In accordance with DIN EN ISO 13854, the safety distance between the container in the tilted state and the device to be loaded (e.g. hopper of a packaging machine or tumbler) is 120 mm.
Special drop safety
The fall arrester is made of stainless steel and consists of a 4 mm thick U-profile rail with rectangular fixing holes and a pressure spring activated 25 mm fork.
The fall protection comes into operation for breaking the chain, or if the chain sags. When that happens, the compression spring is released and the fork turns into the fixing holes and Brind the load to an immediate stop.
Unlike conventional lifting-tilting a service call is not necessary after initiation of mechanical safety device.
Advantages
- Hygienic design version: lifting column and control box
- Mechanical chain breakage protection, spring-operated
- Control box incl. operating elements mounted at service-friendly height by means of spacers
- Dead man's switch
- Chain engagement protection made of stainless steel plate
- Optical chain tension indicator
=> ADVANTAGE: immediate fault detection
=> ADVANTAGE: higher machine availability
=> ADVANTAGE: easy tensioning of the chain
=> ADVANTAGE: Simple, quick visual inspection - Predetermined breaking point at the chain deflection
=> ADVANTAGE: Prevention of major damage - Chain: marking neutral (no flags f. sensor or similar)
=> ADVANTAGE: Easy replacement of the chain
=> ADVANTAGE: No adjustment of the end positions necessary - Idler pinion made of stainless steel, with maintenance-free bearing
=> ADVANTAGE: Increased service life compared to plastic
=> ADVANTAGE: No need for maintenance and lubricants - Separate inspection openings
- => ADVANTAGE: Allows quick maintenance and repair
Executions of lifting and tilting devices (EXAMPLE)
Technical Data
Power supply | 3x 400 V; 50 Hz |
---|---|
Performance | 1,5 kW |
Protection class | IP 65 |
Loading capacity | 750 kg (including big box) |
Lifting speed | approx. 5 m/min |
Tilt angle | 120° |
Adjustability | 2-stage in 150 mm steps (system defaults to max. tipping height!) |
Maximum power | approx. 15 strokes/ h |
