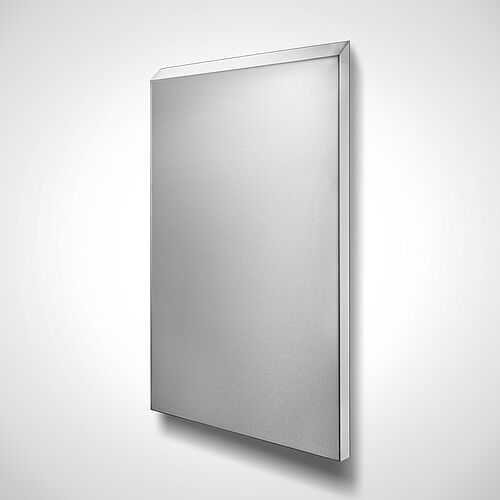

Wall-mounted hygiene rear-wall Type H-RW 96-110, art. no. 11.00.00.39

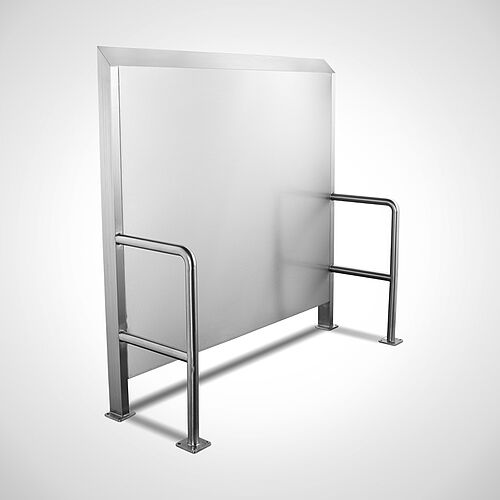

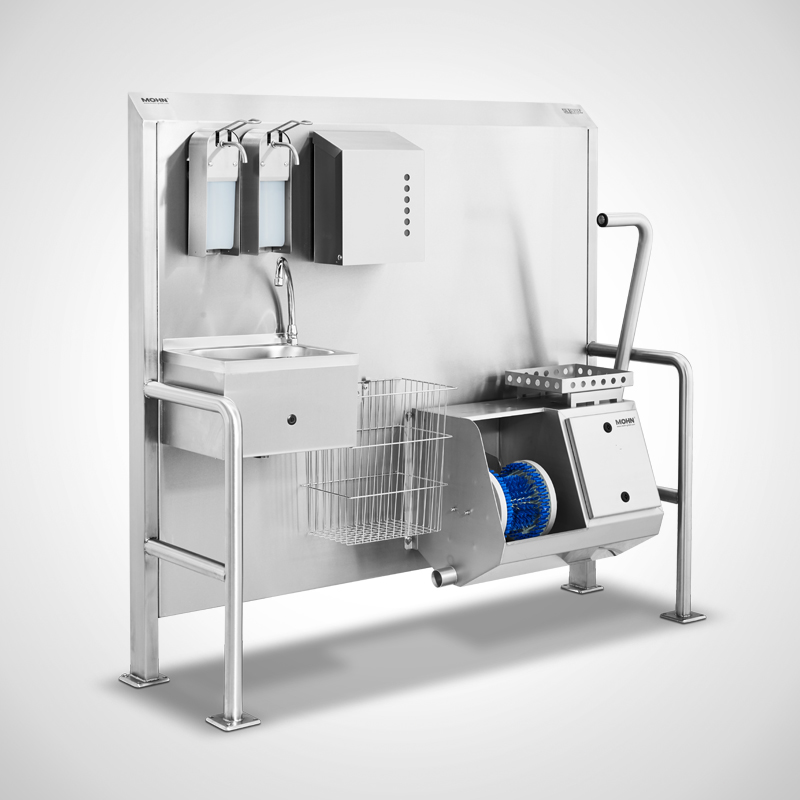

Hygiene rear-wall with feet frame Type H-RW/S 157-150, art. no. 11.00.00.36

Simply create your hygiene wall yourself - select the equipment you require under Accessories

Simply create your hygiene wall yourself - The result of your hygiene wall is something to be proud of.

Hygiene rear-walls
Type H-RW

HIGH-QUALITY STAINLESS STEEL BACK WALLS WITH "SLOPING ROOF"

Rear wall with sloping roof (hygienic design)

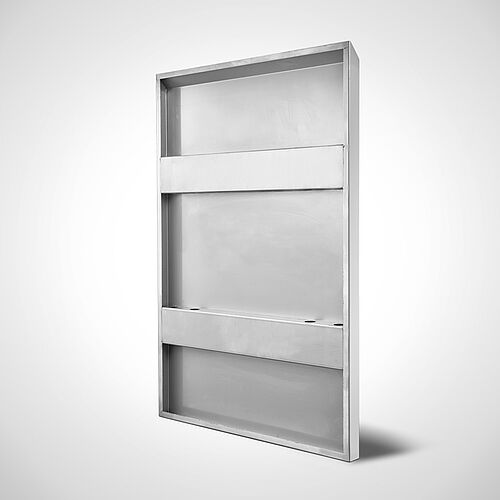

Reinforced on the back with 2 hat profiles on the long side
2 versions - wall-monunted or feet
Wall-mounted version with mounting rail as well
left and right with 2 holes each in all beams, ø31.7mm

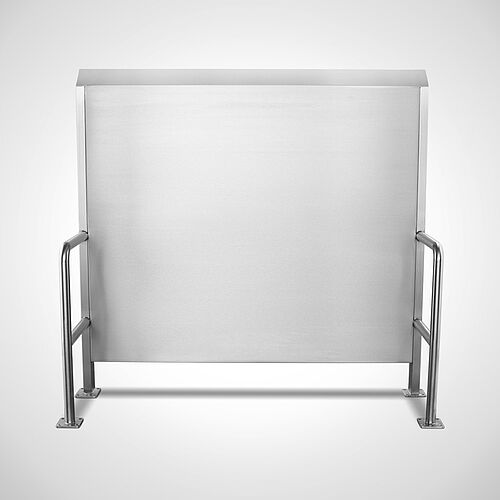

Feet frame with round tube profile railing Ø 42.4 mm
Railing height: 800 mm, knee strap at 400 mm height
Ground clearance: 160 mm
Feet with 4 height-adjustable floor fastening straps

Type	Version	Dimensions W x D x H in mm	Art.-No. Please mark	PDF
H-RW 90-110	Wall-mounted	900 x 50 x 1100/1150	11.00.00.2711000027	11.00.00.27
H-RW 135-110	Wall-mounted	1350 x 50 x 1100/1150	11.00.00.2811000028	11.00.00.28

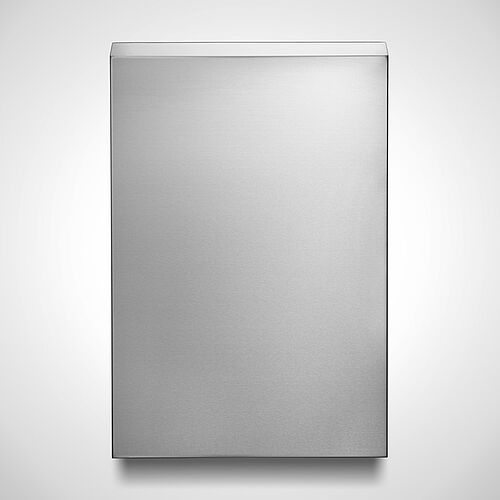

H-RW 76-110	Wall-mounted	760 x 50 x 1100/1150	11.00.00.2911000029	11.00.00.29
H-RW 96-110	Wall-mounted	960 x 50 x 1100/1150	11.00.00.3911000039	11.00.00.39
H-RW/S 157-170	Feet	1570 x 490 x 1700	11.00.00.3611000036	11.00.00.36
Special dimensions			00.00.00.1000000010

Other dimensions on request!
We manufacture individually according to customer requirements

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Delivery without accessoires.

Material

Rustproof stainless steel 1.4301

Type H-RW

Wall-mounted version with mounting rail as well left and right with 2 holes each in all beams, ø31.7mm

TypE H-RW/S

Feet frame with round tube profile railing Ø 42.4 mm
Railing height: 800 mm, knee strap at 400 mm height
Ground clearance: 160 mm, feet with 4 height-adjustable floor fastening straps
