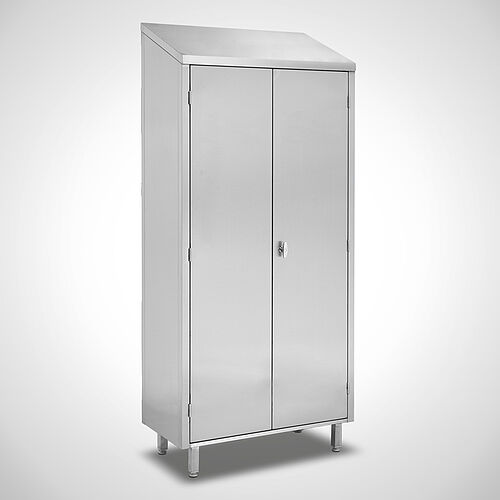

Clothes cabinet Type KS-S 90-50, art. no. 18.00.04.59

Clothes cabinet Type KS-W 90-50, art. no. 18.00.04.49

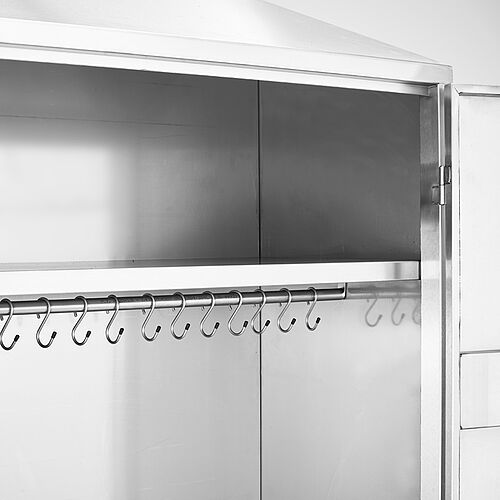

Interior: Intermediate floor, below clothes with rail and sliding hooks

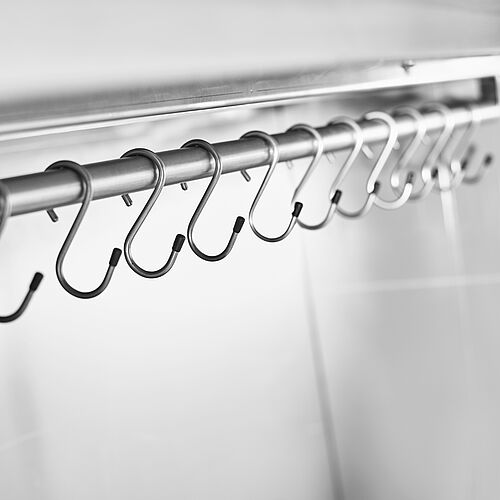

Interior: Clothes with rail and 13 sliding hooks

Clothes cabinet
Type KS-S /-W

our fixed welded industrial execution with sliding hooks

Fixed welded stainless steel version
2 different executions with feet or wall-mounted
Cupboard body, closed on 3 sides
Design in 1.0 mm material strength
Sloping roof, 200 mm higher at the back, in “Hygienic design“
1 or 2 leaf doors on the operator side depends on the width
Doors lockable by means of T-handle including profile cylinder lock
Interior with 1 intermediate floor, below clothes with rail and 13 sliding hooks
Wall-mounted execution with wall fixing rail
or 4 height-adjustable plastic screw feet (+/- 30 mm)
Standard ground clearance: 150 mm (only feet)

Type	Version	Doors	Dimensions W x D x H in mm	Art.-No. Please mark	PDF
Feet
KS-S 50-50	Feet	1 leaf door	500 x 500 x 1850/ 2050	18.00.04.5518000455	18.00.04.55
KS-S 60-50	Feet	1 leaf door	600 x 500 x 1850/ 2050	18.00.04.5618000456	18.00.04.56
KS-S 70-50	Feet	2 leaf doors	700 x 500 x 1850/ 2050	18.00.04.5718000457	18.00.04.57
KS-S 80-50	Feet	2 leaf doors	800 x 500 x 1850/ 2050	18.00.04.5818000458	18.00.04.58
KS-S 90-50	Feet	2 leaf doors	900 x 500 x 1850/ 2050	18.00.04.5918000459	18.00.04.59
KS-S 100-50	Feet	2 leaf doors	1000 x 500 x 1850/ 2050	18.00.04.6018000460	18.00.04.60
KS-S 110-50	Feet	2 leaf doors	1100 x 500 x 1850/ 2050	18.00.04.6118000461	18.00.04.61
KS-S 120-50	Feet	2 leaf doors	1200 x 500 x 1850/ 2050	18.00.04.6218000462	18.00.04.62
Wall-mounted
KS-W 50-50	Wall-mounted	1 leaf door	500 x 500 x 1850/ 2050	18.00.04.4518000445	18.00.04.45
KS-W 60-50	Wall-mounted	1 leaf door	600 x 500 x 1850/ 2050	18.00.04.4618000446	18.00.04.46
KS-W 70-50	Wall-mounted	2 leaf doors	700 x 500 x 1850/ 2050	18.00.04.4718000447	18.00.04.47
KS-W 80-50	Wall-mounted	2 leaf doors	800 x 500 x 1850/ 2050	18.00.04.4818000448	18.00.04.48
KS-W 90-50	Wall-mounted	2 leaf doors	900 x 500 x 1850/ 2050	18.00.04.4918000449	18.00.04.49
KS-W 100-50	Wall-mounted	2 leaf doors	1000 x 500 x 1850/ 2050	18.00.04.5018000450	18.00.04.50
KS-W 110-50	Wall-mounted	2 leaf doors	1100 x 500 x 1850/ 2050	18.00.04.5118000451	18.00.04.51
KS-W 120-50	Wall-mounted	2 leaf doors	1200 x 500 x 1850/ 2050	18.00.04.5218000452	18.00.04.52
inputfield
Special dimensions				00.00.00.1000000010

We manufacture individually according to customer requirements

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Description
Reference Photos

Other executions on request.

Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
