Drinking fountains

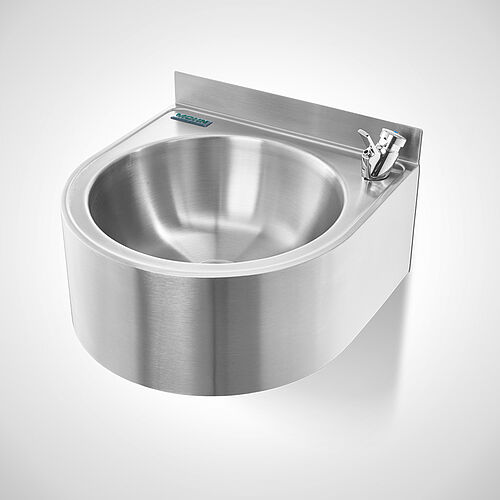

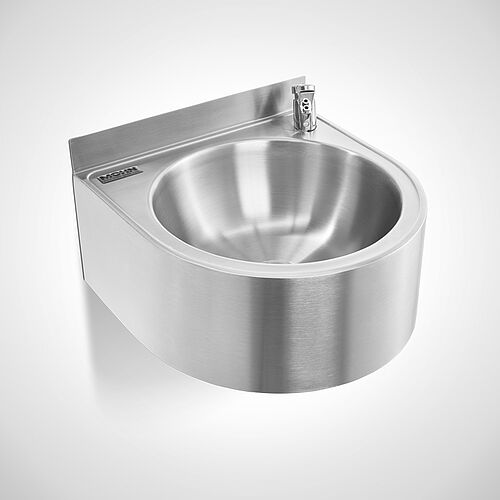

Drinking fountain
Type TB-W

Hygienic, cup-free drinking straight from the beam

  • Wall-mounted basin for connection to cold water pipe
  • Incl. drinking fitting for triggering a curved water jet
  • Sieve drain valve
  • Bottom plate removable for maintenance
  • Inner wall foamed up for sound insulation

TypeDimensions
W x D x H in mm
PDF
TB-W370 x 360 x 160/ 21099.10.01.60
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Rustproof stainless steel 1.4301, Surface polished or brushed


Description

Cold water from the pipe is usually cool enough to drink. However, if the drinking fountain is used sparingly or placed in heated rooms, we recommend the versions with integrated cooling.

The pillars of the drinking fountains are made of brushed V2A stainless steel (material 1.4301).



Technical Data

DrainR 1 1/2"
Water connectionR 1/2"
Weight3,5 kg
