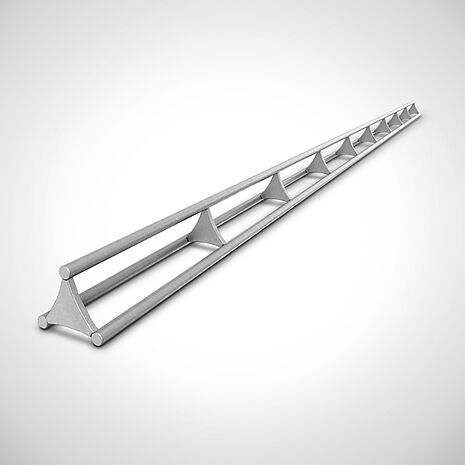

Smoke stick type RS-E-D 900, art. no. 40.00.21.00 (stainless steel wire version) Smoke stick type RS-E-D 900, art. no. 40.00.21.00 (stainless steel wire version)
Smoke stick type RS-E-D 1000, art. no. 40.00.21.01 (stainless steel wire version)Smoke stick type RS-E-D 1000, art. no. 40.00.21.01 (stainless steel wire version)

Smoke sticks
Type RS

Smoke-sticks in different executions

  • Various qualities (weights) and designs
  • Available lengths: 800, 900 or 1000 mm
  • Star profile with smooth or notched design on all sides
  • Star profile version also available with welded hooks
  • Hygienic version available in polished stainless steel (hygienic design)
  • Round tube version with open or closed ends
  • Braced design made of 5 mm stainless steel round steel

TypeVersionLengthPDF
Length: 1000 mm
 RS-A 1000Aluminium 1000 mm40.00.01.00
 RS-E 1000Stainless steel 1000 mm40.00.01.05
 RS-EG 1000Stainless steel - notched 1000 mm40.00.01.45
 RS-E 1000 5HStainless steel-5 hooks 1000 mm40.00.01.06
 RS-E 1000 6HStainless steel-6 hooks 1000 mm40.00.01.66
 RS-E 1000 7HStainless steel-7 hooks 1000 mm40.00.01.67
 RS-HD 1 FLAT 1000Stainless steel - smooth 1000 mm40.00.01.42
 RS-HD 2 STANDARD 1000Stainless steel - smooth 1000 mm40.00.01.48
 RS-HD 3 SLIM 1000Stainless steel - smooth 1000 mm40.00.01.47
 RS-ER-O 1000Stainless steel - tubular / ends open 1000 mm40.00.03.74
 RS-ER-G 1000Stainless steel - tubular / ends consistent welded 1000 mm40.00.03.76
 RS-E-D 1000Stainless steel - wire Ø 5 1000 mm40.00.21.01
Length: 900 mm
 RS-A  900Aluminium   900 mm40.00.01.01
 RS-E   900Stainless steel   900 mm40.00.01.15
 RS-EG  900Stainless steel - notched   900 mm40.00.01.44
 RS-HD 1 FLAT 900Stainless steel - smooth  900 mm40.00.01.59
 RS-HD 2 STANDARD 900Stainless steel - smooth  900 mm40.00.01.60
 RS-HD 3 SLIM 900Stainless steel - smooth  900 mm40.00.01.61
 RS-E-D 900Stainless steel - wire Ø 5  900 mm40.00.21.00
Length: 800 mm
RS-A 800Aluminium   800 mm40.00.01.02
RS-E 800Stainless steel   800 mm40.00.01.57
RS-EG 800Stainless steel - notched   800 mm40.00.01.62
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Made of aluminium resp. stainless steel 1.4301



1) Smoke sticks made of aluminum (AL MG SI 0,5 F25)

  • Star-profile, heavy version
  • Lenght of sticks: 900 und 1000mm (Tolerance: -2,00/+0,00mm)
  • Weight:    (ca. 295 gr.): 1000 mm length
                    (ca. 260 gr.):   900 mm length
  • Layer width: 29 mm
  • Height: 25,85 mm
  • Material thickness of bar:  1,2 mm
  • Diameter of the end of bar: 5,5 mm
  • Payload: 40 kg / linear meters (regular load balancing)



2) Smoke sticks made of stainless steel 1.4301 (X5CrNi18-10, AISI 304, V2A)

  • 3-edge star-profile, tubular Ds 25 x 1,0 mm resp. Ds 25 x 1,5 mm (dependig on execution)
  • Tubular-end hygienic closed-welded
  • Different versions like smooth, one-sided notched, all-sided notched or with welded hooks
  • Welded hooks (Ø 5mm, blunt), length 42 mm with 25 mm overhang
  • Lenght of sticks: 900 und 1000mm (Tolerance: -1,00/+0,00mm)
  • Weight:    (ca. 600 gr.): 1000 mm length
                    (ca. 590 gr.):   900 mm length
                    (ca. 450 gr.):   800 mm length



3) HD-smoke sticks made of stainless steel 1.4301, high gloss polished (X5CrNi18-10, AISI 304, V2A)

  • Star-profile in hygienic design
  • Smoke sticks end: hygienic spiky (type RS-HD2 and RS-HD3 ) or dulled (type RS-HD1 )
  • Surface: smooth high gloss polished
  • Lenght of sticks: 800, 900 und 1000mm (Tolerance: -2,00/+0,00mm)
  • Layer width: 24 mm ( RS-HD 1/ RS-HD2 ) resp. 15 mm ( RS-HD 3 )
  • Diameter of sticks:  27 mm ( RS-HD 1/ RS-HD2 ) resp. 13 mm ( RS-HD 3 )
  • Weight type RS-HD2 (ca. 433 gr.): 1000 mm length
                type RS-HD1 (ca. 433 gr.): 1000 mm length
                type RS-HD3 (ca. 330 gr.): 1000 mm length
  • Payload: 50 kg / linear meters (regular load balancing) for type RS-HD2/ RS-HD1
                      25 kg / linear meters (regular load balancing) for type RS-HD3


Quality features

  • From a tube to a star profile, thereby very hygienic, since no weld seam / fold seam
  • Hygienic end caps: patented, tightly welded.Thereby no damage to the intestines when hanging up
  • Highly polished surface, therefore less effort as regards: water, waste water, detergents and energy consumption
  • Extremely long life span against aluminum smoke sticks


4) Smoke sticks in round tube made of stainless steel 1.4301 (X5CrNi18-10, AISI 304, V2A)

  • Tubular Ds 30 x 2,0 mm
  • Tubular ends: open (type RS-ER-O 1000) or consistent welded (type RS-ER-G 1000)
  • Length of stick: 1000mm (Tolerance: -2,00/+0,00mm)


5) Smoke sticks made of round steel wire in stainless steel 1.4301 (X5CrNi18-10, AISI 304, V2A)

  • Strut construction made of 3 solid round bars, Ø 5 mm
  • 10 strut connectors made of 3 mm thick flat steel
  • Delivery length: 900 mm or 1000 mm (tolerance: -1.00/+1.00 mm)
  • Leg dimension: approx. 30 mm
  • Weight: approx. 470 grams or 520 grams
  • Load capacity 25 kg

Reference Photos

Smoke-stick with hooks for ham
