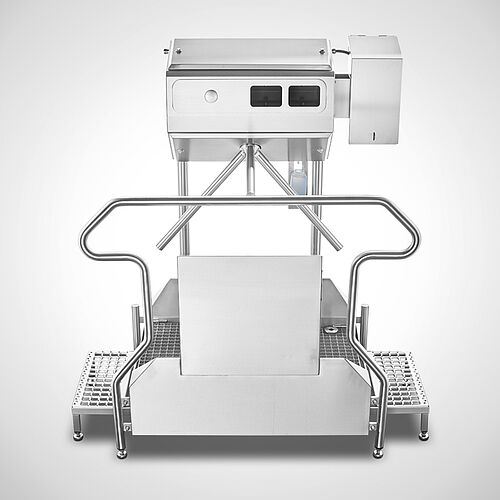

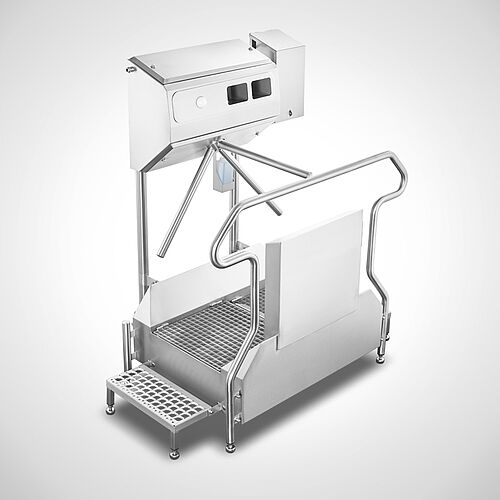

Hygiene Station for sole disinfection with hand disinfection device Type Desi-Check DW-1100 R Highline Hygiene Station for sole disinfection with hand disinfection device Type Desi-Check DW-1100 R Highline

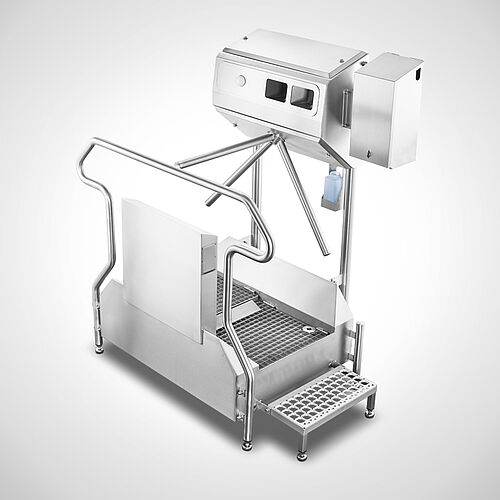

Hygiene Station for sole disinfection with hand disinfection device Type Desi-Check DW-1100 R Highline Hygiene Station for sole disinfection with hand disinfection device Type Desi-Check DW-1100 R Highline
Hygiene Station for sole disinfection with hand disinfection device Type Desi-Check DW-1100 R Highline Hygiene Station for sole disinfection with hand disinfection device Type Desi-Check DW-1100 R Highline
Hygiene Station - Disinfection zone and drip zone (Hygiene station Type Desi-Check DW-1100 R Highline) Hygiene Station - Disinfection zone and drip zone (Hygiene station Type Desi-Check DW-1100 R Highline)

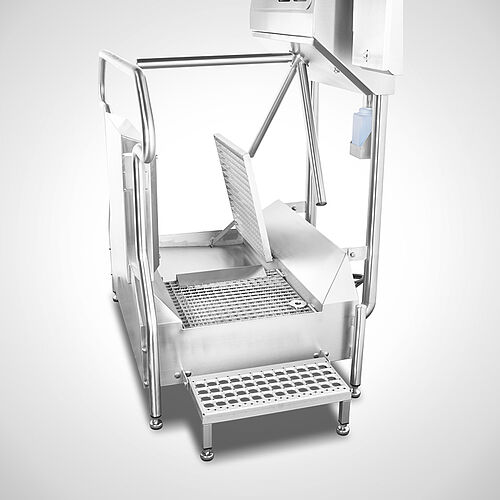

Hygiene Station - Grid of drip zone - opened (Hygiene Station Type Desi-Check DW-1100 R Highline) Hygiene Station - Grid of drip zone - opened (Hygiene Station Type Desi-Check DW-1100 R Highline)

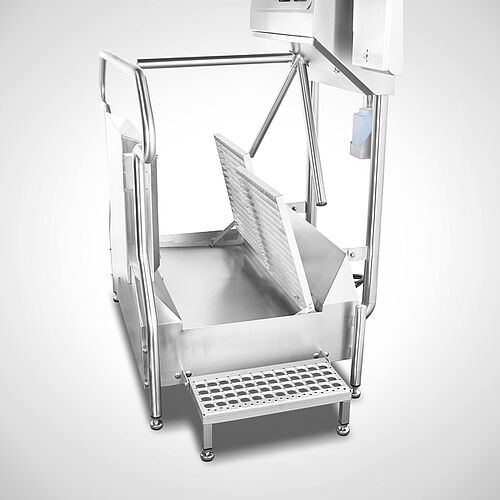

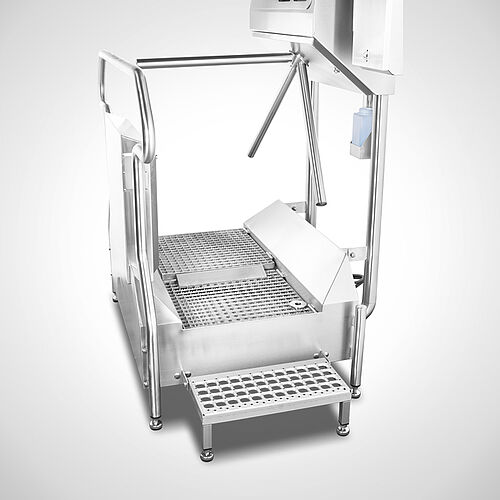

Grid of disinfection zone + drip zone - opened (Hygiene Station Type Desi-Check DW-1100 R Highline) Grid of disinfection zone + drip zone - opened (Hygiene Station Type Desi-Check DW-1100 R Highline)

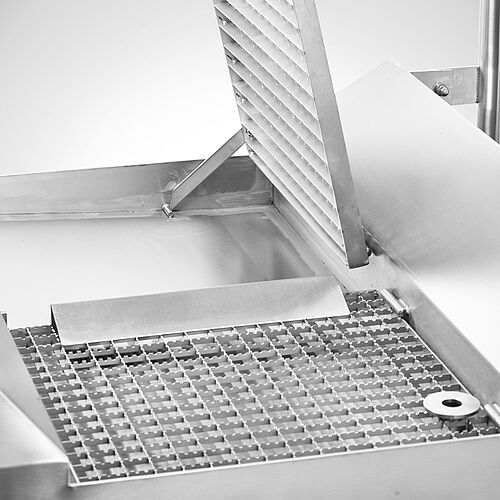

Hygiene Station, Detail: Grid of drip zone - opened (Hygiene Station Type Desi-Check DW-1100 R Highline) Hygiene Station, Detail: Grid of drip zone - opened (Hygiene Station Type Desi-Check DW-1100 R Highline)

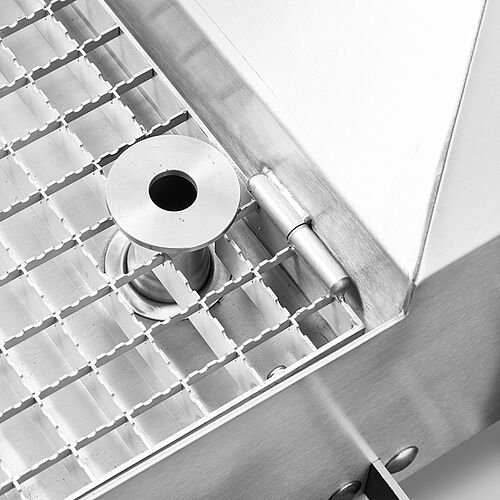

Hygiene Station, Detail: Disinfection basin with stand-pipe-valve for drain Hygiene Station, Detail: Disinfection basin with stand-pipe-valve for drain

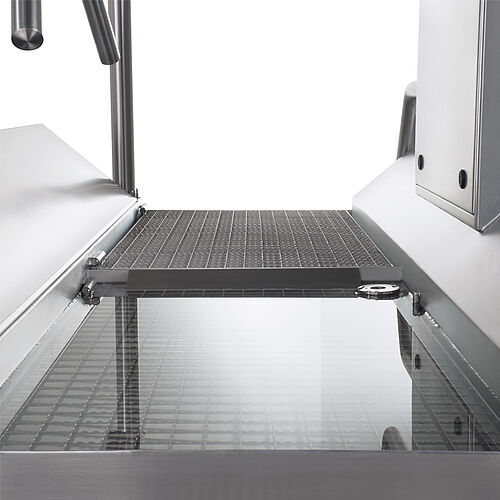

Hygiene Station, Detail: Disinfection basin with disinfection zone and drip zoneHygiene Station, Detail: Disinfection basin with disinfection zone and drip zone

Hygiene Station
Type Desi-/Soap-Check Highline

1-lane, controlled disinfection of soles

  • "Hygienic-Design"
  • Highline version with vandalism-proof turnstile (10 years guarantee) *
  • SIEMENS LOGO Control, free programmable
  • 2-hand automatic disinfection dispenser including tamper-proof sensorics
    Optionally: Automatic 2-hand soap dispenser.
  • Encapsulated IP68 sensor for end position detection of the turnstile
  • Turnstile: way back electrically released or permanently blocked
  • Automatic refreshment of disinfectant automatically regulated (adjustable)
  • Grid filtable, thereby easy and fast cleaning possible
  • Slip-resistant, movable stainless steel rust
  • Stand-pipe-valve for draining of disinfectant
  • Dosage of the application quantity adjustable
  • Optical empty-can message by multi-LED

TypeVersionLength mm
DDB*		Length mm
ATZ*		Dimensions
W x D x H in mm		ComparePDF
Soap-Check DW-1100 R HighlineSoap dispenser5505501700 x 1100 x 180021.00.00.0621.00.00.06
Soap-Check DW-1500 R HighlineSoap dispenser7507502100 x 1100 x 180021.00.00.0721.00.00.07
Soap-Check DW-2000 R HighlineSoap dispenser100010002600 x 1100 x 180021.00.00.0821.00.00.08
Desi-Check DW-1100 R HighlineDisinfection dispenser5505501700 x 1100 x 180021.00.00.0921.00.00.09
Desi-Check DW-1500 R HighlineDisinfection dispenser7507502100 x 1100 x 180021.00.00.1021.00.00.10
Desi-Check DW-2000 R HighlineDisinfection dispenser100010002600 x 1100 x 180021.00.00.1121.00.00.11
Special dimensions
Face-Checkpoint Type FCP-HS  16100019
Splash wall protection with spacer  22-63817
* DDB= Walk-through disinfection basin/ ATZ=draining zone
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
690
447
8
Show Lightbox Compare
Comparedata

*for turnstile mechanics



Material

Rustproof stainless steel 1.4301, surface brushed





Executions

Desi-Check-HD= Pass-through sole-disinfection with handdisinfection and turnstile
Desi-Check-HS= Pass-through sole-disinfection with Soapdispenser and turnstile


Technical Data

Power supply1 x 230 V/N/PE; 50/ 60 Hz
Performance0,2 kW
Drain2" (DN 50)
Water connection3/4" AG, Mixing water max. 43° C

Reference Photos

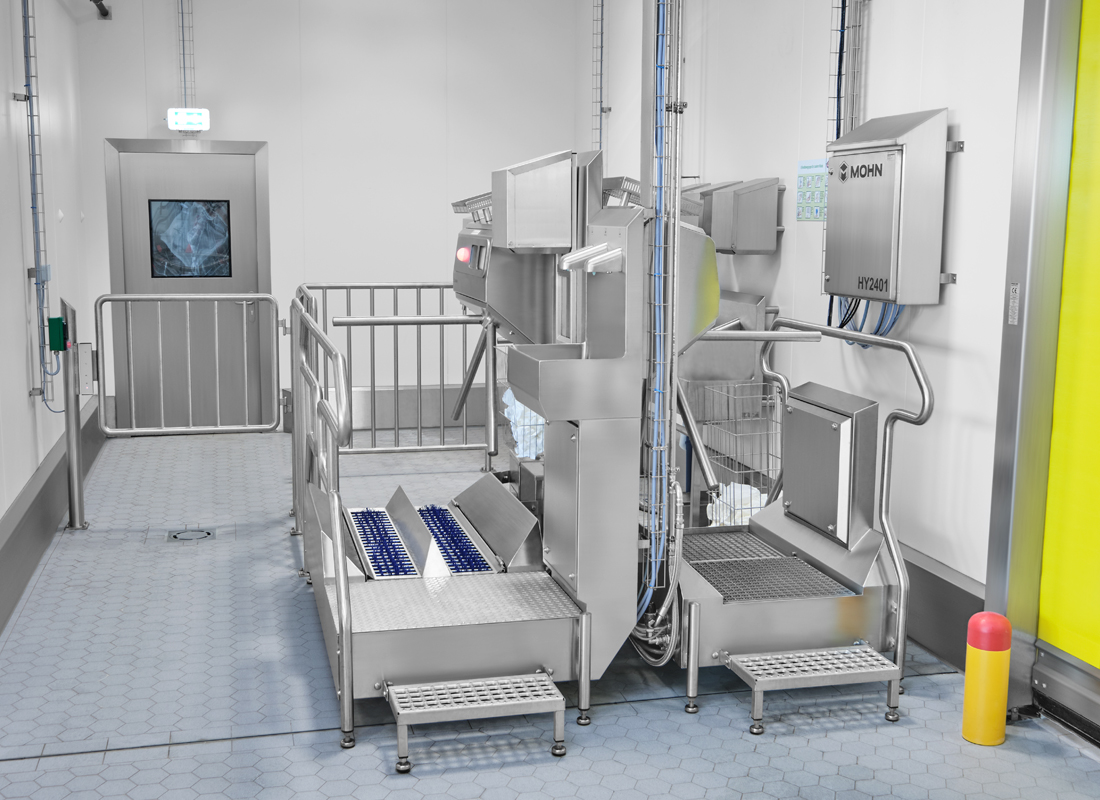

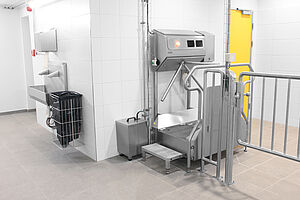

Staff hygiene stations (entrance and exit) - Check-In-Station II Highline and Desi-Check Highline, ID 18-62583
Hygiene station Type Soap-Check-DW 1100 Highline, ID 18-62583

Video

Compact hygiene station type Desi-Check Highline within a personal hygiene station planned in a room.
Compact hygiene station type Desi-Check Highline within a personal hygiene station planned in a room.

Accessories

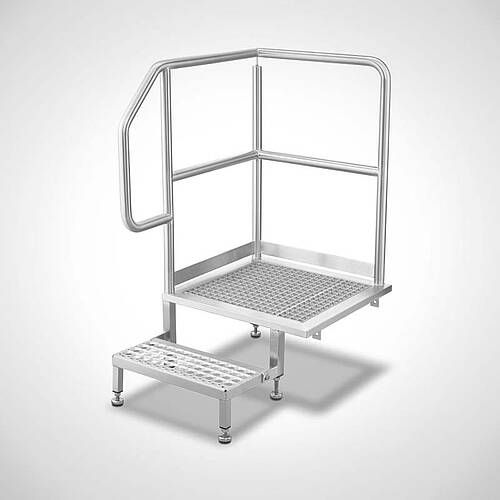

Entry-/Exit platform
