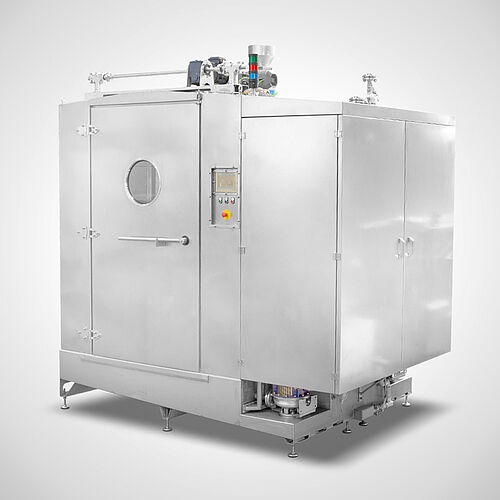

Cabin washing system
Type KWA-UDT
For cleaning smoke house trolleys, oven racks and other items to be washed
- Hourly output approx. 8-12 batches, depending on the degree of soiling (up to 24 H-shape or Z-shape smoke house trolleys)
- Double-walled, soundproof and heat insulated Machine housing made of one piece and completely welded
- Stable, stainless steel door, double-walled with 3 tumblers and safety switch monitoring
- Intensive washing and low consumption of chemicals due to self-cleaning “Crossflow” round hole nozzle pipes with drive
- Large-volume washing tank made of 4-6 mm stainless steel sheet (content approx. 1,000 ltr.) with large filter surface to take up high dirt freights
- Tank heating via 20 kW electrical heating or direct / indirect steam heating

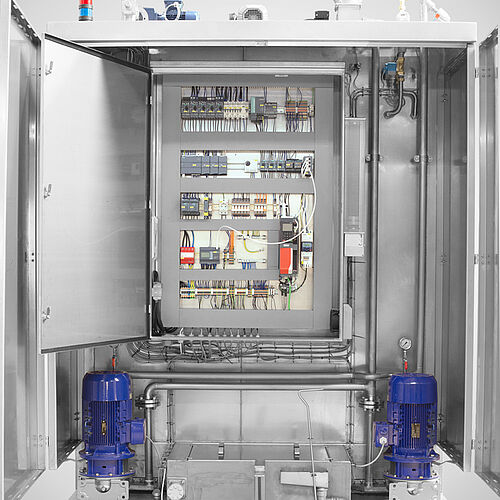

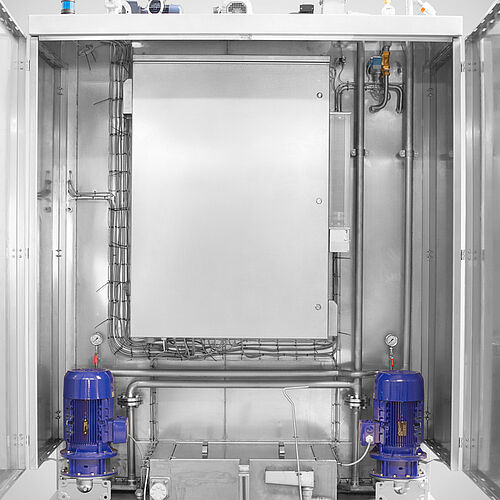

- 2 strong washing pumps with 7.5 kW output each, high circulation, high pressure

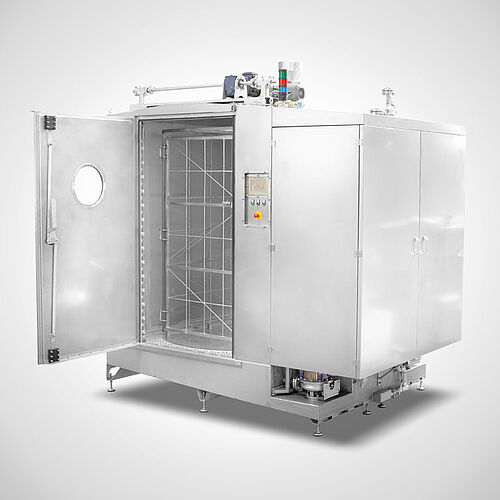

- Large washroom, platform diameter 1600 mm to accommodate different items to be washed, platform rotates per minute 2.5 to 3 times
- Rotary plate with stronger drive on request for centrifugal drying of the items to be washed (type KWA-UDT-Dry)
- Maintenance-prone hose connections as well as vulnerable up and down movements are dropped, and the washing system is 100 % self-cleaning
- Integrated vapour exhaust on the machine roof 1,500m³ at 500 Pa
- Depending on the installation situation, mounting of the machine takes place in the floor by means of a pit. Alternatively, on the
floor with an infeed slope, or on floor level with stand-alone tank. (Pump sump in the floor is required!) - Optional with individual take-up trolley for customer-specific items to be washed
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Rustproof stainless steel 1.4301
Dimensions with lateral tank
w 2530 x d 1858/ 3075 x h 2475/ 3000 mm
Possible items to be washed
- Smoke house trolleys
- Meat bins
- Oven rack
- Pallet stacks
- 120 ltr. or 240 ltr. waste container
- Pallet crates
- Knife basket trolley
- and much more
Options
- Direct tank heater via steam Article no. 11.10.02.75
- Indirect tank heater via steam Article no. 11.10.02.76
- Hot water or thermal oil heat exchanger for washing tank Article no. 11.10.02.81
- 10 kW electric boiler for heating the flushing water Article no. 11.10.02.77
- 20 kW electric boiler for heating the flushing water Article no. 11.10.02.79
- Steam heat exchanger to heat the final rinsing water Article no. 11.10.02.78
- Waste water heat exchanger for fresh water heating Article no. 11.10.02.80

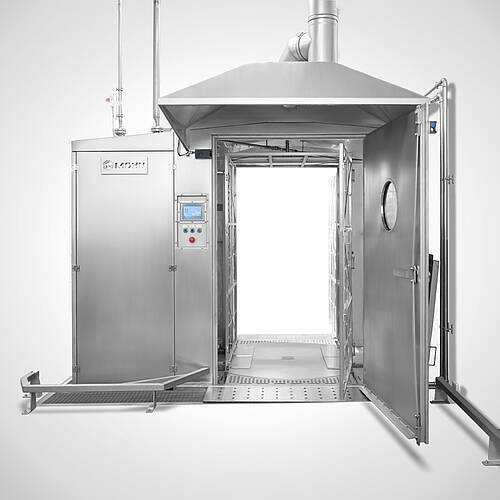

- Two-door machine for zone separation, clean/unclean Article no. 11.10.02.82
Technical Data
Power supply | 3x 400 V/ N/ PE |
---|---|
Drain | DN 50 (discharge in bottom drain) |
Water connection | 3/4“, temp. 12° C, 1-6 bar |
Tank capacity | approx. 1000 Ltr. |
Compressed air supply | 1/4“ < 100 l/ h (for steam or hot-water control valve) |
Exhaust air | DN 250 (1,500 m3/ h runs shorty time-controlled to batch start and end) |
Hot water connection (option) | 1/4“ < 100 l/ h (for steam or hot-water control valve) |
Steam connection (option) | 3/4”, 1-6 bar (direct or indirect) |
Heating power | 20 kW |
Power rating | 16 kW (plus 20 kW with electrical heating in the tank) |
Video
Cabin washing machine in the baking industry
Cabin washing machine in the baking industry
Cabin washing machine in the baking industry

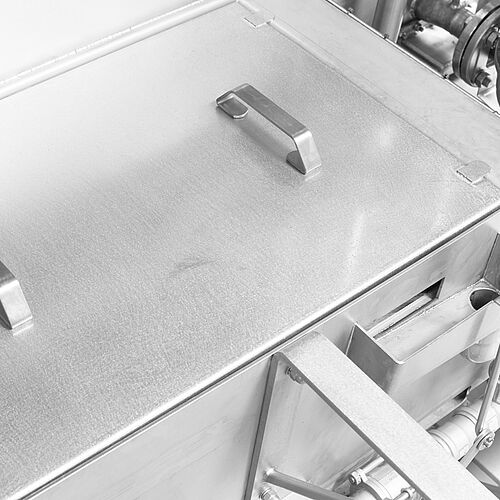

Washing tank
Large-volume wash tank (capacity approx. 1000 liters) with an inclined tank bottom for easy cleaning
