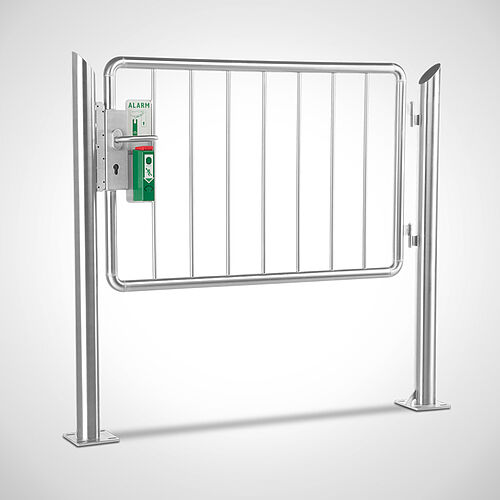

Stainless steel handrail gate type GT-III-1000 Left suitable for escape routes with door guard, Art. no. 39.00.10.07

Handrail gate
Type GT

Optionally as escape route gate with anti-panic locking system and door guard

Hygienic, cleanly welded pipe profile construction
Design with vertical braces
3 different gate types and clear passage widths available
Passage clearance width for up to 200 employees according to ASR A2.3*
Hinge: Opening direction LEFT or RIGHT
Door handle both sides with knob made of rustproof stainless steel
Standard mortise lock without profile cylinder
Gate clearance dimensions 875, 1,000 & 1,200 mm (special widths on request)
Standard height: 1,290 mm (special heights on request)

Type	Version	Opening direction	Number of persons after ASR*	Escape width in mm	Compare	Art.-No. Please mark	PDF
Escape width: 875 mm
GT-875/T1-L	Wall fitting with hinge - standing tube pillar with lock case	Hinge, left-hand	up to 5	875 mm	39.00.10.14	39.00.10.1439001014	39.00.10.14
GT-875/T1-R	Wall fitting with hinge - standing tube pillar with lock case	Hinge, right-hand	up to 5	875 mm	39.00.10.15	39.00.10.1539001015	39.00.10.15
GT-875/T2-L	standing tube pillar with hinge - wall fitting with lock case	Hinge, left-hand	up to 5	875 mm	39.00.10.16	39.00.10.1639001016	39.00.10.16
GT-875/T2-R	standing tube pillar with hinge - wall fitting with lock case	Hinge, right-hand	up to 5	875 mm	39.00.10.17	39.00.10.1739001017	39.00.10.17
GT-875/T3-L	standing tube pillar with hinge - standing tube pillar with lock case	Hinge, left-hand	up to 5	875 mm	39.00.10.18	39.00.10.1839001018	39.00.10.18
GT-875/T3-R	standing tube pillar with hinge - standing tube pillar with lock case	Hinge, right-hand	up to 5	875 mm	39.00.10.19	39.00.10.1939001019	39.00.10.19
Escape width: 1000 mm
GT-1000/T1-L	Wall fitting with hinge - standing tube pillar with lock case	Hinge, left-hand	up to 20	1000 mm	39.00.10.03	39.00.10.0339001003	39.00.10.03
GT-1000/T1-R	Wall fitting with hinge - standing tube pillar with lock case	Hinge, right-hand	up to 20	1000 mm	39.00.10.02	39.00.10.0239001002	39.00.10.02
GT-1000/T2-L	standing tube pillar with hinge - standing tube pillar with lock case	Hinge, left-hand	up to 20	1000 mm	39.00.10.05	39.00.10.0539001005	39.00.10.05
GT-1000/T2-R	standing tube pillar with hinge - wall fitting with lock case	Hinge, right-hand	up to 20	1000 mm	39.00.10.04	39.00.10.0439001004	39.00.10.04
GT-1000/T3-L	standing tube pillar with hinge - standing tube pillar with lock case	Hinge, left-hand	up to 20	1000 mm	39.00.10.07	39.00.10.0739001007	39.00.10.07
GT-1000/T3-R	standing tube pillar with hinge - standing tube pillar with lock case	Hinge, right-hand	up to 20	1000 mm	39.00.10.06	39.00.10.0639001006	39.00.10.06
Escape width: 1200 mm
GT-1200/T1-L	Wall fitting with hinge - standing tube pillar with lock case	Hinge, left-hand	up to 200	1200 mm	39.00.10.13	39.00.10.1339001013	39.00.10.13
GT-1200/T1-R	Wall fitting with hinge - standing tube pillar with lock case	Hinge, right-hand	up to 200	1200 mm	39.00.10.12	39.00.10.1239001012	39.00.10.12
GT-1200/T2-L	standing tube pillar with hinge - wall fitting with lock case	Hinge, left-hand	up to 200	1200 mm	39.00.10.09	39.00.10.0939001009	39.00.10.09
GT-1200/T2-R	standing tube pillar with hinge - wall fitting with lock case	Hinge, right-hand	up to 200	1200 mm	39.00.10.08	39.00.10.0839001008	39.00.10.08
GT-1200/T3-L	standing tube pillar with hinge - standing tube pillar with lock case	Hinge, left-hand	up to 200	1200 mm	39.00.10.11	39.00.10.1139001011	39.00.10.11
GT-1200/T3-R	standing tube pillar with hinge - standing tube pillar with lock case	Hinge, right-hand	up to 200	1200 mm	39.00.10.10	39.00.10.1039001010	39.00.10.10

Description
Reference Photos

*German workplace guideline for escape routes (ASR-A 2.3)

We manufacture paled gates individually according to customer requirements and structural conditions.

Special heights or special widths possible on request.

Material

Made of rustproof stainless steel 1.4301

Options

Anti-panic-mortise lock (according to DIN EN 179) Article no. 99.80.01.62
Door guard with pre-alarm function (splash-water proof), battery supply (9 V) Article no. 39.00.05.01
Automatic alarm cut-off for door guard Article no. 39.00.05.02
Locking by means of surface holding magnet (IP 68) Article no. 39.00.05.06
