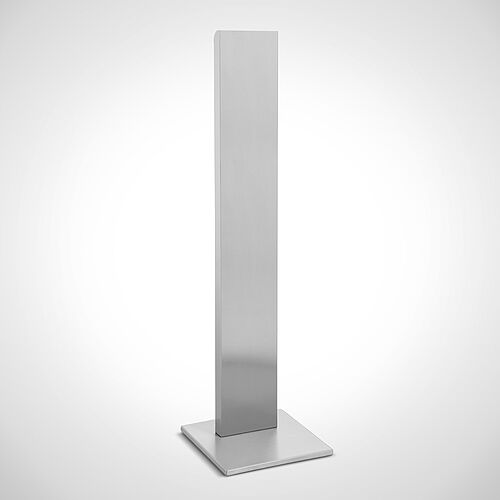

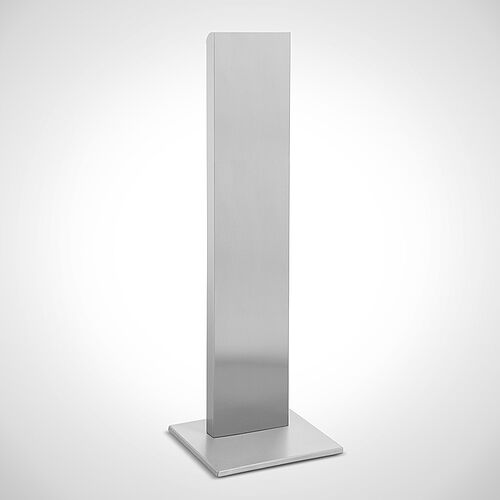

Hygiene rack

Hygiene racks
Type HS

FOR ATTACHING COMMERCIAL HAND WETTING EQUIPMENT
  • 3 different versions available
  • Robust stainless steel floor model
  • Maximum mounting width: 220 mm, 350mm or 400 mm (depending on the type)
  • Stand height: 1400 mm/ 1600 mm
  • Base depth: 350 mm or 530 mm (depending on the type)
  • Material thickness: 1.5 mm (back wall) / 2.0 mm (base)

TypeVersionDimensions
W x D x H in mm
PDF
HS 22/140suitable for Type USP-O/-A / -E-VA350 x 350 x 1400 mm18.00.04.95
HS 35/160suitable for Type Desipower-III480 x 530 x 1600 mm18.00.04.96
HS 40/160suitable for Type Desipower-V and Jet-II530 x 530 x 1600 mm18.00.04.97
HS 45/160suitable for Type Desi-Star Highline530 x 530 x 1600 mm18.00.04.99
Special dimensions
Universal dispenser, open version Type USP-O  18000015
Universal dispenser, lockable version Typ USP-L  18000168
Drip pan for Type USP-O/-A  18007013
Universal dispenser, touchless sensor-operated Typ USP-E-VA  18000068
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery takes place without hand wetting equipment



Material

Manufactured from stainless steel 18/10 material no. 1.4301.
The externally visible stainless steel sheet surfaces have a polished finish with 320 grit.
The externally visible stainless steel profile surfaces, such as the feet, have a uniform brushed finish.
