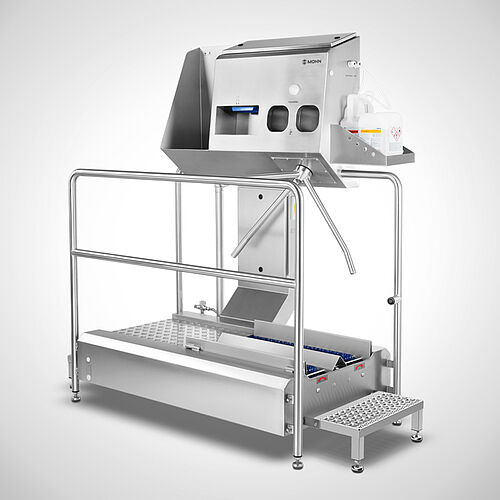

Check-In-Station Type III-Ecoline (Handdryer)
Check-In-Station Type III-Ecoline (Handdryer)
Hygiene station
Type Check-In-Station III Ecoline
Forcibly guided cleaning and disinfection of the soles + hands
High-speed hand drying: Within about 10 seconds
- Ecoline version with stable turnstile (2 years warranty)*
- Versions with left-hand or right-hand passage direction available
- Sensor-operated hand basin with integrated soap dispenser
- Contactless fittings for water and soap
- High-speed hand drier, 3.2 kW
- 2-hand disinfection unit including tamper-proof sensorics
- Way back optionally blocked or electrically released
- Sensor-controlled brush roll rotation for both ways
- Dosage of the application quantity adjustable
- Potential-free contact available, for ex. for time-recording system
- Multi-LED signal display
- Also as dry version available (for ex. bakery industry)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
1713542793771991713453285
1046
452
8
Show Lightbox Compare Comparedata
*for the turnstile mechanism
Material
Made of stainless steel 1.4301
Passage Direction
Left to Right
Right to Left
Options
- Document tray type II (sheet metal) Article no. 18.00.00.93
- Optical empty-can message by multi-LED (Ecoline) Article no. 99.87.00.34
- Lateral entry Article no. 10.00.00.87
- Disinfection bath + drip tray, instead of brush rolls on request
- Closed can holder on request
- Boot cleaning module, Boot Star I-module with bypass for persons wearing clogs on request
Technical Data
| Power supply | 3 x 400 V/N/PE; 50-60 Hz |
|---|---|
| Performance | 4,2 kW |
| Drain | 2" (DN 50) |
| Water connection | 3/4" AG, Mixing water max. 43° C |
| Fusing | 16 A |
Reference Photos
Accessories
Hand rails
Type G-I
Handrail gate
Type GT
Document tray
Type DA-III
Can container
Type KB-xx A
Can container
Type KB-xx V
Graphic board
Type GBD
