Sole + boot cleaning "Ecoline"

Sole-/ boot cleaning
Type Combiclean "Ecoline"

"ecoline" execution for Compelled-guided cleaning and disinfection of shoes/ boots

  • Solid and hygienic construction
  • 2 different versions (Length of brushes) resp. pass-through directions available
  • Sole cleaning by means of 2 horizontally rotating brush rollers
  • Boot shaft cleaning is done by 3 vertically rotating brush rollers
  • Non-contact sensor technology or brush drive controlled by hand contact sensor (boot shaft module)
  • Both-sided handrails for secure stand
  • Brushes easily dismountable without tools, thereby easy and fast cleaning possible
  • Liquid-quantity adjustable by means of dosage system
  • Duration of brushes adjustable

TypeVersionBrush length Dimensions
W x D x H in mm
ComparePDF
Combiclean 1900-R EcolinePass-through direction: Right to Left700 mm2505 x 1285 x 130011.10.08.4611.10.08.46
Combiclean 1900-L EcolinePass-through direction: Left to Right700 mm2505 x 1285 x 130011.10.08.4711.10.08.47
Combiclean 2300-R EcolinePass-through direction: Right to Left1100 mm2905 x 1285 x 130011.10.08.4811.10.08.48
Combiclean 2300-L EcolinePass-through direction: Left to Right1100 mm2905 x 1285 x 130011.10.08.4911.10.08.49
Combiclean 2700-R EcolinePass-through direction: Right to Left1600 mm3305 x 1285 x 130011.10.08.5011.10.08.50
Combiclean 2700-L EcolinePass-through direction: Left to Right1600 mm3305 x 1285 x 130011.10.08.5111.10.08.51
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1409
405
8
Show Lightbox Compare
Comparedata

Material

Rustproof stainless steel 1.4301



    Description

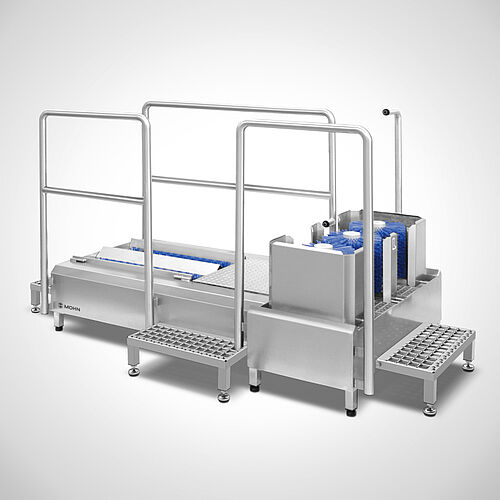

    The Combiclean "Ecoline" serves for ideal sole- and boot-cleaning and disinfection at a high amount of hygiene-security by means of compelled-guidance.

    Two horizontal rotating brushes with high-quality bristles, covered by a rust guarantee a thorough cleaning and resp. disinfection of soles at a minimal consumption of time and energy. By means of a capacitive sensor the cleaning of the boots is activated.The addition of the cleaning and disinfection detergent is automatically made by means of an adjustable dosage system. The brushes are easily dismountable without tools, thereby easy and fast cleaning is ensured.



    Passage direction

    Hygiene Station - Passage direction

    Left to right

    Hygiene Station - Passage direction

     Right to left





    Options

    • Document tray type II (sheet metal), Article no. 18.00.00.93
    • Can holder in closed, lockable version on request
    • Can container in closed version on request

    Technical Data

    Power supply3 x 400 V/N/PE; 50/ 60 Hz
    Performance0,5 kW
    Drain2"
    Water connection3/4" AG, Mixing water max. 43° C
    Fusing16 A
