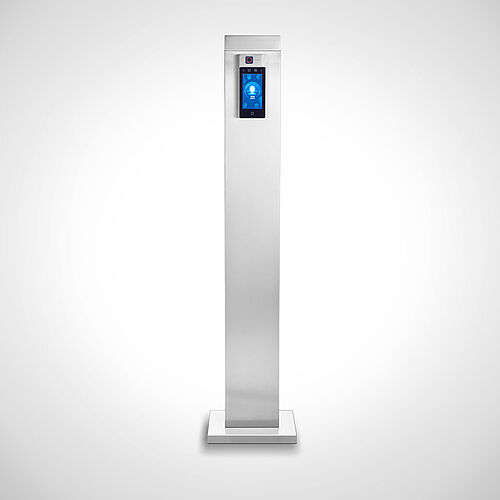

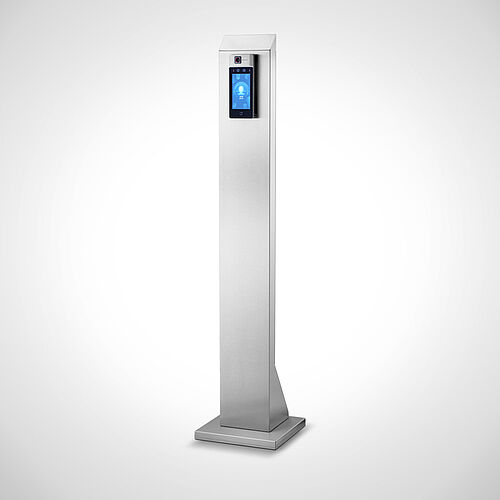

Face Checkpoint with rack
Face Checkpoint with rack
Face Checkpoint
Type FCP-SA
HIGH-QUALITY FACE RECOGNITION WITH TEMPERATURE MEASUREMENT
- Hygienic position for holding the high-quality scanner
with the following adjustable range of functions:- Temperature measurement
- Face recognition
- "Mask compulsory" detection
- Signal / data output for further processing
- Details on type FCP (scanner):
- Not suitable for outdoor use
- 7 inch LCD touch screen
- 2 megapixel wide angle lens
- Built-in Mifare card reader module
- Protection class: IP 67
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Casing made of rustproof stainless steel 1.4301
TECHNICAL DATA SCANNER
- Capacity max. 50,000 faces or max. 50,000 cards
- Face recognition time: <0.2 s
- Face recognition accuracy:> 99%
- Verification methods: support for quick temperature measurement and face / card recognition with fever screening
- Authentication distance: 0.5-1.5 mtr.
- Temperature range: 30-45 °, accuracy: ± 0.5 ° C *
- Triggers an acoustic signal when abnormal temperatures are detected
- Supports 6 presence statuses: check in, check out, break in and out, overtime
- Mask Detection: Supportive Face Mask Warning Message and Forced Mask Warning Message
*IMPORTANT INFORMATION
To get an accurate temperature, it should the device for ~ 90 minutes before using it for the first time switched on to operating temperature to get.
Furthermore, the person to be measured should acclimatise thermally for approx. 4-5 minutes in the camera room in order not to falsify the measured value, for example through frosty outside temperatures, since the "surface measurement" (forehead) procedure is used here.
Technical Data
| Operating voltage | 230 V; 50-60 Hz |
|---|---|
| Control voltage | 12 V |
Reference Photos
