Modular shelving system for standard trolleys
Type MR-HBW
OUR ORGANIZATION SYSTEM FOR 200 OR 300 LITER STANDARD TROLLEYS
- Permanently welded upright frames made of stainless steel
- Fixed clear dimension (not height adjustable)

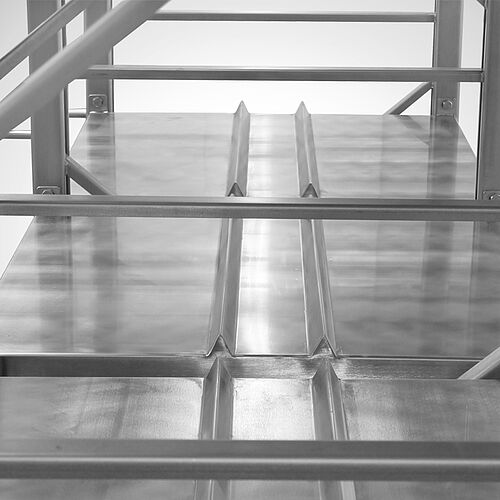

- Robust shelves with welded cross members
- Maximum shelf load 250 kg or 350 kg.
- Shelf depth 800 mm
- Shelf width without brackets: 760 mm
- Stand upright heights: 1990 mm or 2496 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301

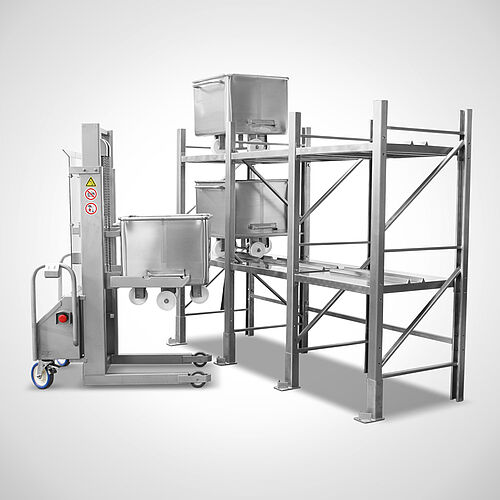

mounting example

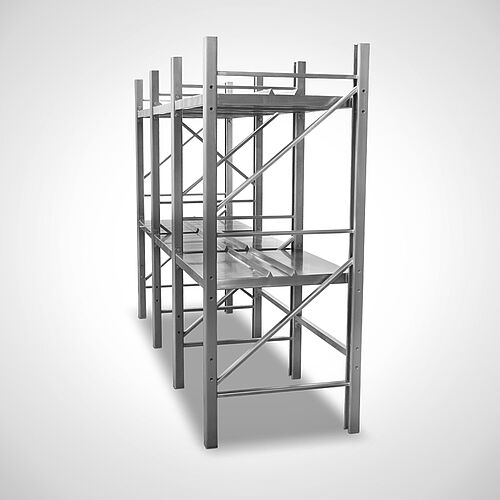

(Basic shelving unit) (Attachable shelf)
ASSEMBLY INSTRUCTIONS
The modular stainless steel shelving systems we manufacture for standard trolleys (lifting and loading trolleys) consist of welded components such as uprights and shelves.
To set up a shelf, two upright frames are set up and connected by means of the shelves. The upright frames must be set up vertically!
The upright frames must be attached to the ground using floor anchors. 1 anchor is placed per base plate.
Important: It must be checked in advance whether there is underfloor heating installed under the hall floor. If so, you may only drill to a certain depth and in such cases the shelf is attached with adhesive anchors.
The location is also important. If the shelf is in the middle of the hall or in front of a building wall, further security measures must be taken here. After assembly (personal contribution), the shelf must be approved by a shelf inspector.
If the shelf was assembled by a certified fitter, it does not need to be tested. MOHN does not have a certified shelf inspector!
