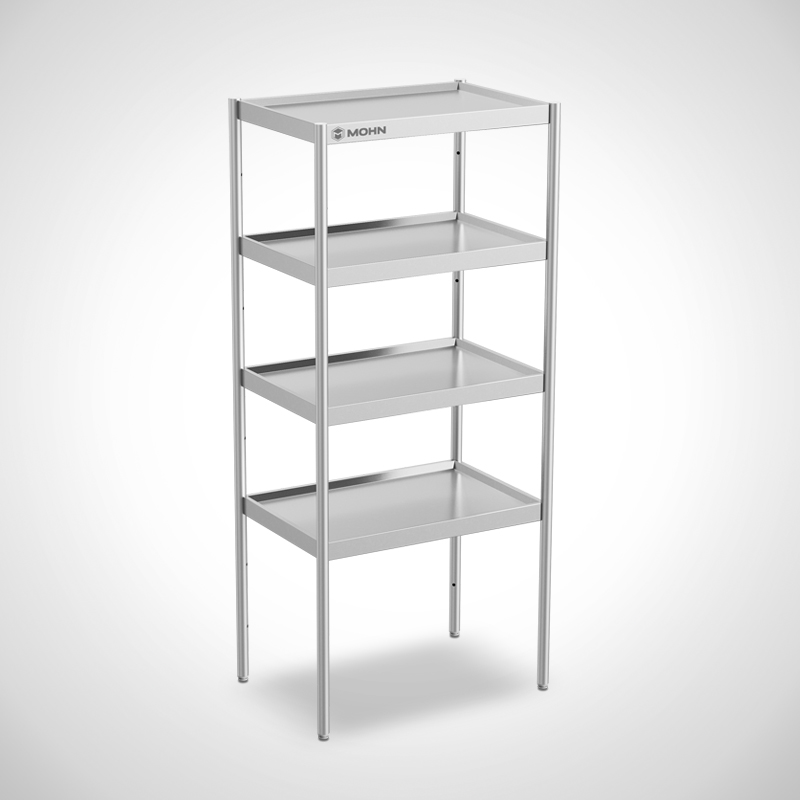

Stainless steel rack (screw-mountable)
Stainless steel rack (screw-mountable)
System rack
Type SR
Robust industrial rack with system extension option
- Easy screw mounting (delivery in fragments)
- 9 compartment shelves possible per shelf
- Robust and hygienic round pipe supports (height: 1,800 mm)
- Height adjustment grid: 200 mm (or as requested)
- Advantage: Span width up to max. 1,900 mm
- 200 kg load-bearing capacity per running meter (with evenly distributed load)
- 2 standard shelf depths: 430 or 550 mm (or as requested)
- Shelf lengths: 100 mm grid (or as requested)
- Compartment shelves closed (standard)
- Height-adjustable screw feet for level compensation
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other shelf depths, height adjustment grid, load capacity and heights on request.
Material
Made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as round tubes have a uniform brushed finish.
Informations
Basic shelving unit, consisting of:
4 compartment shelves and 4 supporting feet
Attachable shelves consisting of:
4 compartment shelves and 2 supporting feet
Option
- Perforated shelves on request (lower load capacity)
- Shelves with beaded edge on request
