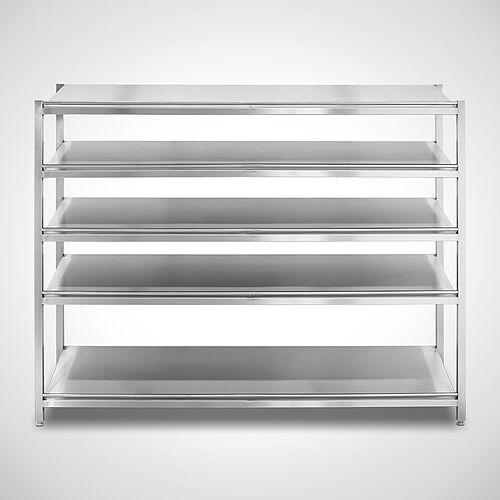

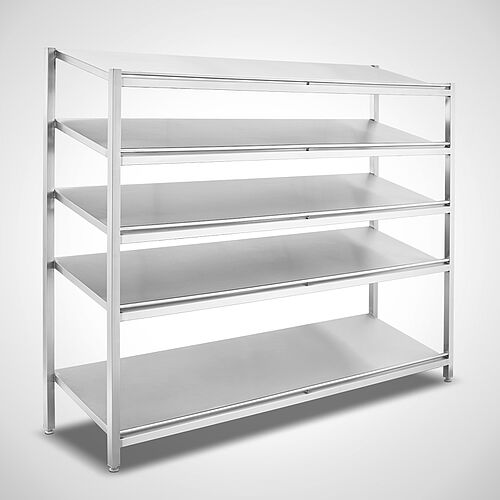

Storage rack, Type LR-E 5-5, art. no.39.01.00.05 Storage rack, Type LR-E 5-5, art. no.39.01.00.05
Storage rack, Type LR-E 5-5, art. no. 39.01.00.05 Storage rack, Type LR-E 5-5, art. no. 39.01.00.05

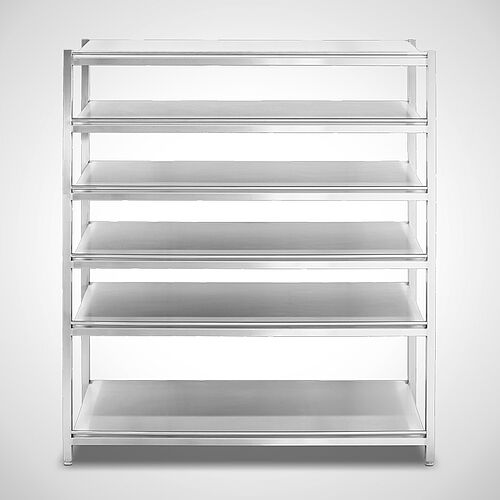

Storage rack, Type LR-E 6-4, art. no.39.01.00.34 Storage rack, Type LR-E 6-4, art. no.39.01.00.34
Storage rack, Type LR-E 6-4, art. no. 39.01.00.34Storage rack, Type LR-E 6-4, art. no. 39.01.00.34

Storage rack
Type LR-E

For ideal storage of Euro-container according to DIN EN 55423
  • Stable welded tubular frame construction
  • Storage rack, optionally 4-level to 6-level
  • Compartment shelves, closed with slope, 150 mm higher at the back
  • Hygienic round pipe profile on the operator side
  • Without stacking frame (optionally available)
  • Floor distance approx. 285 mm, bottom: approx. 485 mm
  • 4 respectively 6 height-adjustable plastic screw feet (+/- 30 mm)
  • Ground clearance 100 mm (front)
  • Profile tube 40 x 40 x 1.5 mm (Posts / Frames)
  • Base plate 1.2 mm with hat profile reinforced
  • Railing, round tube Ø 20 x 1.5 mm

TypeVersionFloorsCapacityDimensions
W x D x H in mm		PDF
4 levels
LR-E 4-24 height-adjustable screw feet42 boxes per level900 x 610 x 1275/ 142539.01.00.12
LR-E 4-34 height-adjustable screw feet43 boxes per level1340 x 610 x 1275/ 142539.01.00.13
LR-E 4-44 height-adjustable screw feet44 boxes per level1760 x 610 x 1275/ 142539.01.00.14
LR-E 4-54 height-adjustable screw feet45 boxes per level2180 x 610 x 1275/ 142539.01.00.15
LR-E 4-66 height-adjustable screw feet46 boxes per level2640 x 610 x 1275/ 142539.01.00.16
LR-E 4-76 height-adjustable screw feet47 boxes per level3000 x 610 x 1275/ 142539.01.00.17
5 levels
LR-E 5-24 height-adjustable screw feet52 boxes per level900 x 610 x 1590/ 174039.01.00.02
LR-E 5-34 height-adjustable screw feet53 boxes per level1340 x 610 x 1590/ 174039.01.00.03
LR-E 5-44 height-adjustable screw feet54 boxes per level1760 x 610 x 1590/ 174039.01.00.04
LR-E 5-54 height-adjustable screw feet55 boxes per level2180 x 610 x 1590/ 174039.01.00.05
LR-E 5-66 height-adjustable screw feet56 boxes per level2640 x 610 x 1590/ 174039.01.00.06
LR-E 5-76 height-adjustable screw feet57 boxes per level3000 x 610 x 1590/ 174039.01.00.07
6 levels
LR-E 6-24 height-adjustable screw feet62 boxes per level900 x 610 x 1905/ 205539.01.00.32
LR-E 6-34 height-adjustable screw feet63 boxes per level1340 x 610 x 1905/ 205539.01.00.33
LR-E 6-44 height-adjustable screw feet64 boxes per level1760 x 610 x 1905/ 205539.01.00.34
LR-E 6-54 height-adjustable screw feet65 boxes per level2180 x 610 x 1905/ 205539.01.00.35
LR-E 6-66 height-adjustable screw feet66 boxes per level2640 x 610 x 1905/ 205539.01.00.36
LR-E 6-76 height-adjustable screw feet67 boxes per level3000 x 610 x 1905/ 205539.01.00.37
Special dimensions
4 polyamide castors, 2 with stop 39910008
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery without containers.



Material

Made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as round tubes have a uniform brushed finish



Options

  • Mobile by means of 4 steering rolls, 2 with stops (height= +155mm), article-No: 39.91.00.08
  • In the middle partitioned execution (easier for moving) on request
  • Stacking frame above on request

Reference Photos

Mobile Storage rack Type LR-E 5-2 F, art. no. 39.01.00.02 + 39.91.00.08
Mobile Storage rack Type LR-E 5-2 F, art. no. 39.01.00.02 + 39.91.00.08
