Worktable base frame: H-strutting

Worktable base frame: H-strutting

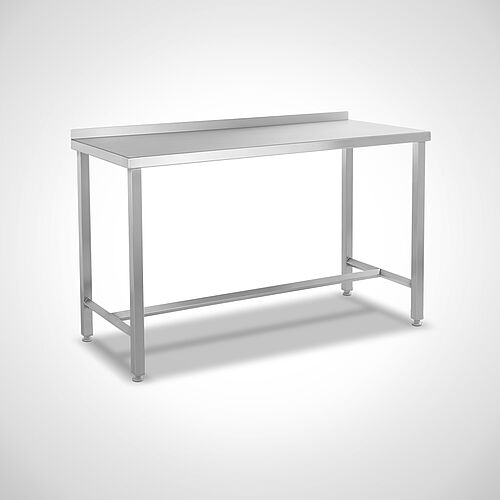

Stainless steel worktable with H-bracing type AT-H 120-60, art. no. 21.00.11.06, with rear worktop upstand Stainless steel worktable with H-bracing type AT-H 120-60, art. no. 21.00.11.06, with rear worktop upstand

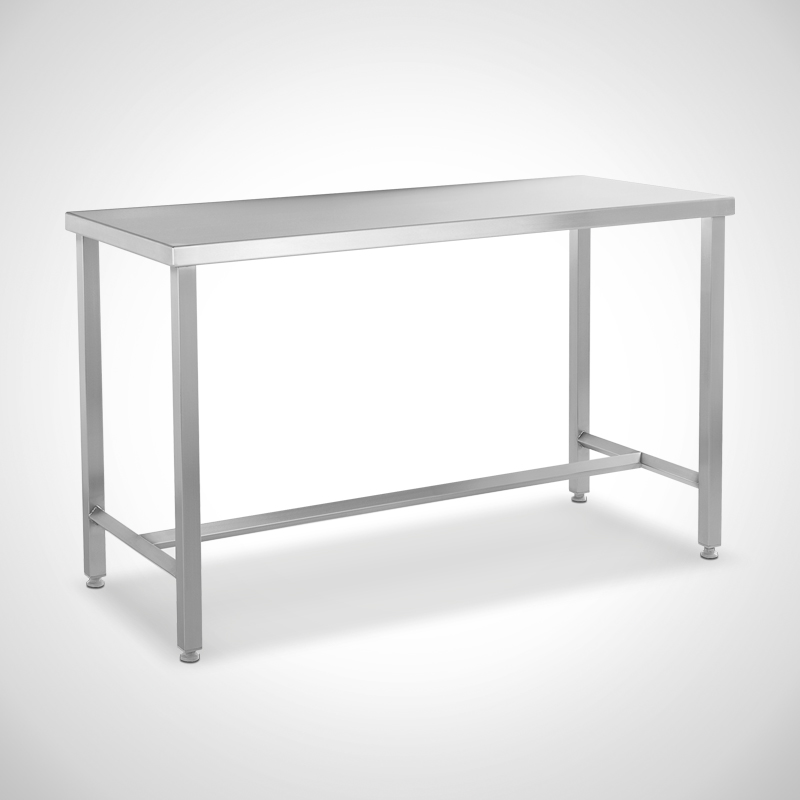

Stainless steel worktable with H-bracing type AT-H 120-60, art. no. 21.00.11.06, without rear worktop upstandStainless steel worktable with H-bracing type AT-H 120-60, art. no. 21.00.11.06, without rear worktop upstand

Work tables
Type AT-H

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel 1.4301
  • Table top with 1.5 mm material thickness
  • Table top chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile, Load up to max. 200 kg (equally distributed load)
  • Lower structure with stable square pipe frame construction (40 x 40 x 1.5 mm)
  • Lower structure in the “Hygienic-Design” (diamond profile)
  • Strutted in H-shape on 3 sides - longitudinal strut centred
  • 4 or 6 height-adjustable plastic screw feet (+/- 30 mm)
  • From 2,500 mm length with 6 supporting feet
  • Standard ground clearance: 150 mm

TypeDimensions
W x D x H in mm		PDF
AT-H 60-60600 x 600 x 85021001100
AT-H 70-60700 x 600 x 85021001101
AT-H 80-60800 x 600 x 85021001102
AT-H 90-60900 x 600 x 85021001103
AT-H 100-601000 x 600 x 85021001104
AT-H 110-601100 x 600 x 85021001105
AT-H 120-601200 x 600 x 85021001106
AT-H 130-601300 x 600 x 85021001107
AT-H 140-601400 x 600 x 85021001108
AT-H 150-601500 x 600 x 85021001109
AT-H 160-601600 x 600 x 85021001110
AT-H 170-601700 x 600 x 85021001111
AT-H 180-601800 x 600 x 85021001112
AT-H 190-601900 x 600 x 85021001113
AT-H 200-602000 x 600 x 85021001114
AT-H 210-602100 x 600 x 85021001115
AT-H 220-602200 x 600 x 85021001116
AT-H 230-602300 x 600 x 85021001117
AT-H 240-602400 x 600 x 85021001118
AT-H 250-602500 x 600 x 85021001119
AT-H 260-602600 x 600 x 85021001120
AT-H 270-602700 x 600 x 85021001121
AT-H 280-602800 x 600 x 85021001122
AT-H 290-602900 x 600 x 85021001123
AT-H 60-70600 x 700 x 85021001124
AT-H 70-70700 x 700 x 85021001125
AT-H 80-70800 x 700 x 85021001126
AT-H 90-70900 x 700 x 85021001127
AT-H 100-701000 x 700 x 85021001128
AT-H 110-701100 x 700 x 85021001129
AT-H 120-701200 x 700 x 85021001130
AT-H 130-701300 x 700 x 85021001131
AT-H 140-701400 x 700 x 85021001132
AT-H 150-701500 x 700 x 85021001133
AT-H 160-701600 x 700 x 85021001134
AT-H 170-701700 x 700 x 85021001135
AT-H 180-701800 x 700 x 85021001136
AT-H 190-701900 x 700 x 85021001137
AT-H 200-702000 x 700 x 85021001138
AT-H 210-702100 x 700 x 85021001139
AT-H 220-702200 x 700 x 85021001140
AT-H 230-702300 x 700 x 85021001141
AT-H 240-702400 x 700 x 85021001142
AT-H 250-702500 x 700 x 85021001143
AT-H 260-702600 x 700 x 85021001144
AT-H 270-702700 x 700 x 85021001145
AT-H 280-702800 x 700 x 85021001146
AT-H 290-702900 x 700 x 85021001147
AT-H 60-80600 x 800 x 85021001148
AT-H 70-80700 x 800 x 85021001149
AT-H 80-80800 x 800 x 85021001150
AT-H 90-80900 x 800 x 85021001151
AT-H 100-801000 x 800 x 85021001152
AT-H 110-801100 x 800 x 85021001153
AT-H 120-801200 x 800 x 85021001154
AT-H 130-801300 x 800 x 85021001155
AT-H 140-801400 x 800 x 85021001156
AT-H 150-801500 x 800 x 85021001157
AT-H 160-801600 x 800 x 85021001158
AT-H 170-801700 x 800 x 85021001159
AT-H 180-801800 x 800 x 85021001160
AT-H 190-801900 x 800 x 85021001161
AT-H 200-802000 x 800 x 85021001162
AT-H 210-802100 x 800 x 85021001163
AT-H 220-802200 x 800 x 85021001164
AT-H 230-802300 x 800 x 85021001165
AT-H 240-802400 x 800 x 85021001166
AT-H 250-802500 x 800 x 85021001167
AT-H 260-802600 x 800 x 85021001168
AT-H 270-802700 x 800 x 85021001169
AT-H 280-802800 x 800 x 85021001170
AT-H 290-802900 x 800 x 85021001171
Special dimensions
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Hygienic Design castor set type HLR-SET  29100103
Table leg height adjustment "Easy"  21000886
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

 All Dimension in mm. Other designs on request!



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.

The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish




Options

  • With drawers
  • With drawers-locker right and/ or left (Type SR/SL)
  • Mobile with 2-trestle rolls and 2 steering-rolls with stops, Ø125 mm, art.-no. 99.90.01.50
  • Manual resp. electric height-adjustable table top on request
