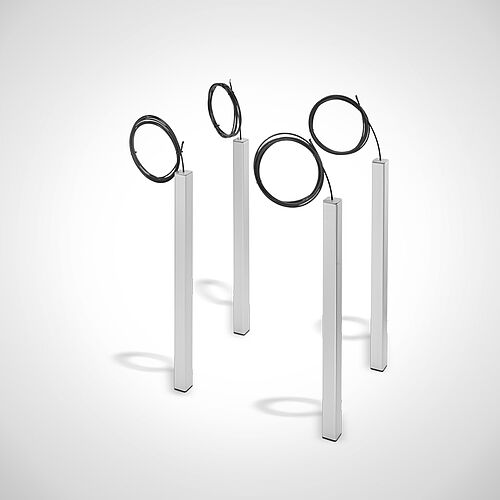

Linear units type LA-M 400-350, item no. 99.89.91.04

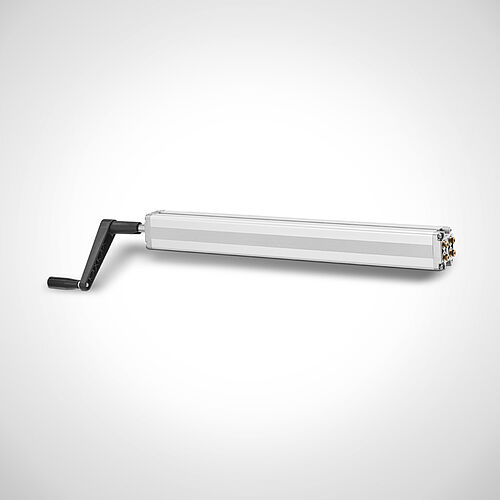

Manual crank with pump

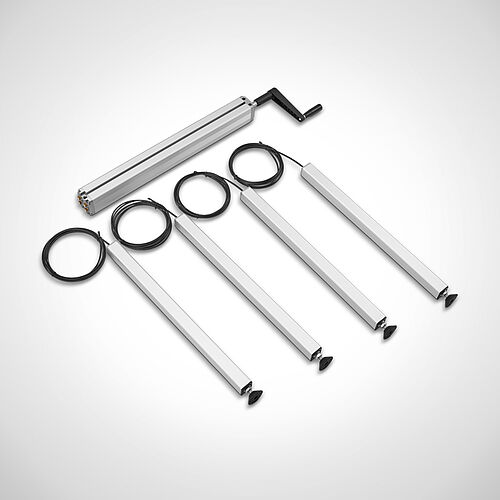

Complete lifting system with manual crank, pump and 4 linear units (lying)

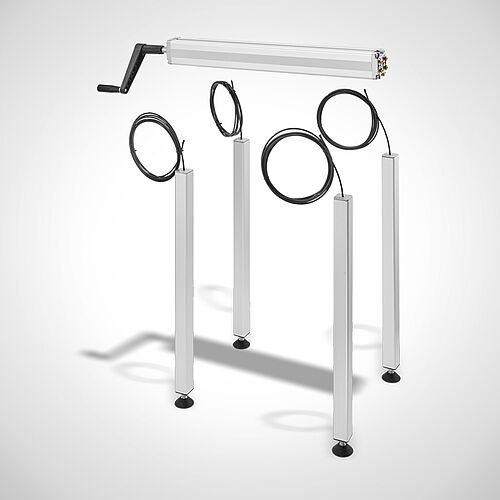

Complete lifting system with manual crank, pump and 4 linear units (standing)

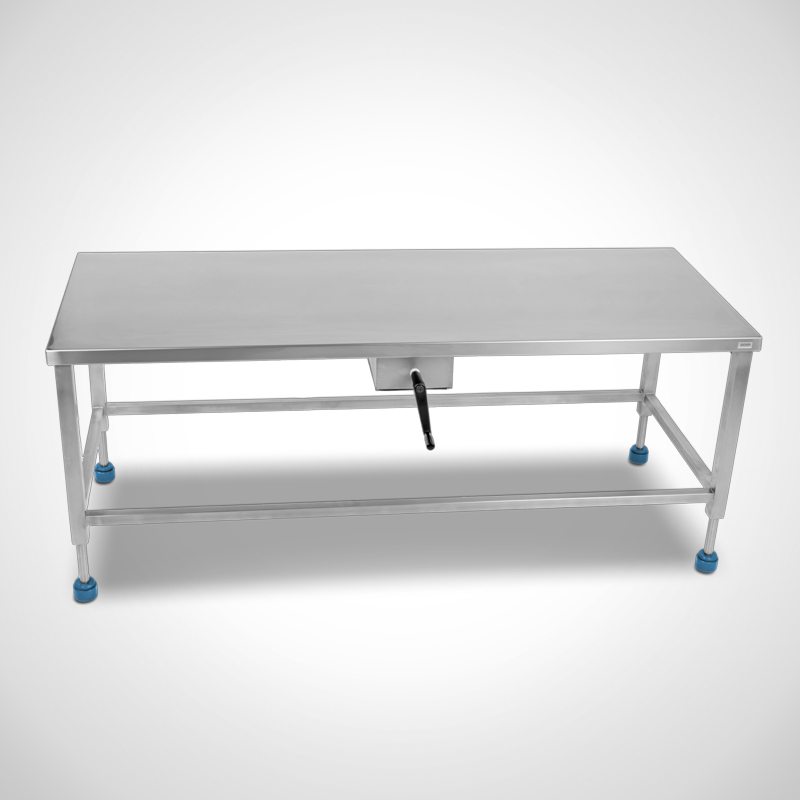

SYSTEM EXAMPLE: Stainless steel work table type AT with 4 linear units - manually operated using a hand crank

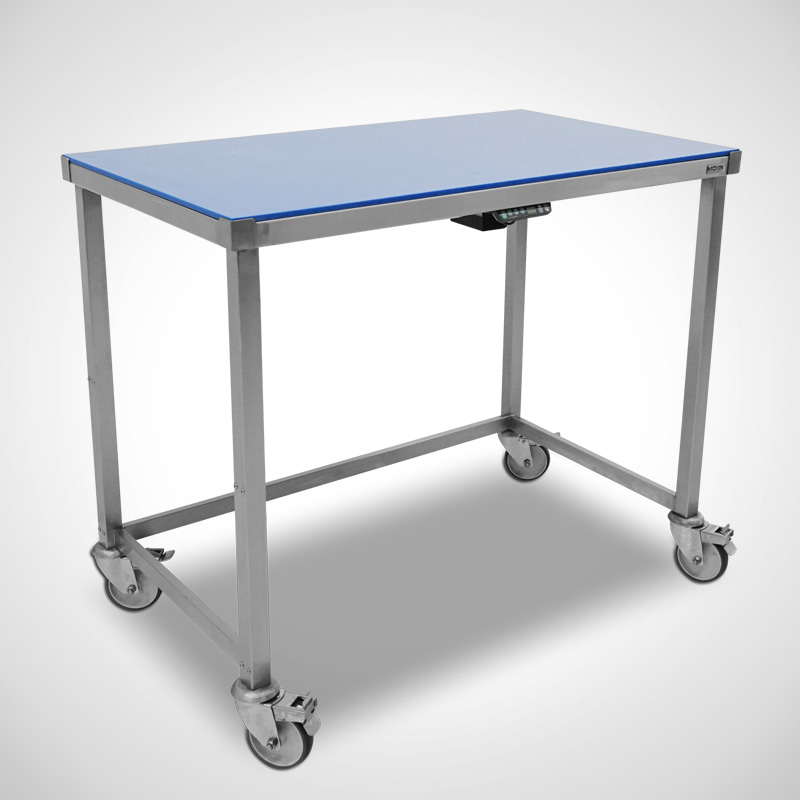

SYSTEM EXAMPLE: Mobile preparation table type AT-U-F with 4 linear units - operated by an electric motor.

Table height adjustment system
Type ERGO

For ideal design of work places with individual height-adjustability

OPTIONAL available for all MOHN work tables
Height adjustment system for integration in table leg profiles (40 x 40 mm)
Optionally with manual operation using a hand crank or by an electric motor
Maximum total load of 350 kg to max. 600 kg possible
Stroke lengths of up to 700 mm possible, depending on the version
Protection class: IP 20
NOT suitable for wet and damp rooms.
Use ONLY in closed rooms and dry environment.
Special designs on request

Type	Version	Stroke length	Lfiting capacity	Art.-No. Please mark	PDF
4 Linear units - 350 kg
4 LA-M 150/350*	4 Linear units-manual	150 mm	350 kg	99.89.91.0199899101	99.89.91.01
4 LA-M 200/350*	4 Linear units-manual	200 mm	350 kg	99.89.91.0299899102	99.89.91.02
4 LA-M 300/350*	4 Linear units-manual	300 mm	350 kg	99.89.91.0399899103	99.89.91.03
4 LA-M 400/350*	4 Linear units-manual	400 mm	350 kg	99.89.91.0499899104	99.89.91.04
4 LA-M 500/350*	4 Linear units-manual	500 mm	350 kg	99.89.91.0599899105	99.89.91.05
4 LA-M 600/350*	4 Linear units-manual	600 mm	350 kg	99.89.91.0699899106	99.89.91.06
4 LA-M 700/350*	4 Linear units-manual	700 mm	350 kg	99.89.91.0799899107	99.89.91.07
4 LA-E 150/350*	4 Linear units-electrical	150 mm	350 kg	99.89.91.4199899141	99.89.91.41
4 LA-E 200/350*	4 Linear units-electrical	200 mm	350 kg	99.89.91.4299899142	99.89.91.42
4 LA-E 300/350*	4 Linear units-electrical	300 mm	350 kg	99.89.91.4399899143	99.89.91.43
4 LA-E 400/350*	4 Linear units-electrical	400 mm	350 kg	99.89.91.4499899144	99.89.91.44
4 LA-E 500/350*	4 Linear units-electrical	500 mm	350 kg	99.89.91.4599899145	99.89.91.45
4 LA-E 600/350*	4 Linear units-electrical	600 mm	350 kg	99.89.91.4699899146	99.89.91.46
4 LA-E 700/350*	4 Linear units-electrical	700 mm	350 kg	99.89.91.4799899147	99.89.91.47
4 Linear units - 600 kg
4 LA-M 110/600*	4 Linear units-manual	110 mm	600 kg	99.89.91.1199899111	99.89.91.11
4 LA-M 180/600*	4 Linear units-manual	180 mm	600 kg	99.89.91.1299899112	99.89.91.12
4 LA-M 240/600*	4 Linear units-manual	240 mm	600 kg	99.89.91.1399899113	99.89.91.13
4 LA-M 300/600* l	4 Linear units-manual	300 mm	600 kg	99.89.91.1499899114	99.89.91.14
4 LA-M 400/600* l	4 Linear units-manual	400 mm	600 kg	99.89.91.1599899115	99.89.91.15
4 LA-E 110/600*	4 Linear units-electrical	110 mm	600 kg	99.89.91.5199899151	99.89.91.51
4 LA-E 180/600*	4 Linear units-electrical	180 mm	600 kg	99.89.91.5299899152	99.89.91.52
4 LA-E 240/600*	4 Linear units-electrical	240 mm	600 kg	99.89.91.5399899153	99.89.91.53
4 LA-E 300/600*	4 Linear units-electrical	300 mm	600 kg	99.89.91.5499899154	99.89.91.54
4 LA-E 400/600*	4 Linear units-electrical	400 mm	600 kg	99.89.91.5599899155	99.89.91.55
6 Linear units - 350 kg
6 LA-M 150/350*	6 Linear units-manual	150 mm	350 kg	99.89.91.2199899121	99.89.91.21
6 LA-M 200/350*	6 Linear units-manual	200 mm	350 kg	99.89.91.2299899122	99.89.91.22
6 LA-M 300/350*	6 Linear units-manual	300 mm	350 kg	99.89.91.2399899123	99.89.91.23
6 LA-M 400/350*	6 Linear units-manual	400 mm	350 kg	99.89.91.2499899124	99.89.91.24
6 LA-M 500/350*	6 Linear units-manual	500 mm	350 kg	99.89.91.2599899125	99.89.91.25
6 LA-M 600/350*	6 Linear units-manual	600 mm	350 kg	99.89.91.2699899126	99.89.91.26
6 LA-M 700/350*	6 Linear units-manual	700 mm	350 kg	99.89.91.2799899127	99.89.91.27
6 LA-E 150/350*	6 Linear units-electrical	150 mm	350 kg	99.89.91.6199899161	99.89.91.61
6 LA-E 200/350*	6 Linear units-electrical	200 mm	350 kg	99.89.91.6299899162	99.89.91.62
6 LA-E 300/350*	6 Linear units-electrical	300 mm	350 kg	99.89.91.6399899163	99.89.91.63
6 LA-E 400/350*	6 Linear units-electrical	400 mm	350 kg	99.89.91.6499899164	99.89.91.64
6 LA-E 500/350*	6 Linear units-electrical	500 mm	350 kg	99.89.91.6599899165	99.89.91.65
6 LA-E 600/350*	6 Linear units-electrical	600 mm	350 kg	99.89.91.6699899166	99.89.91.66
6 LA-E 700/350*	6 Linear units-electrical	700 mm	350 kg	99.89.91.6799899167	99.89.91.67
6 Linear units - 600 kg
6 LA-M 110/600*	6 Linear units-manual	110 mm	600 kg	99.89.91.3199899131	99.89.91.31
6 LA-M 180/600*	6 Linear units-manual	180 mm	600 kg	99.89.91.3299899132	99.89.91.32
6 LA-M 240/600*	6 Linear units-manual	240 mm	600 kg	99.89.91.3399899133	99.89.91.33
6 LA-M 300/600*	6 Linear units-manual	300 mm	600 kg	99.89.91.3499899134	99.89.91.34
6 LA-M 400/600*	6 Linear units-manual	400 mm	600 kg	99.89.91.3599899135	99.89.91.35
6 LA-E 110/600*	6 Linear units-electrical	110 mm	600 kg	99.89.91.7199899171	99.89.91.71
6 LA-E 180/600*	6 Linear units-electrical	180 mm	600 kg	99.89.91.7299899172	99.89.91.72
6 LA-E 240/600*	6 Linear units-electrical	240 mm	600 kg	99.89.91.7399899173	99.89.91.73
6 LA-E 300/600*	6 Linear units-electrical	300 mm	600 kg	99.89.91.7499899174	99.89.91.74
6 LA-E 400/600*	6 Linear units-electrical	400 mm	600 kg	99.89.91.7599899175	99.89.91.75

Description
Downloads

Material

Partially rustproof stainless steel 1.4301

COMPLETE TABLE HEIGHT ADJUSTMENT SYSTEM

consisting of:

1 pc. Pump
1 pc. Control unit (only electromotive version)
1 pc. hand crank, foldable (fully assembled) - rustproof design
4 or 6 pcs. linear units - rustproof design
12 m hose, black 4.0 x 1.1 (3 m hose pre-assembled per linear unit)
4 or 6 pcs. adjustable feet made of solid rubber - rustproof design (depending on the system)

Situation

Disease of locomotor system covers more than 50% of the occupational illnesses. 35% of all absenteeism is referable to illnesses, caused by a wrong posture.
Especially workers in butcheries, who perform equal movements on and on during the whole shift, suffer from this pain and are out of action for a long time.
