Worktable base frame: H-strutting

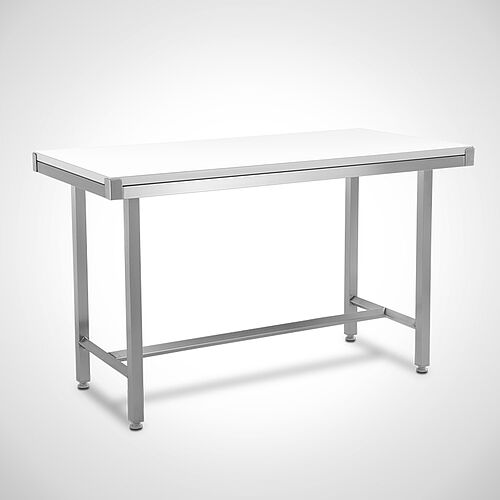

Work table
Type UTFI-H

Universal tables can be used for all sectors and product areas

  • Fixed-welded design made of stainless steel
  • Plastic cutting-worktop HDPE 500 inserted in stainless steel frame
  • Plastic cutting-workttop in 30 mm material thickness
  • Cutting worktop standard in colour white, optionally available in red-brown
  • Substructure in H-shape braced on 3 sides
  • Lower structure with H-shape strutted in the “Hygienic-Design“- diamond profile
  • Supporting feet, shifted inwards on the side and back
  • 4 resp. 6 height-adjustable plastic screw feet (+/- 30 mm)
    (from 2500 mm length with 6 feet)
  • Standard ground clearance: 150 mm

TypeDepth
in mm
Dimensions
W x D x H in mm
PDF
Table depth: 700 mm
UTFI-H 120-70700 mm1200 x 700 x 85022.00.00.63
UTFI-H 130-70700 mm1300 x 700 x 85022.00.00.64
UTFI-H 140-70700 mm1400 x 700 x 85022.00.00.65
UTFI-H 150-70700 mm1500 x 700 x 85022.00.00.66
UTFI-H 160-70700 mm1600 x 700 x 85022.00.00.67
UTFI-H 170-70700 mm1700 x 700 x 85022.00.00.68
UTFI-H 180-70700 mm1800 x 700 x 85022.00.00.69
UTFI-H 190-70700 mm1900 x 700 x 85022.00.00.70
UTFI-H 200-70700 mm2000 x 700 x 85022.00.00.71
UTFI-H 210-70700 mm2100 x 700 x 85022.00.00.72
UTFI-H 220-70700 mm2200 x 700 x 85022.00.00.73
UTFI-H 230-70700 mm2300 x 700 x 85022.00.00.74
UTFI-H 240-70700 mm2400 x 700 x 85022.00.00.75
Table depth: 800 mm
UTFI-H 120-80800 mm1200 x 800 x 85022.00.00.77
UTFI-H 130-80800 mm1300 x 800 x 85022.00.00.78
UTFI-H 140-80800 mm1400 x 800 x 85022.00.00.79
UTFI-H 150-80800 mm1500 x 800 x 85022.00.00.80
UTFI-H 160-80800 mm1600 x 800 x 85022.00.00.81
UTFI-H 170-80800 mm1700 x 800 x 85022.00.00.82
UTFI-H 180-80800 mm1800 x 800 x 85022.00.00.83
UTFI-H 190-80800 mm1900 x 800 x 85022.00.00.84
UTFI-H 200-80800 mm2000 x 800 x 85022.00.00.85
UTFI-H 210-80800 mm2100 x 800 x 85022.00.00.86
UTFI-H 220-80800 mm2200 x 800 x 85022.00.00.87
UTFI-H 230-80800 mm2300 x 800 x 85022.00.00.88
UTFI-H 240-80800 mm2400 x 800 x 85022.00.00.89
Table depth: 900 mm
UTFI-H 120-90900 mm1200 x 900 x 85022.00.01.82
UTFI-H 130-90900 mm1300 x 900 x 85022.00.01.83
UTFI-H 140-90900 mm1400 x 900 x 85022.00.01.84
UTFI-H 150-90900 mm1500 x 900 x 85022.00.01.85
UTFI-H 160-90900 mm1600 x 900 x 85022.00.01.86
UTFI-H 170-90900 mm1700 x 900 x 85022.00.01.87
UTFI-H 180-90900 mm1800 x 900 x 85022.00.01.88
UTFI-H 190-90900 mm1900 x 900 x 85022.00.01.89
UTFI-H 200-90900 mm2000 x 900 x 85022.00.01.90
UTFI-H 210-90900 mm2100 x 900 x 85022.00.01.91
UTFI-H 220-90900 mm2200 x 900 x 85022.00.01.92
UTFI-H 230-90900 mm2300 x 900 x 85022.00.01.93
UTFI-H 240-90900 mm2400 x 900 x 85022.00.01.94
Special dimensions
PE-cutting plate in colour red-brown 22000250
Table leg height adjustment "Easy"  21000886
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All Dimension in mm. Other designs on request.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as feet have a uniform brushed finish.



Options

  • HDPE 500 cutting-worktop in colour red-brown on request
  • Drawers with partial pull-out made of rust-free stainless steel on request
  • Mobile version (2 trestle castors and 2 swivel castor), Ø125 mm, Art. no. 99.90.01.50
  • Manual resp. electrical height-adjustable on request

HDPE/ Food-safe (current)


Signal white

RAL 9003


Light grey

RAL 7035


Dusty grey

RAL 7037


Anthracite grey

RAL 7016


Signal black

RAL 9004


Traffic white

RAL 9016


Pure green

RAL 6037


Mint green

RAL 6029


Light blue

RAL 5012


Sky blue

RAL 5015


Rape yellow

RAL 1021


Pastel-orange

RAL 2003


Telemagenta

RAL 4010


Traffic red

RAL 3020


Red brown

RAL 3011

Granite-bright
Granite-bright

HDPE/ Food-safe (expiring colors)


Sulphur-yellow

RAL 1016


Signal green

RAL 6032


Telegrey

RAL 7046


Mouse-grey

RAL 7005

(While stocks last)

INFO The real colors could differ from the representations shown here
