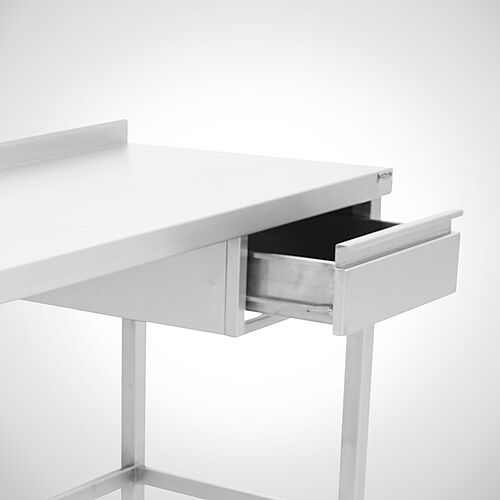

Under-mounted box drawer type KSL-U 400, art. no. 21.00.08.85, worktable with rear worktop upstand Under-mounted box drawer type KSL-U 400, art. no. 21.00.08.85, worktable with rear worktop upstand
Under-mounted box drawer type KSL-U 400, art. no. 21.00.08.85, worktable without rear worktop upstandUnder-mounted box drawer type KSL-U 400, art. no. 21.00.08.85, worktable without rear worktop upstand

Box Drawer
Type KSL-U

FOR SUBSEQUENT ASSEMBLY UNDER TABLE TOPS

  • Drawer housing above with 4 mounting holes
  • Drawer housing faced on 3 sides
  • 3 different drawer widths
  • Height of the box drawer: 150 mm
  • Box drawer with 3/4 partial pull-out
  • Box drawer on the front with continuous handle bar

TypeVersionDepth
in mm		Dimensions
W x D x H in mm		PDF
KSL-U 400Partial extension (3/4)400 mm400 x 500 x 150 mm21.00.08.85
KSL-U 500Partial extension (3/4)500 mm500 x 500 x 150 mm21.00.08.87
KSL-U 600Partial extension (3/4)600 mm600 x 500 x 150 mm21.00.08.89
Special dimensions
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Drawer with full extension 99800288
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Stainless steel 1.4301

Stainless steel sheet surface: polished grain 320
Stainless steel profile surface: Brushed



Information

For retrofitting below existing table tops or optionally, directly below our work tables or similar, fully assembled.

Reference Photos

Work table Type AT-U with 2 box drawers Type KSL-U 400
