Worktable base frame: H-strutting

Worktable base frame: H-strutting

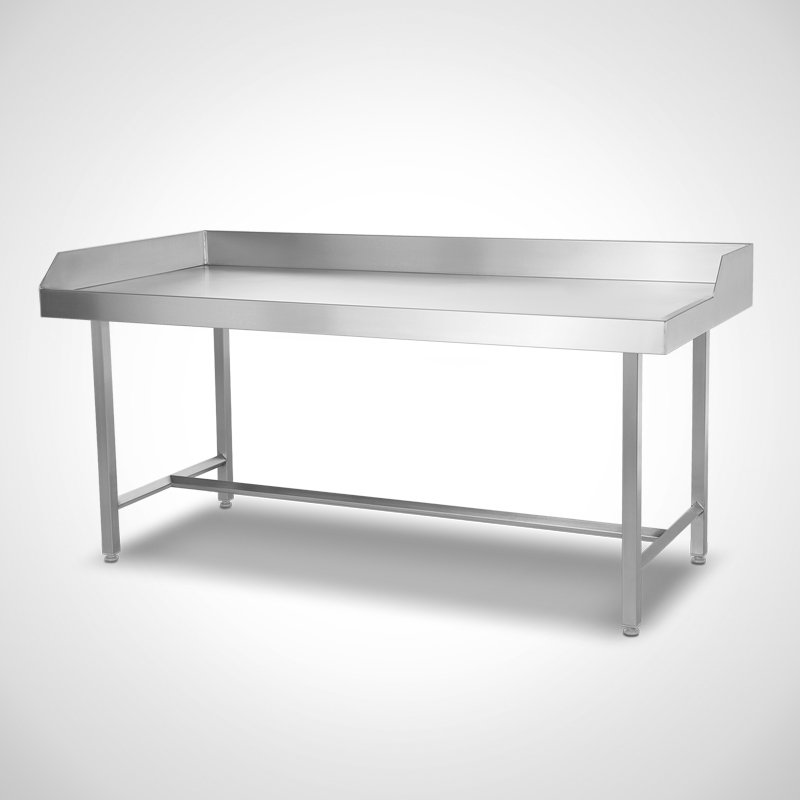

Filling table made of stainless steel Type FT-HFilling table made of stainless steel Type FT-H

Filling table
Type FT-H

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel
  • Table top with 1.5 mm material thickness
  • Table top only with buldge edge on the front and on the right half-side
  • Table top, otherwise with 100 mm backsplash and with discharge opening on the back left
  • Table top, underneath reinforced with surrounding square pipe profile frame
  • Lower structure with stable square pipe frame construction (40 x 40 x 1.5 mm)
  • Lower structure in H-form design 3-sided stainless steel profiles
  • Lower structure - center with profile in "hygienic-design"
  • Supporting feet, shifted inwards on the side and back
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeDimensions
W x D x H in mm		PDF
FT-H 140-901400 x 900 x 85020000500
FT-H 150-901500 x 900 x 85020000501
FT-H 160-901600 x 900 x 85020000502
FT-H 170-901700 x 900 x 85020000503
FT-H 180-901800 x 900 x 85020000504
FT-H 190-901900 x 900 x 85020000505
FT-H 200-902000 x 900 x 85020000506
FT-H 210-902100 x 900 x 85020000507
FT-H 220-902200 x 900 x 85020000508
FT-H 230-902300 x 900 x 85020000509
FT-H 240-902400 x 900 x 85020000510
FT-H 140-1001400 x 1000 x 85020000515
FT-H 150-1001500 x 1000 x 85020000516
FT-H 160-1001600 x 1000 x 85020000517
FT-H 170-1001700 x 1000 x 85020000518
FT-H 180-1001800 x 1000 x 85020000519
FT-H 190-1001900 x 1000 x 85020000520
FT-H 200-1002000 x 1000 x 85020000521
FT-H 210-1002100 x 1000 x 85020000522
FT-H 220-1002200 x 1000 x 85020000523
FT-H 230-1002300 x 1000 x 85020000524
FT-H 240-1002400 x 1000 x 85020000525
FT-H 140-1101400 x 1100 x 85020000530
FT-H 150-1101500 x 1100 x 85020000531
FT-H 160-1101600 x 1100 x 85020000532
FT-H 170-1101700 x 1100 x 85020000533
FT-H 180-1101800 x 1100 x 85020000534
FT-H 190-1101900 x 1100 x 85020000535
FT-H 200-1102000 x 1100 x 85020000536
FT-H 210-1102100 x 1100 x 85020000537
FT-H 220-1102200 x 1100 x 85020000538
FT-H 230-1102300 x 1100 x 85020000539
FT-H 240-1102400 x 1100 x 85020000540
Special dimensions
Table leg height adjustment "Easy"  21000886
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions in mm. Other executions o request!


Material

Made of chrome-nickel steel 18/10 material No. 1.4301

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.

The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish


Options

  • Mobile, 2 fixed rollers and 2 castors with locking mechanism, article no. 99.90.01.50
  • Manual resp. electrical height-adjustable on request
