Fold-out wheelbase for tables
Fold-out wheelbase for tables
Fold-out wheelbase
type FG-A
OPTION FOR TABLES that need to be moved from time to time
- Suitable for various types of tables
- Manual mechanism for folding out and folding in
- Two movable crossbars on the table base
- 2 fixed castors, 2 swivel castors without brakes
- Wheel diameter: Ø 125 mm
- Special operating rod included
- Holder for storing the handle integrated into the table
- Cannot be retrofitted – must be specified at the time of ordering
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
This item is not sold separately and cannot be retrofitted!
It can only be ordered as an optional extra with the stainless steel tables!
Material
Stainless steel 1.4301
Description

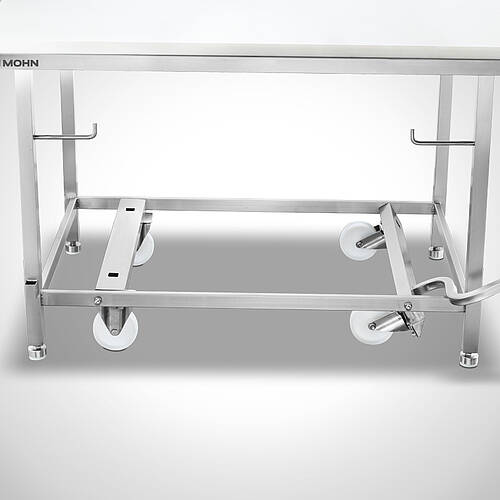

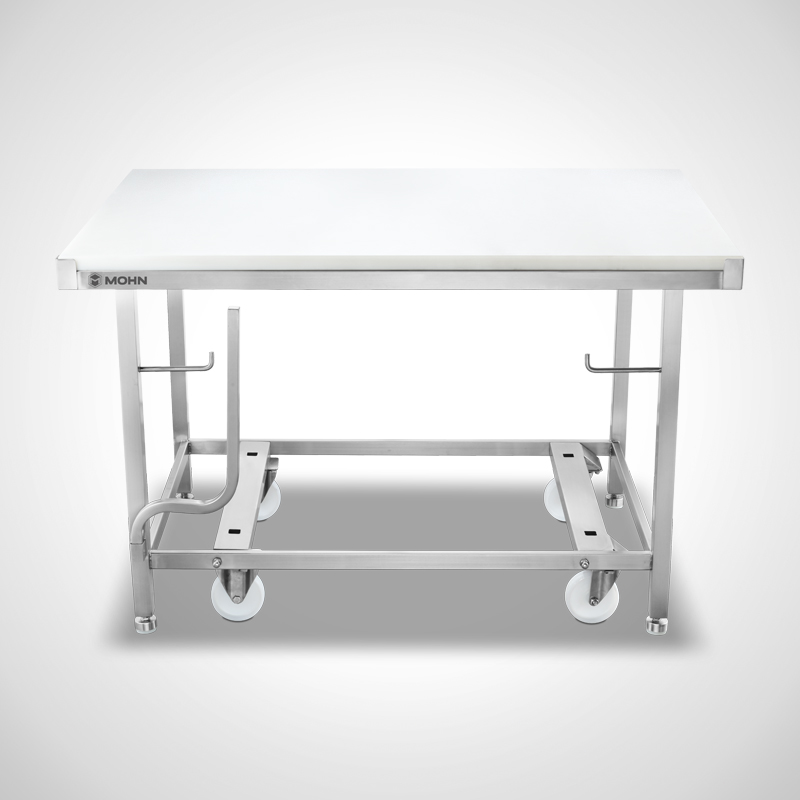

The FG-A fold-out wheelbase option allows tables to be moved manually when required and then returned to a stable position on the support feet. The chassis consists of two movable crossbars, to which 2 fixed castors and 2 swivel castors without brakes, with a wheel diameter of 125 mm, are mounted.

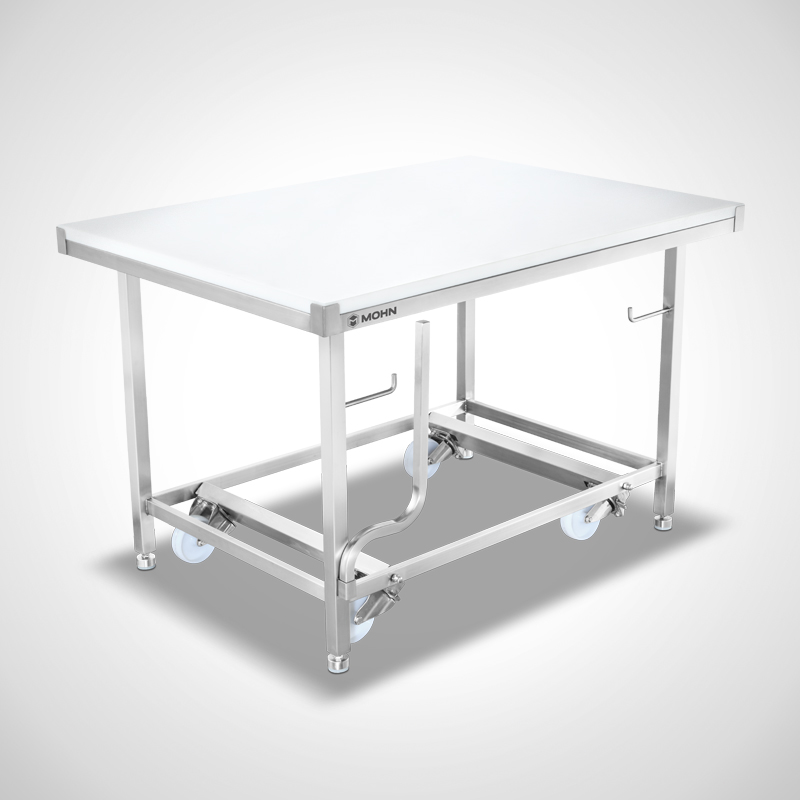

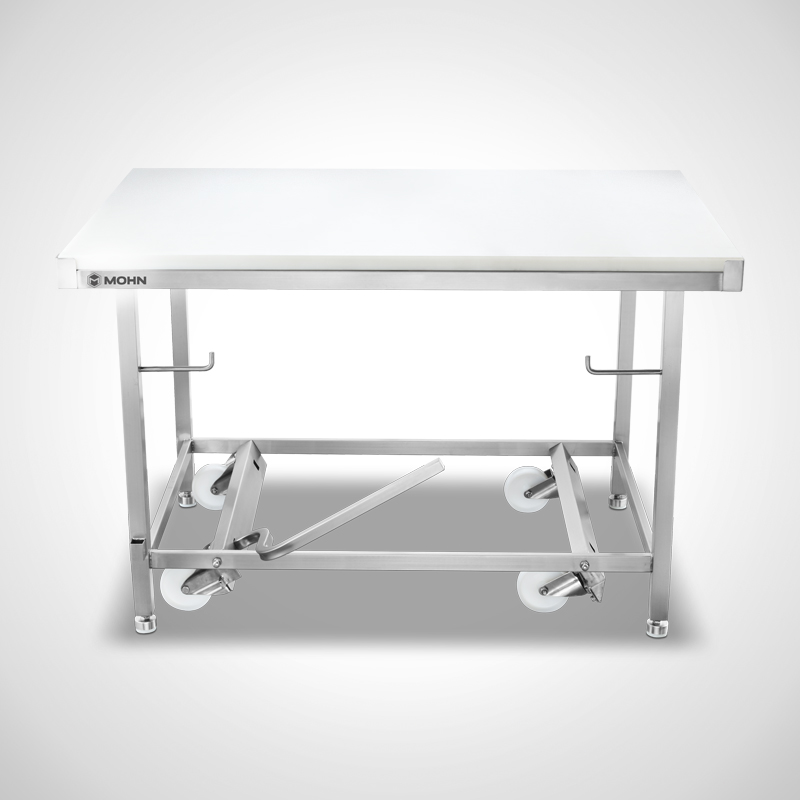

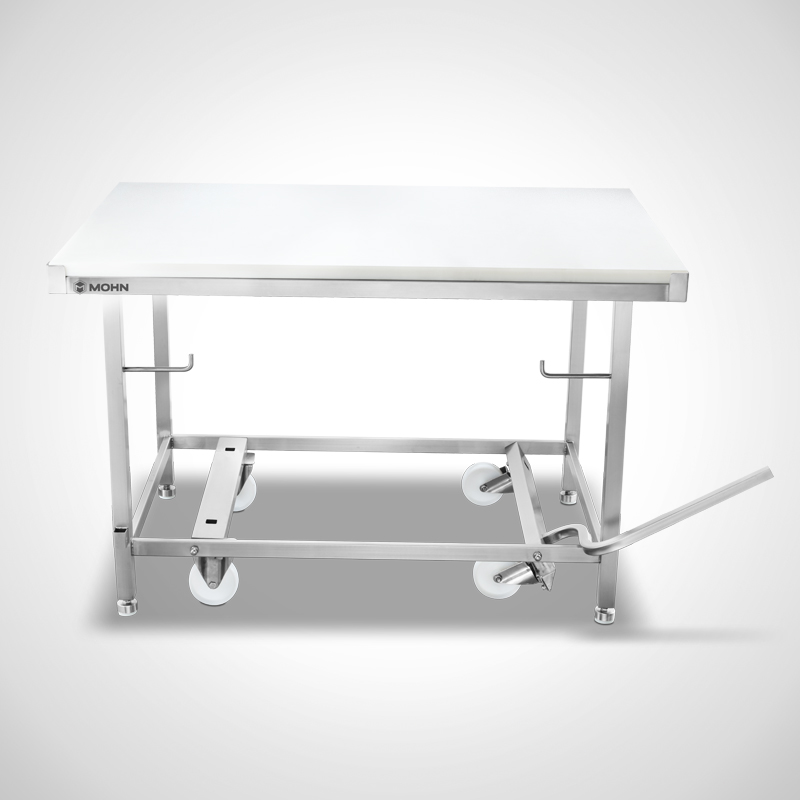

The crossbars are attached to the longitudinal struts of the table base and can be folded out and in using the operating rod supplied. A separate holder is provided on the table for storing the rod, ensuring it remains readily available at the workstation. This option is suitable for tables that need to be moved occasionally but are intended to be positioned firmly and stably during operation.
The model shown illustrates the function using a UTFI universal table as an example; however, the option is not limited to this table type. Important: The fold-out chassis cannot be retrofitted and must be specified when ordering!
Reference Photos
