Hand wash basin with rear wall (2 autom. dispenser)
Hand wash basin with rear wall (2 autom. dispenser)

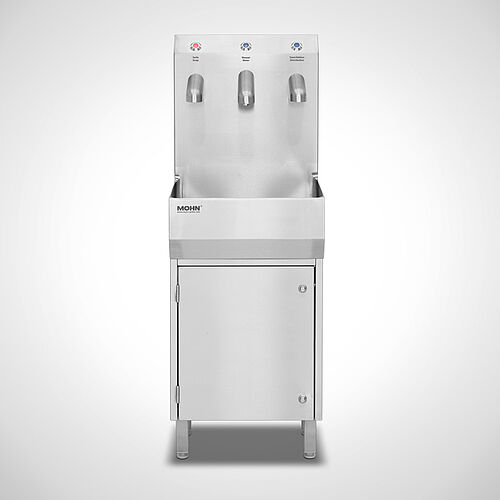

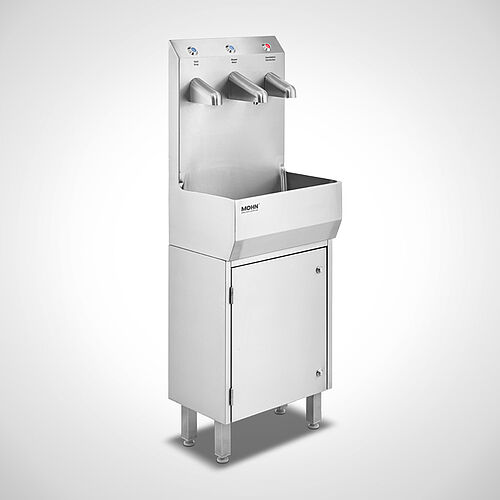

Cleancenter
Type HL-CC
Hygienic-Design - no straight surfaces
- 2 executions available
- Inner basin complete with rounded corners (radius R20)
- Stainless steel outlet tap including water-saving tap aerator
- Sensor integrated in water outlet tap, 24 V DC technology
- 2 contactless fittings for soap or disinfection application

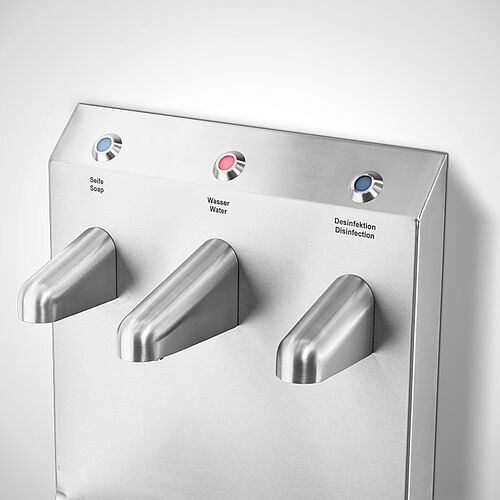

- LED-Signal light each sensor tap
- Base cabinet with hinged door for the storage of cans
- Siemens Logo control unit, freely programmable
- Thermostat mixing valve including non-return valve
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
(Pressure relief valves, siphons, sealing and small parts are not included)
Material
Rustproof stainless steel 1.4301, surface brushed
Advantages
- Maximum hygiene
- All parts without disassembly of the hand wash basin easily interchangeable!
- All corners in hand basin rounded R20
- Sensor infinitely adjustable
- Logo control (simple programming of individual controls)
- Lockable base cabinet with hinged door for safety storage of cans
description
Equipped with a freely programmable Siemens logo control for controlled cleaning of hands using two contactless soap dispensers (type HL-CC I) or for cleaning and disinfecting hands using one contactless soap and disinfectant dispenser each (type HL-CC II ) the washbasin in maximum hygiene design is ideal for integration in companies that value correct hand hygiene before entering high-risk areas.
The inner basin has completely rounded corners (radius R20) in a hygienic design. The stainless steel faucets can be easily removed from the front for service and maintenance - without dismantling the entire hand wash basin - for example for a sensor adjustment. LED signal displays above the fittings indicate the correct use of the Cleancenter. In addition, these provide optical information for any subsequent door openings, canister empty messages and error messages.
An integrated stagnant water flush is integrated using the Siemens logo control. As an option, a so-called inline temperature measurement method for automatic line flushing in the event of a temperature deviation in the cold water line (reduction of the risk of germs) can be implemented.

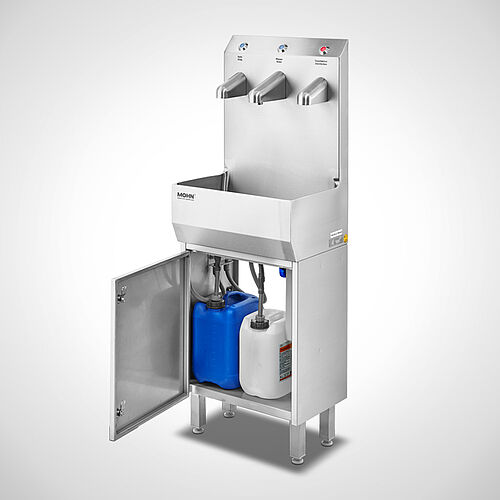

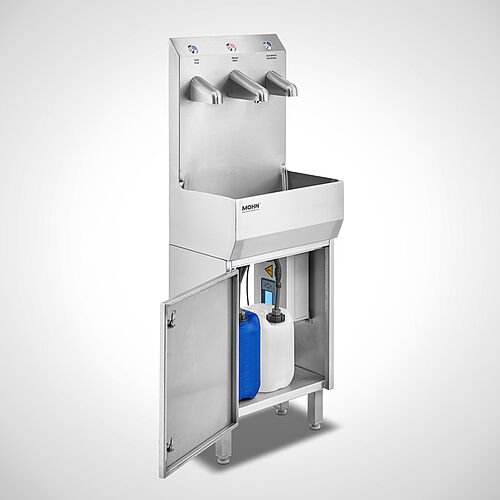

A lockable base cabinet is used for safe storage of the soap and disinfectant canisters in accordance with Food Defense and the control unit.
The hand hygiene solution can be connected to other peripheral devices such as doors, turnstiles, etc.
Options

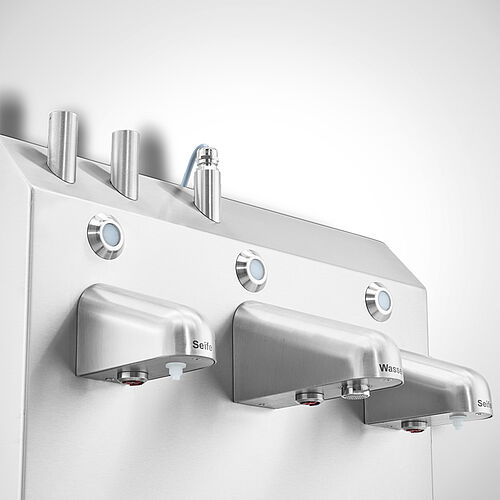

- Media supply „Power“ from top, art. no.12.00.01.37
- Media supply „mixed water“ from top 1/2", art. no. 12.00.03.38
- Media supply „cold-/ warm water“ from top 1/2", art. no. 12.00.01.38
- Flow water heater 3,5 kW, art. no. 12.00.00.68
- Inline temperature measurement method for automatic line flushing on request
Technical Data
| Power supply | 230 V 1-N/PE; 50-60 Hz |
|---|---|
| Operating voltage | 24 V, DC |
| Drain | 1 1/2" |
| Water connection | 3/4" mixing valve (HW/KW ), Operating pressure: 2,5 - 6 bar |
| Fusing | 16 A |
Reference Photos
