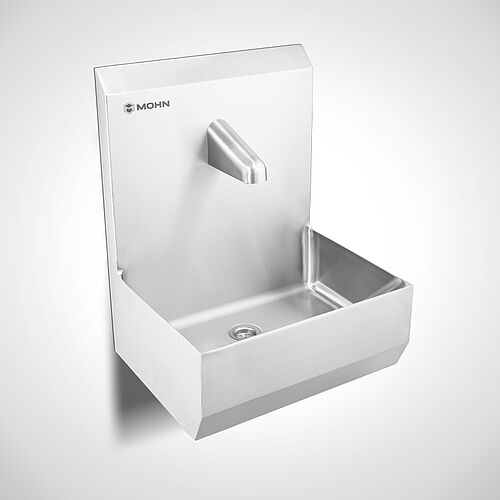

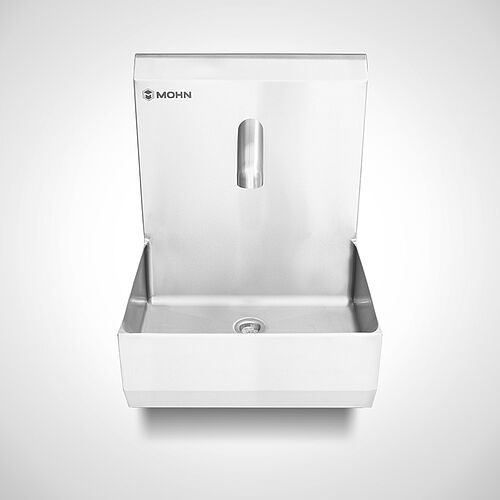

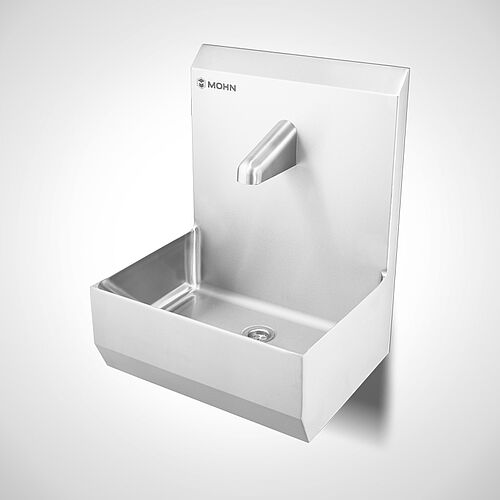

Hand wash basin with rear wall (anti-legionella)

Hand wash basin
Type HWB-HL 1/L

Hygienic-Design - no straight surfaces

  • 2 different wash basin sizes available
  • Anti-legionella bacteria flushing by means

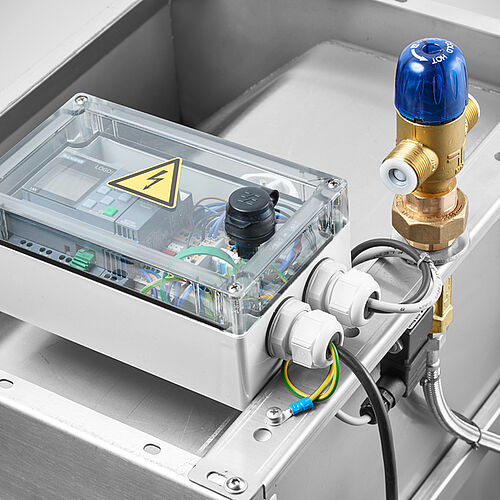

  • Siemens Logo control unit
  • Inner basin complete with rounded corners (radius R20)

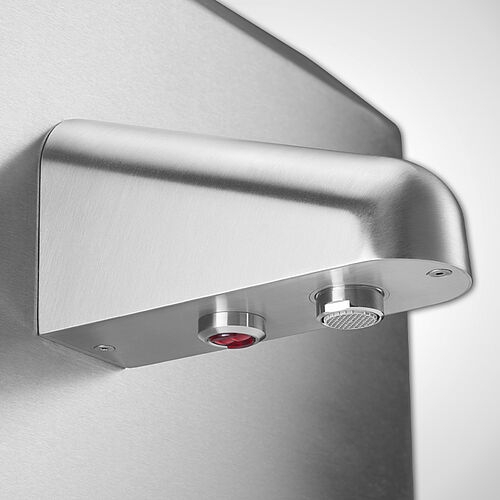

  • Stainless steel outlet tap including water-saving tap aerator
  • Sensor integrated in water outlet tap, 24 V DC technology
  • Thermostat mixing valve including non-return valve
  • Wall mounting rail

TypeVersionDimensions
W x D x H in mm
ComparePDF
 HWB-HL 1/41 L Sensor-operated500 x 410 x 64512.00.01.7112.00.01.71
 HWB-HL 1/35 L Sensor-operated500 x 350 x 64512.00.01.7612.00.01.76
Special dimensions
Rear wall with wall mounting spacers (100mm)  12000114
Rear wall panelling 12000036
Medium cover facing  12000141
Flow water heater (3.5 kW) 12000068
Foot-frame Type FG-I (4 stand feet)  12000221
Foot-frame Type FG-II (2 stand feet)  12000231
wifi adapter set Type TP-L-II  99800377
Stagnation water monitoring Type STWUE 1-4  93000099
Medium supply from top „power“  12000137
Medium supply from top „hot- and cold-water“ 1/2" IG  12000138
Medium supply from top „mixing-water“ 1/2" IG  12000338
Cold water tap (drinking tap), manually operated  22-64117
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
979
325
8
Show Lightbox Compare
Comparedata

(Pressure relief valves, siphon, sealing and small parts are not included)



Material

Made of stainless steel 1.4301/ surface brushed



Advantages

  • Maximum hygiene execution
  • All parts are interchangeable without dismounting the hand basin from the wall
  •  Indoor pool complete with rounded corners, radius R20
  • Sensor infinitely adjustable
  • SIEMENS logo control (simple programming of individual controls)



Options

  • Medium supply „Power“ from top, article no. 12.00.01.37
  • Medium supply „Water“ from top, 1/2", article no. 12.00.01.39
  • Flow water heater (3.5 kW), article no. 12.00.00.68
  • Rear wall panelling (with stand-alone), article no. 12.00.00.36
  • Wall spacer (100 mm) type HWB-RV/AH, article no. 12.00.01.14
  • Medium cover facing, article no. 12.00.01.41



Foot frames/ substructures

  • Foot frame type FG-I (square tube profile rack - 4 feet), art. no. 12.00.02.21
  • Foot frame type FG-II (square tube profile rack for cove - 2 feet), art. no. 12.00.02.31
  • Base cabinet with hinged door, art. no. 12.00.01.31

Technical Data

Power supply230 V; 50/60 Hz
Operating voltage24 V DC/ fuse 16 A
Drain1 1/2"
Water connection3/4" (cold + warm water)
Line pressuremin 2,5 bar, max. 6 bar
