Multiple hand wash basin, sensor-operated
Multiple hand wash basin, sensor-operated
Multiple hand wash basin
Type WR-HL 2-5
Hygienic-Design- No straight surfaces - Deliverable up to 5 washing places
- 2 washbasin depths available

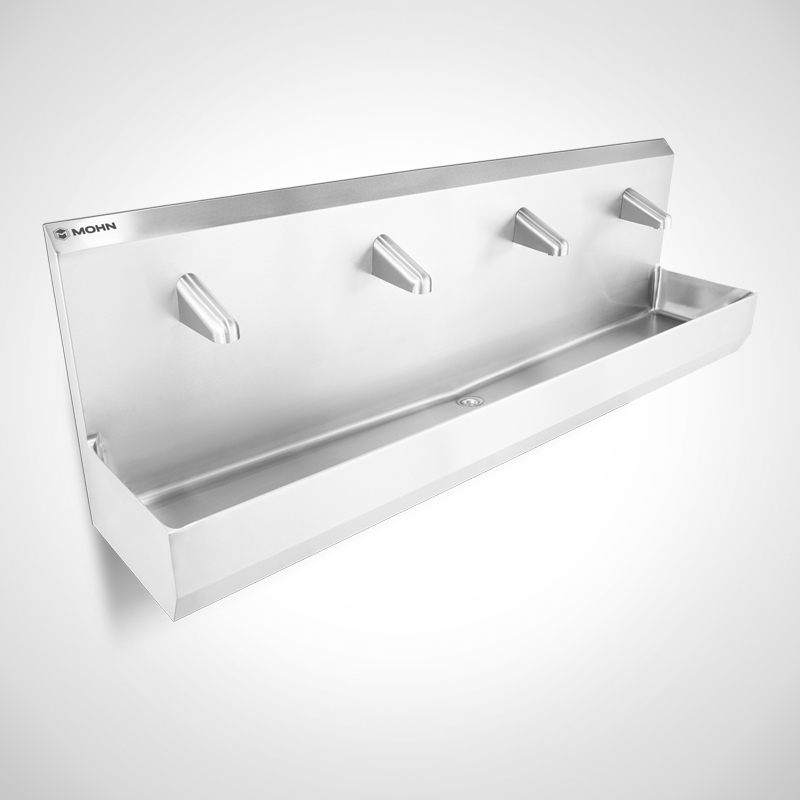

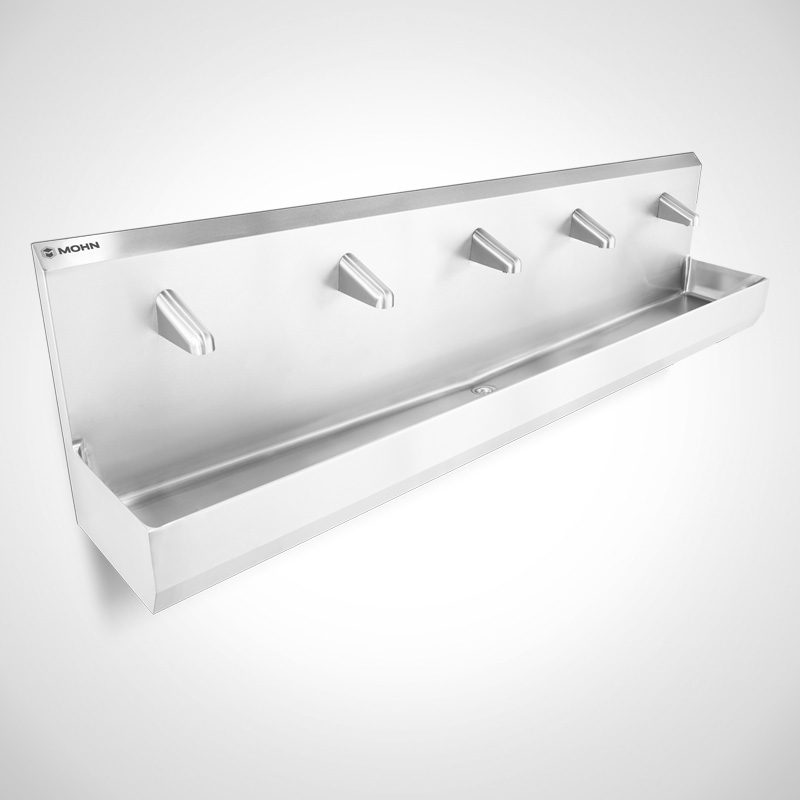

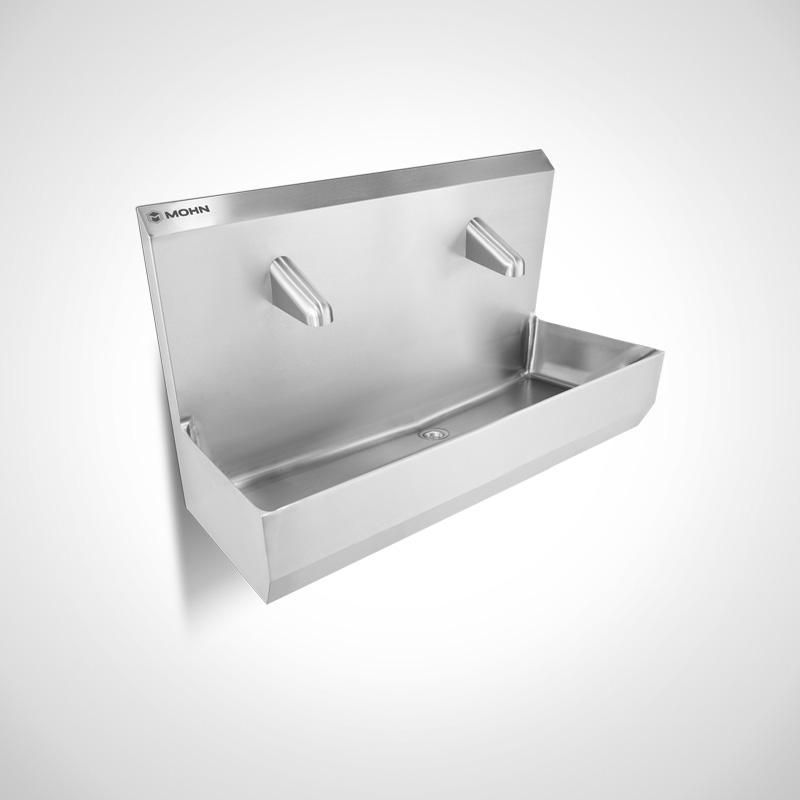

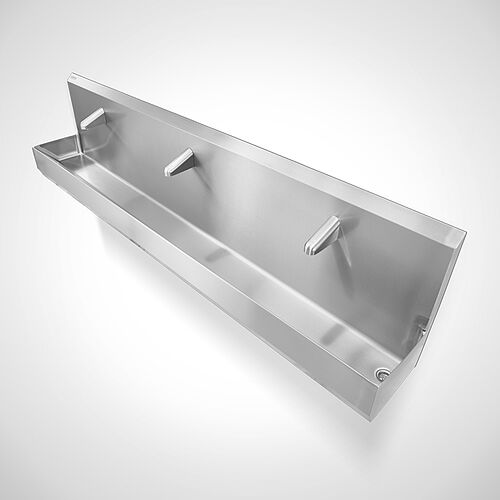

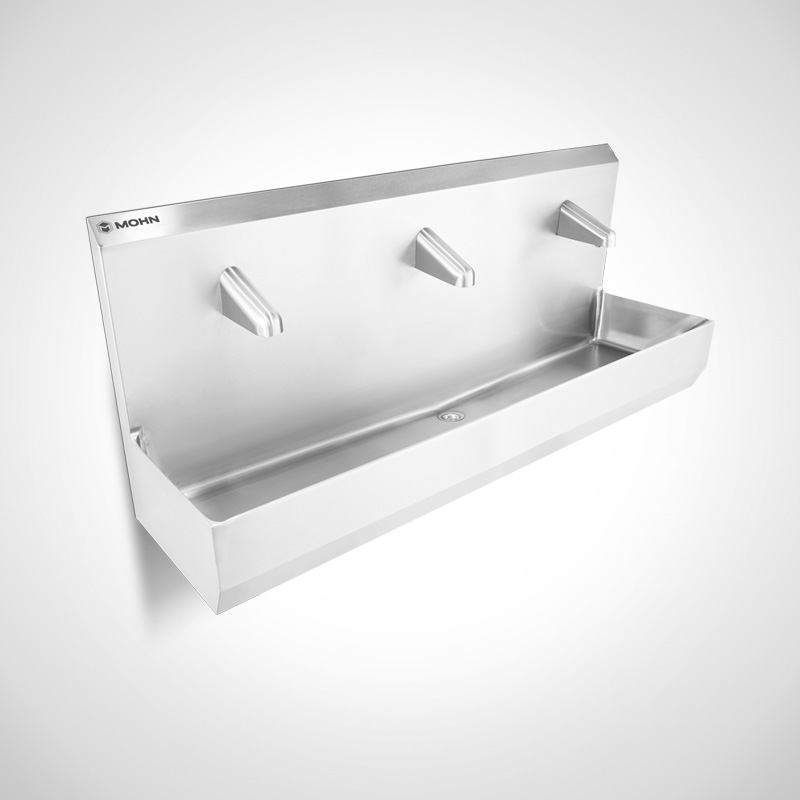

- Depending on the version with 2-5 washing places
- Wash place width: 500 mm
- Inner basin complete with rounded corners (R20)
- Stainless steel outlet tap including water-saving tap aerator

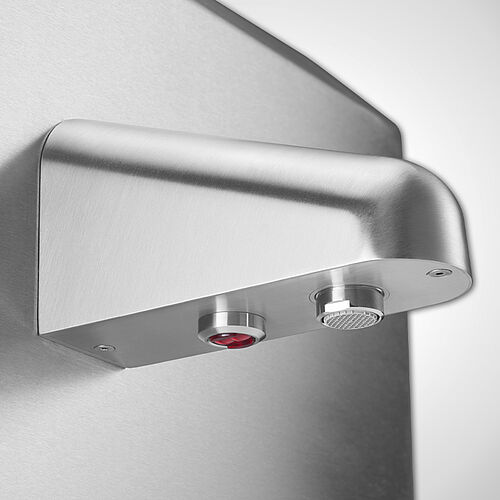

- Sensor integrated in water outlet tap (range infinitely adjustable)
- Equipped with high quality relay control as standard
- Easy-adjustable sensor in outlet tap
- Thermostat mixing valve including non-return valve
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
1267
339
Show Lightbox Compare Comparedata
Material
Made of rustproof stainless steel 1.4301
Advantages
- Maximum hygiene execution
- All parts are interchangeable without dismounting the wash basin from the wall!
- Inner basin complete with rounded corners (radius R20)
- Sensoric range infinitely adjustable
- SIEMENS LOGO control! (easy programmable) - optionally
Options
- Medium supply „Power“ from top, Article no. 12.00.01.37
- Medium supply „Water“ from top, Article no. 12.00.01.39
- Flow water heater (11 -13.5 kW), Article no. 12.00.00.78
- Rear wall panelling (with stand-alone) on request
- Wall spacer (100 mm) on request
- Medium facing sheet on request
Foot frames/ substructures
- Foot frame type FG-I (square tube profile rack - 4 feet) on request
- Foot frame type FG-II (square tube profile rack for cove - 2 feet) on request
Technical Data
Power supply | 230 V; 50/60 Hz, 16A |
---|---|
Operating voltage | 24 V DC |
Drain | 1 1/2" - center |
Water connection | 3/4" (cold- + warmwater) |
Line pressure | min 2,5 bar, max. 6 bar |
Downloads
Video

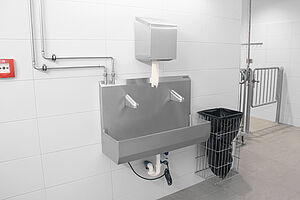

Multiple wash basin with stagnant water flush within a staff hygiene lock planned in the room.
Multiple wash basin with stagnant water flush within a staff hygiene lock planned in the room.
Accessories
Inner basin
"Hygienic-Design" inner basin complete with rounded corners (radius R20) - without welds and joints.
Mixing valve
The automatic thermostatic mixing valve with non-return valve ensures a constant mixed water temperature.

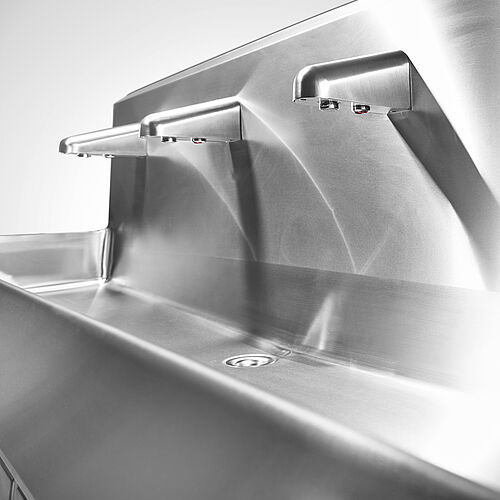

Sensor
Sensor with background suppression integrated in the tap. Easy and quick replacement of sensors for maintenance purposes.
Wall spacer
Optionally available wall spacers (100 mm) allow cleaning behind the basin. The area facing the wall is open and can be seen.
