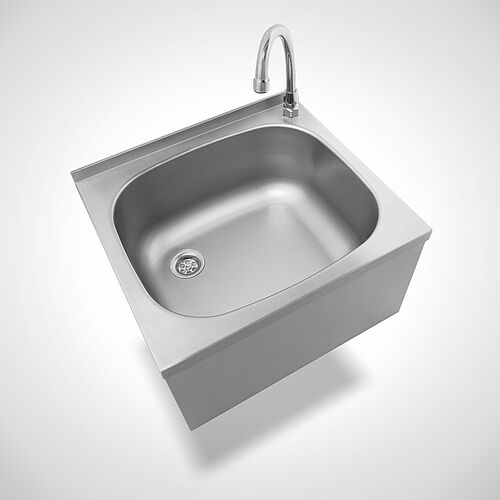

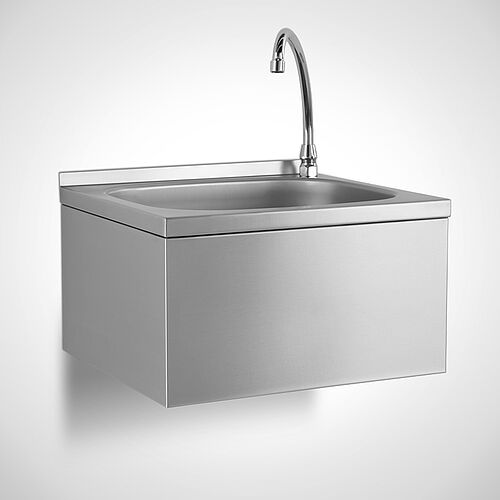

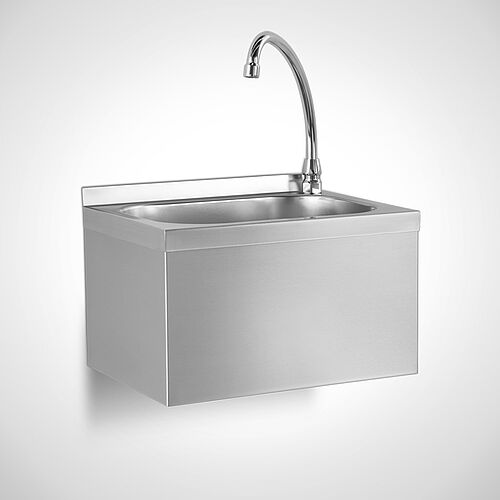

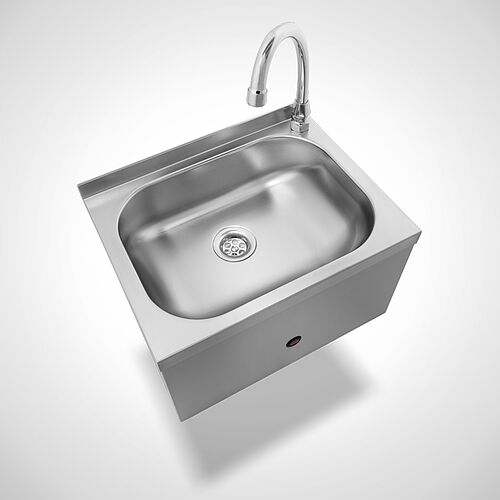

Hand wash basin without rear wall (standard)

Hand wash basin
Type HWB-K/-S

Standard hand wash basin without rear wall

  • Optionally sensor or knee operation
  • Wall-mounted by means of mounting rail
  • Water outlet tap + jet regulator chromed
  • Pre-mixer for stepless temperature control
  • Sensor range adjustable (type HWB-S)
  • Self-closing valve for knee operation (type HWB-K)

TypeVersionBasin size (w x d x h)Dimensions
W x D x H in mm
ComparePDF

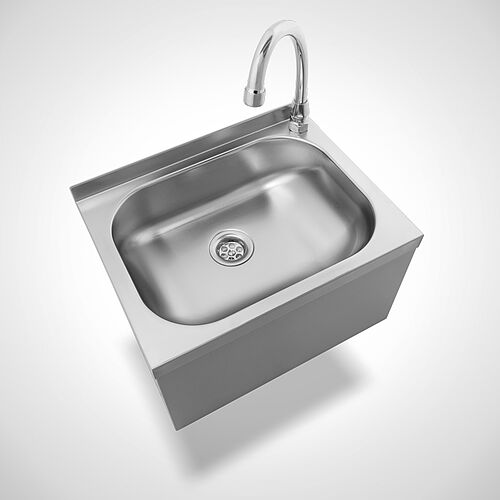

HWB-K 40*Knee-operation340 x 240 x 150400 x 320 x 24011.00.00.0011.00.00.00
HWB-K 47*Knee-operation370 x 340 x 150470 x 410 x 24011.00.00.0211.00.00.02

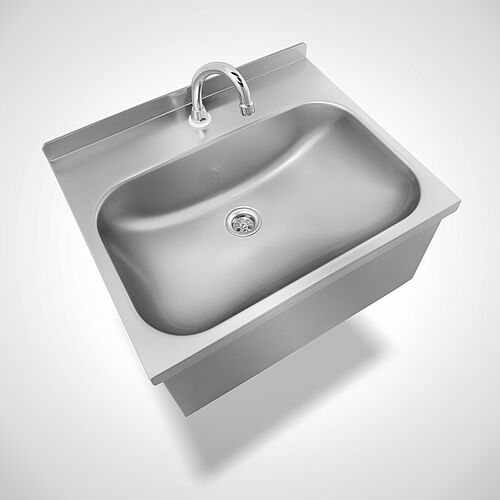

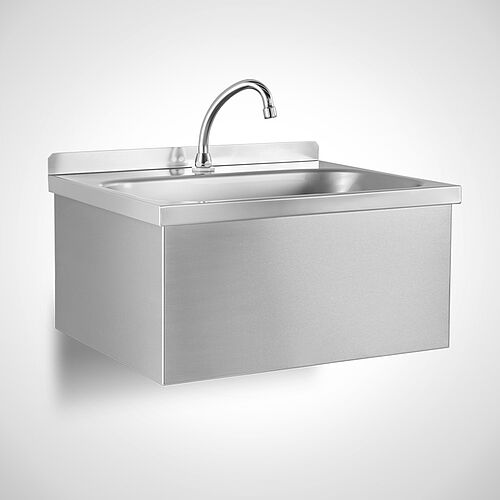

HWB-K 55*Knee-operation500 x 310 x 150550 x 450 x 24011.00.00.0411.00.00.04

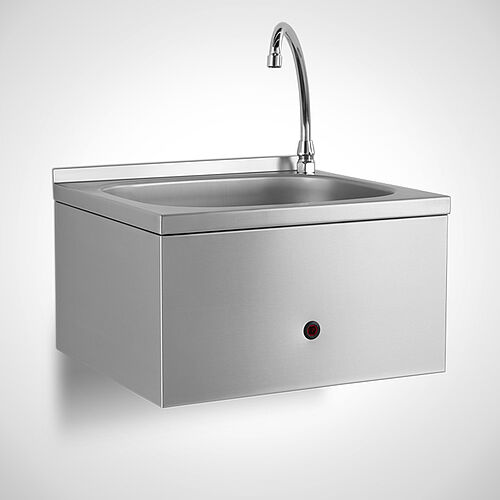

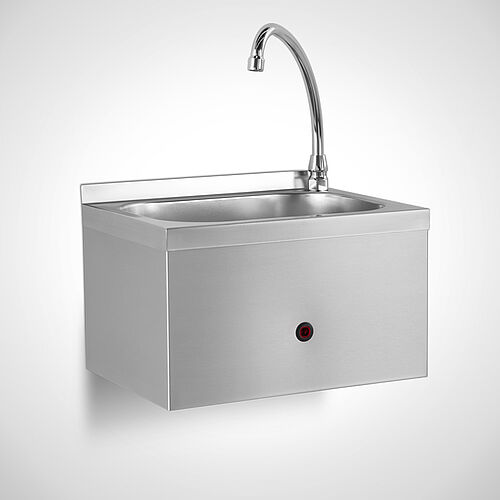

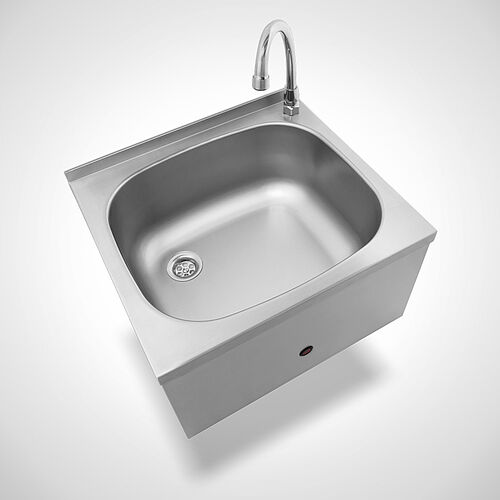

HWB-S 40*Sensor-operation340 x 240 x 150400 x 320 x 24011.00.00.1111.00.00.11
HWB-S 47*Sensor-operation370 x 340 x 150470 x 410 x 24011.00.00.1211.00.00.12

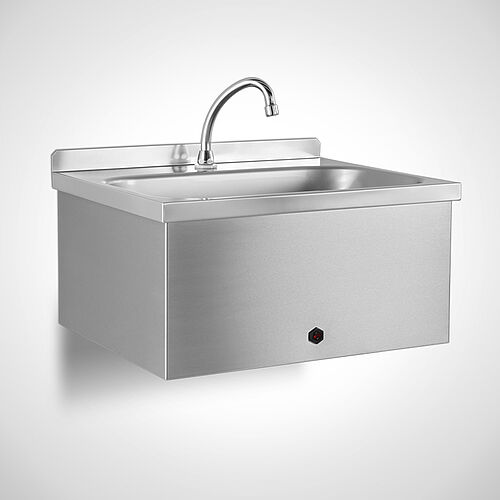

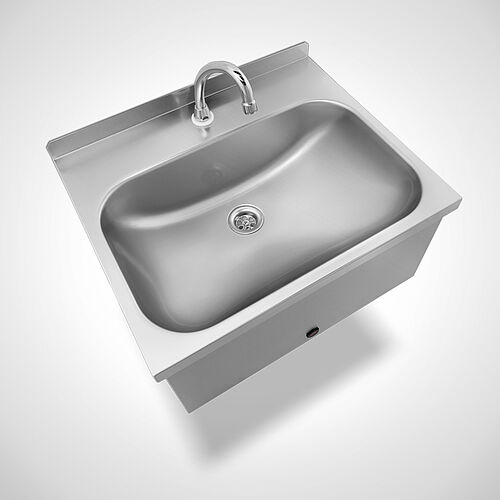

HWB-S 55*Sensor-operation500 x 310 x 150550 x 450 x 24011.00.00.0311.00.00.03
Special dimensions
Boiler, 3,5 kW 12000080
Thermostat mixing valve 93000001
Anti-legionella system (only HWB-S) 99870085
*Legend: HWB-K 40/47+HWB-S 40/47=Outlet lateral, HWB-K 55+HWB-S 55=Outlet centrical
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
675
329
8
Show Lightbox Compare
Comparedata

Material

Stainless steel 1.4301



Information

Piping / hoses, siphon, sealing and small parts are not included!



Advantages

  • Basin seamlessly intergrated
  • 3-sided blinded

Technical Data

Power supply230 V; 50/60 Hz (Type HWB-S)
DrainDN 40
Water connection1/2" (cold + warm water)
Fusing16 A
Line pressuremin. 2,5 bar, max. 6 bar
Water outflow height200 mm
