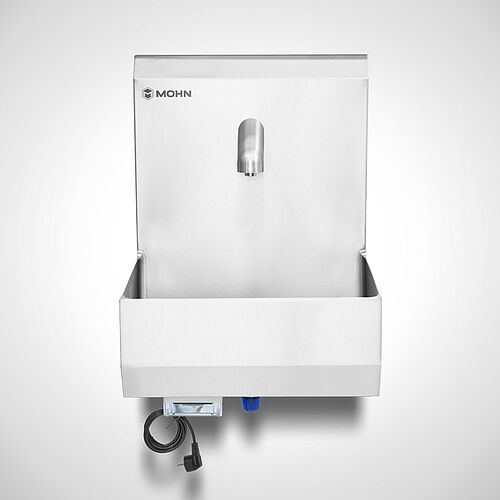

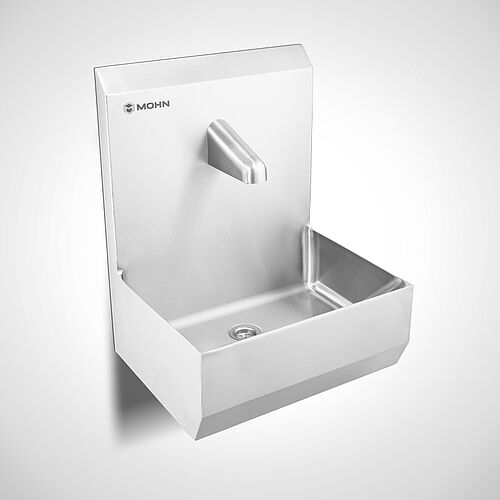

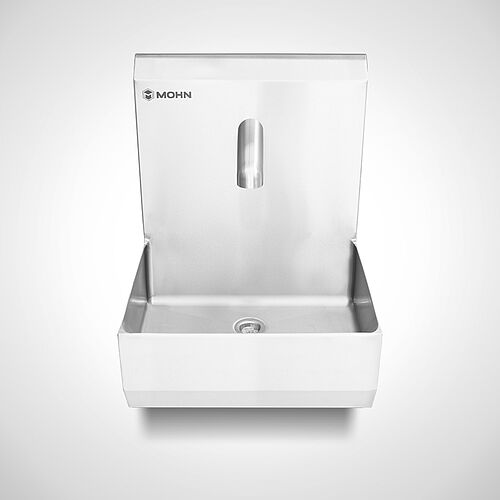

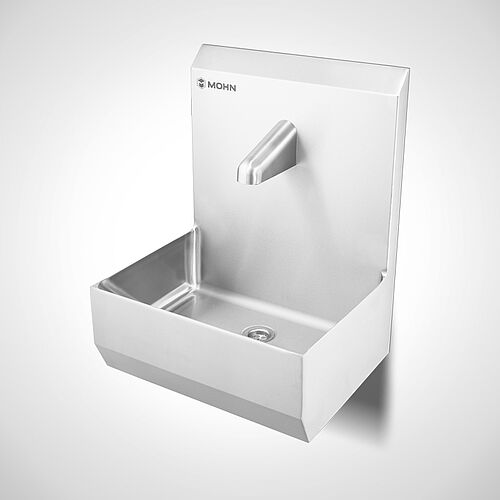

Hand wash basin with rear wall (sensor-activated)
Hand wash basin with rear wall (sensor-activated)
Hand wash basin
Type HWB-HL 1
"Hygienic-Design" - No straight surfaces
- 2 washbasin depths available
- All corners in hand basin rounded R20
- Stainless steel outlet tap including water-saving tap aerator
- Easy-adjustable touch-free sensor in outlet tap
- Equipped with high quality relay control as standard
- Wall side with 400 mm high stainless steel rear panel
- Wall mounting rail
- Thermostat mixing valve including check valve
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
(Pressure relief valves, siphons, sealing and small parts are not included)
Material
Rustproof stainless steel 1.4301, surface brushed
Advantages
- Maximum hygiene
- All parts are interchangeable without dismounting the hand basin from the wall
- Inner basin complete with rounded corners throughout (radius R20)
- Sensor infinitely adjustable
- Logo control (simple programming of individual controls) - optionally -
Options
- Medium supply „Power“ from top, article no. 12.00.01.37
- Medium supply „Water“ from top, 1/2", article no. 12.00.01.39
- Flow water heater (3.5 kW), article no. 12.00.00.68
- Rear wall panelling (with stand-alone), article no. 12.00.00.36
- Wall spacer (100 mm) type HWB-RV/AH, article no. 12.00.01.14
- Medium cover facing, article no. 12.00.01.41
Foot frames/ substructures
- Foot frame type FG-I (square tube profile rack - 4 feet), art. no. 12.00.02.21
- Foot frame type FG-II (square tube profile rack for cove - 2 feet), art. no. 12.00.02.31
- Base cabinet with hinged door, art. no. 12.00.01.31
Technical Data
| Power supply | 230 V; 50/60 Hz |
|---|---|
| Operating voltage | 24 V DC/ fuse 16 A |
| Drain | 1 1/2" |
| Water connection | 3/4" (cold + warm water)* |
| Line pressure | min 2,5 bar, max. 6 bar |
Reference Photos
Downloads
Accessories
Protection archs
Type RSB
Dryrack
Type DR
Paper Towel Dispenser
Type HTSP
Universal Dispenser
Type USP
Paper baskets
Type PK-D
Waste Baskets
Type PK-E
Hand drier
Type Jet-2
Roll box
Type RB-E
Universal dispenser
Type USP-E-VA
Towel dispenser
Type HTSP-E-VA
Garbage bag holder
Type MSH / RH-SF
Stainless steel mirror
Type ESP
Glove dispenser
Type HSD
Disposable glove dispenser
Type EHS
Utensil dispenser
Type US
Apron dispenser
Type ESS-1
Apron dispenser
Type ESS-2
Disposable paper dispenser
Type EPA
Disposable protective goggle dispenser
Type EBS
Disposable workcoat / overall dispenser
Type EKS
Disposable Multi dispenser
Type EMSInner basin
"Hygienic-Design" inner basin complete with rounded corners (radius R20) - without welds and joints.

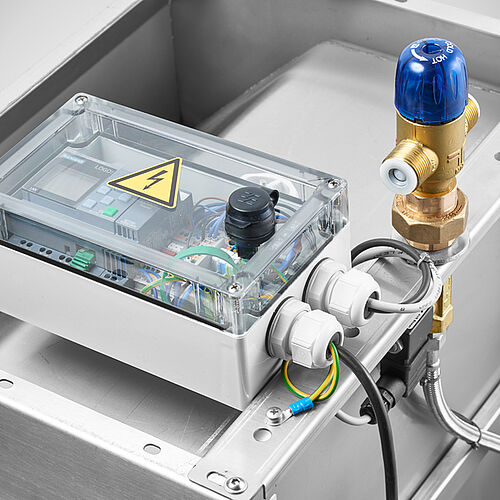

Mixing valve
The automatic thermostatic mixing valve with non-return valve ensures a constant mixed water temperature.
Outlet tap
Outlet tap manufactured in "hygienic design".
Sensor
Sensor with background suppression integrated in the tap. Easy and quick replacement of sensors for maintenance purposes.
Wall spacer
Optionally available wall spacers (100 mm) allow cleaning behind the basin. The area facing the wall is open and can be seen.
Siemens Control
User-friendly SIEMENS-LOGO control. Optionally available.
WLAN adapter
WLAN adapter for connection in conjunction with a SIEMENS LOGO control with Ethernet connection to a WLAN network.
Optionally available.
