Stainless steel combi rack (welded)
Stainless steel combi rack (welded)

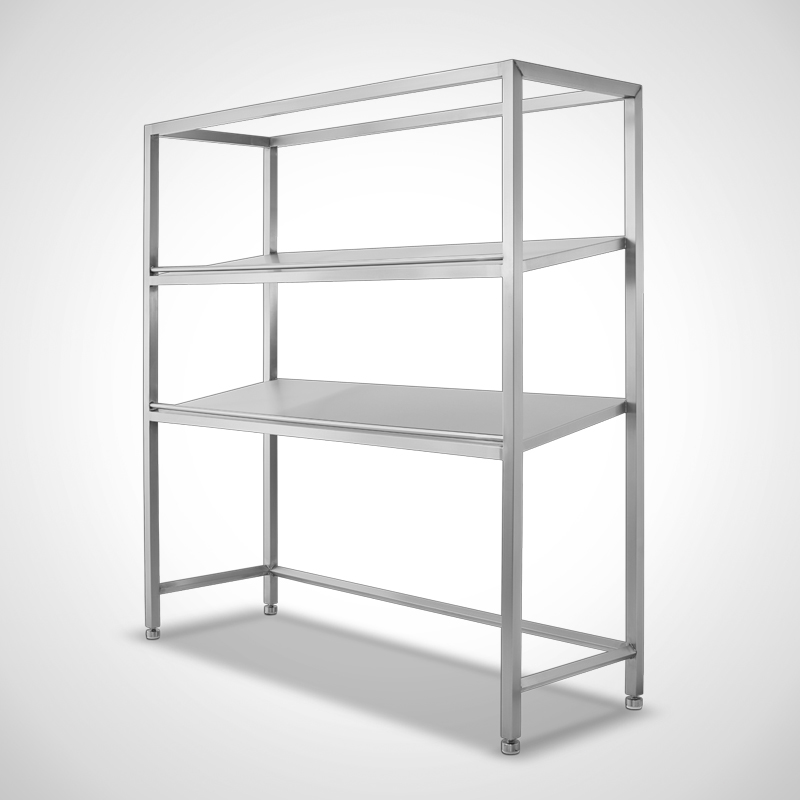

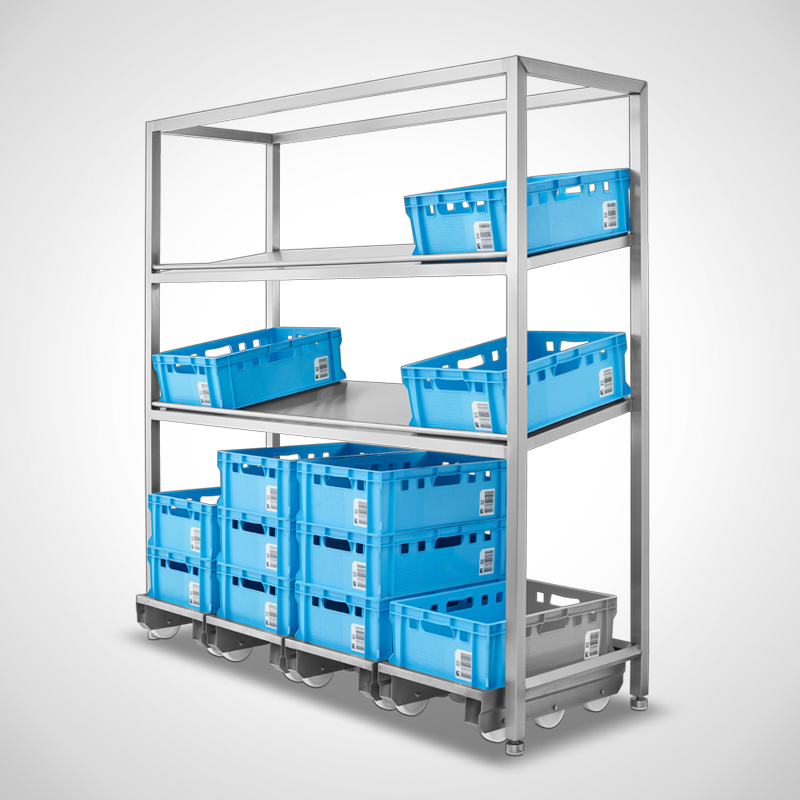

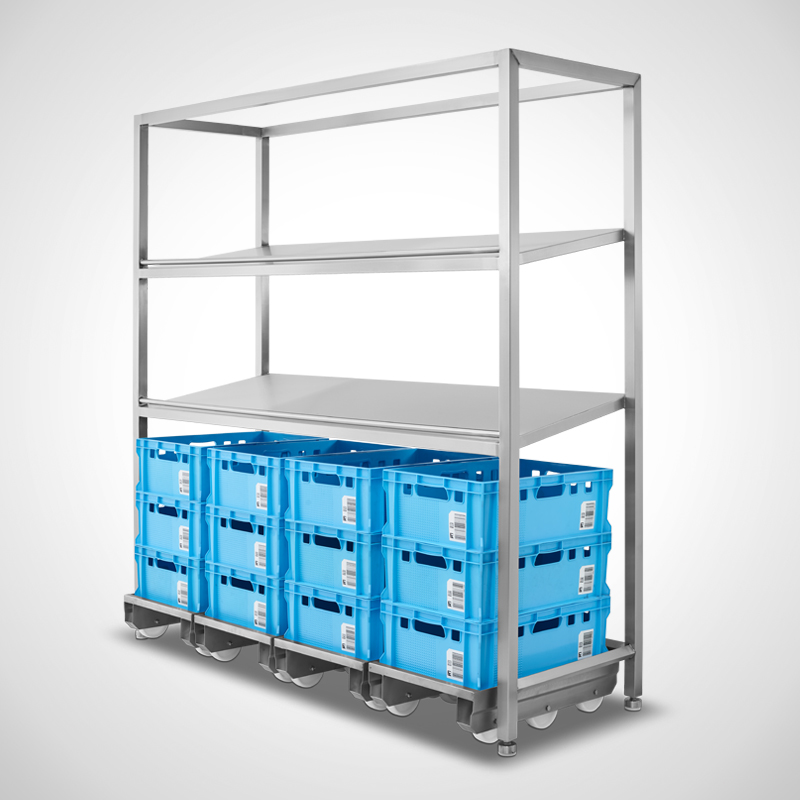

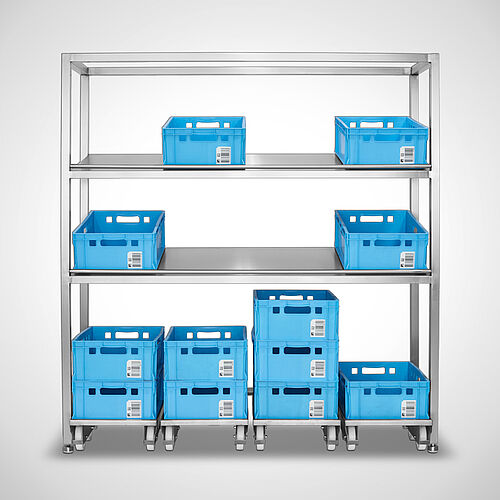

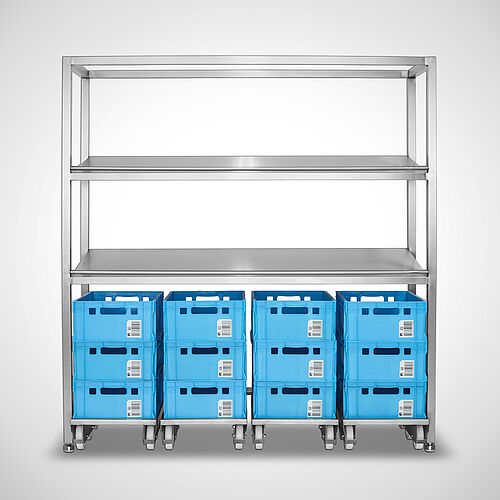

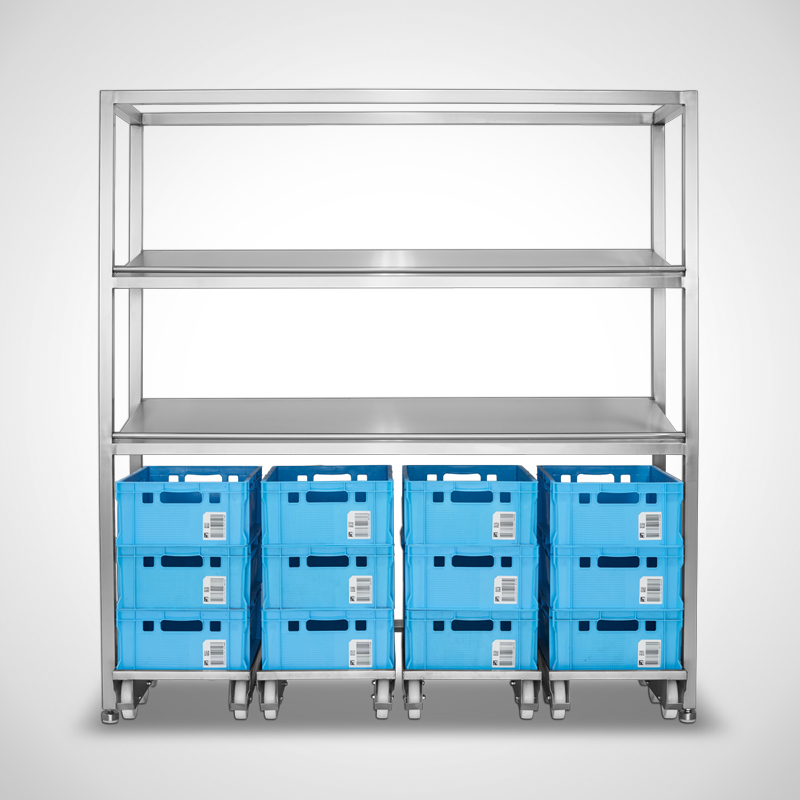

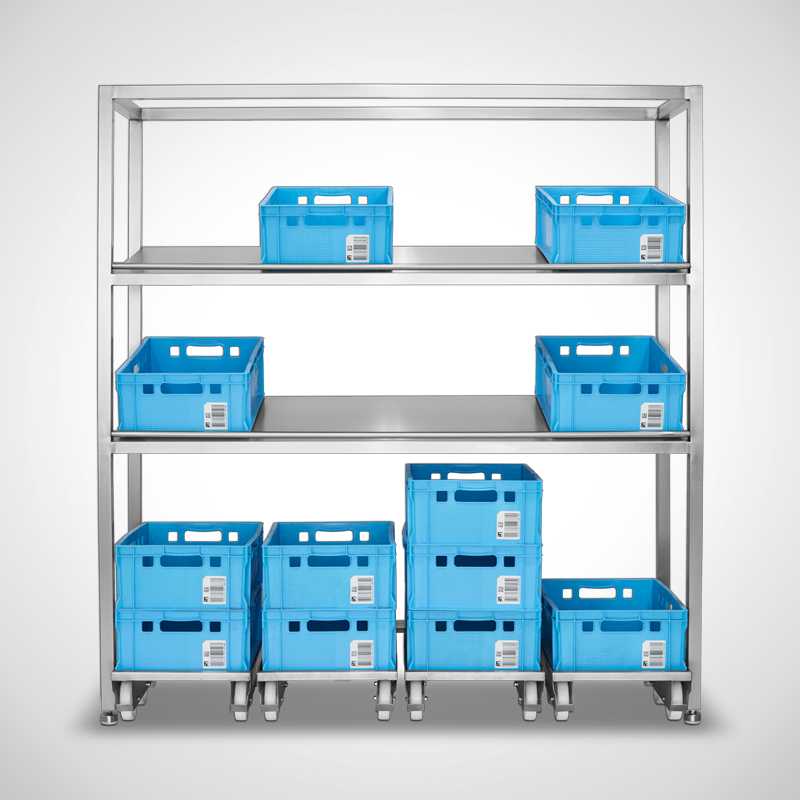

Stainless steel combination rack (storage rack) type LR-E/U 2/4/4, art. no. 39.01.01.14 with optional top frame
Stainless steel combination rack (storage rack) type LR-E/U 2/4/4, art. no. 39.01.01.14 with optional top frame
Stainless steel combination rack (storage rack) type LR-E/U 2/4/4, art. no. 39.01.01.14 with optional top frame
Combination storage rack
type LR-E/U
COMBINED STORAGE OF YOUR EURONORM CONTAINERS IN ACCORDANCE WITH DIN EN 55423
- 2-level storage rack with wheelchair-accessible bays
- Sturdy welded design
- With 2 closed shelves with slope as standard, 150 mm higher at the rear
- Level spacing 500 mm
- Base plate 1.0 mm reinforced with hat profile
- Hygienic round tube profile (Ø 20 x 1.5 mm) on the operator side
- Without top frame (optionally available)
- U-shaped substructure on 3 sides - in "hygienic design" - diamond profile braced
- Tubular profile frame construction 30 x 30 x 1.5 mm (bracing)
- Profile tube frame construction 40 x 40 x 1.5 mm (feet)
- 4 height-adjustable plastic screw feet (+/- 30 mm)
- Ground clearance 800 mm (front) for driving under stainless steel trolleys with containers
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Supplied without containers and stainless steel trolleys.
Material
Made of 18/10 stainless steel material no. 1.4301.
The externally visible stainless steel sheet surfaces have a polished 320 grit finish.
The externally visible stainless steel profile surfaces, such as profile tube supports, have a uniform brushed finish.
Options
- Mobile using 4 swivel castors, 2 with brakes (height = +155 mm), article no. 39.91.00.08
- Top frame on request
