Plastic rack (pluggable)
Plastic rack (pluggable)

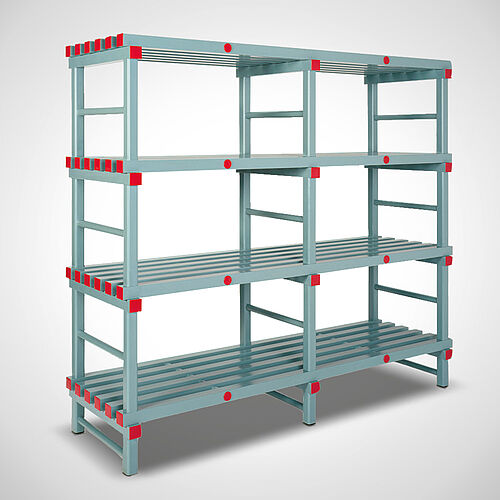

Storage system
Type LS
Storage systems simplifies sorting and creates space
- Easy mounting by special sticking system
- Available shelf lengths: 1000, 1200, 1400, 1500, 1800 and 2000 mm
- Shelf depth from 300 to 600 mm (100 mm spacing grid)
- Profiles: 50 x 50 mm
- External overhang: 25 mm each
- Level spacing selectable from 100 mm to 500 mm
- Max. Clear dimension (width): 1000 mm
- Standard supporting feet, not height-adjustable
- Ground clearance: 120 mm (supporting feet) / 170 mm (mobile)
- Shelves open (optional: removable shelves)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of food-safe plastic
Advantages
- Tested and certified by RW/TÜV; GS mark (proven safety)
- Hygienically according to HACCP requirements
- Temperature-resistant from -40°C to +80°C
- Stable and impact-resistant, load-carrying capacity 200 kg per running
- Resitant against salts and acids
Options
- Mobile by means of 4 castors, 2 with stop, Article no. 44.10.01.01

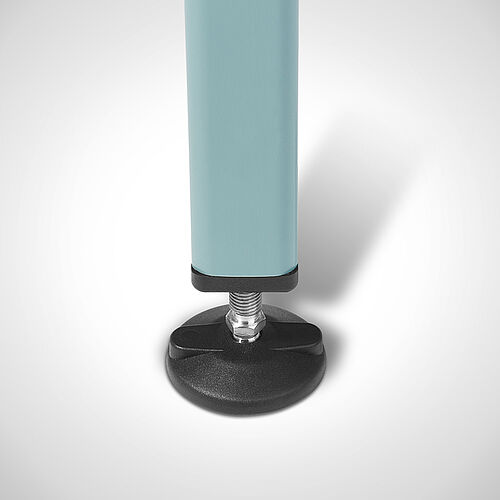

- Height-adjustable screw feet from 200 mm ground clearance, Article no. 44.10.01.02

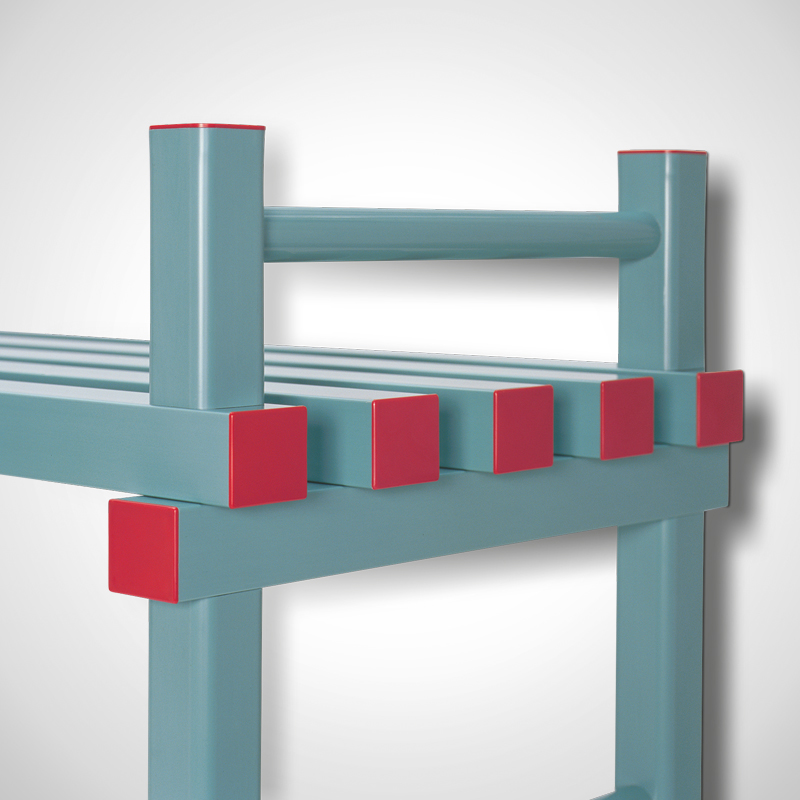

- Top supports, sideways (height: +150 mm) on request

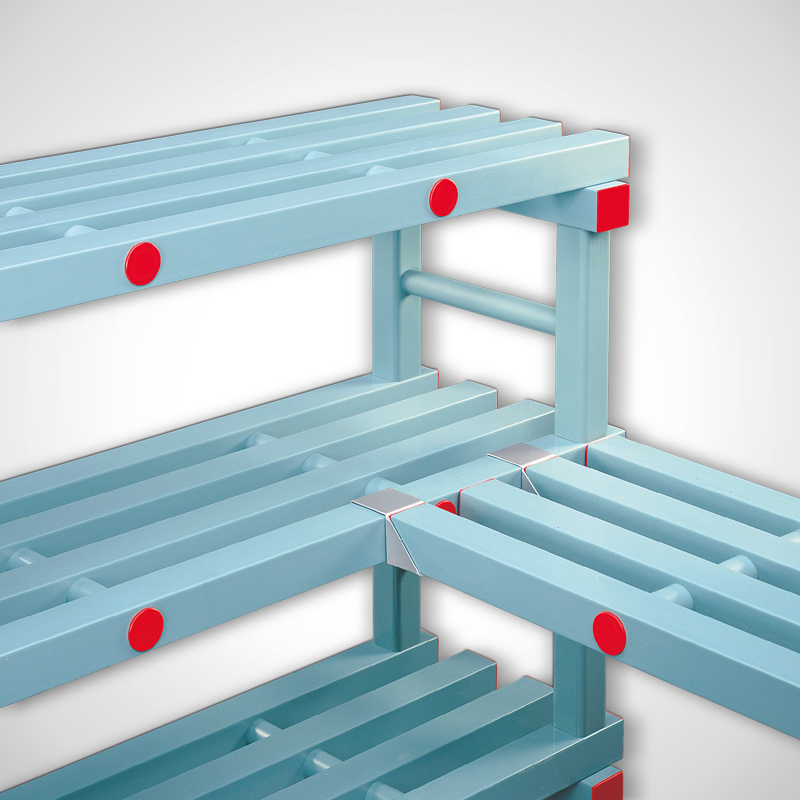

- Corner connectors for shelves which can be hung up (corner shelf) on request
- Removable shelves (white) for small products on request
