Worktable base frame: intermediate shelf

Worktable base frame: intermediate shelf

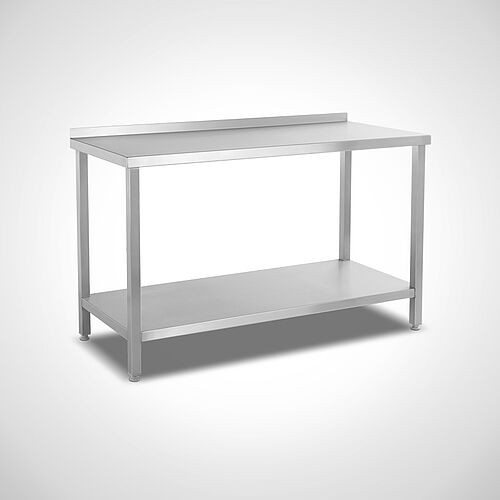

Stainless steel worktable with shelf type AT-B-120-60, art. no. 21.00.03.08, with rear worktop upstand Stainless steel worktable with shelf type AT-B-120-60, art. no. 21.00.03.08, with rear worktop upstand
Stainless steel worktable with shelf type AT-B-120-60, art. no. 21.00.03.08, without rear worktop upstandStainless steel worktable with shelf type AT-B-120-60, art. no. 21.00.03.08, without rear worktop upstand

Work tables
Type AT-B

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel 1.4301
  • Table top with 1.5 mm material thickness
  • Table top chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile, Load up to max. 200 kg (equally distributed load)
  • Lower structure with 1 intermediate shelf, fixed welded
  • 4 or 6 height-adjustable plastic screw feet (+/- 30 mm)
  • From 2,500 mm length with 6 supporting feet
  • Standard ground clearance: 150 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Table depth: 600 mm
AT-B 60-60600 mm600 x 600 x 85021.00.03.02
AT-B 70-60600 mm700 x 600 x 85021.00.03.03
AT-B 80-60600 mm800 x 600 x 85021.00.03.04
AT-B 90-60600 mm900 x 600 x 85021.00.03.05
AT-B 100-60600 mm1000 x 600 x 85021.00.03.06
AT-B 110-60600 mm1100 x 600 x 85021.00.03.07
AT-B 120-60600 mm1200 x 600 x 85021.00.03.08
AT-B 130-60600 mm1300 x 600 x 85021.00.03.09
AT-B 140-60600 mm1400 x 600 x 85021.00.03.10
AT-B 150-60600 mm1500 x 600 x 85021.00.03.11
AT-B 160-60600 mm1600 x 600 x 85021.00.03.12
AT-B 170-60600 mm1700 x 600 x 85021.00.03.13
AT-B 180-60600 mm1800 x 600 x 85021.00.03.14
AT-B 190-60600 mm1900 x 600 x 85021.00.03.15
AT-B 200-60600 mm2000 x 600 x 85021.00.03.16
AT-B 210-60600 mm2100 x 600 x 85021.00.03.17
AT-B 220-60600 mm2200 x 600 x 85021.00.03.18
AT-B 230-60600 mm2300 x 600 x 85021.00.03.19
AT-B 240-60600 mm2400 x 600 x 85021.00.03.20
AT-B 250-60600 mm2500 x 600 x 85021.00.03.21
AT-B 260-60600 mm2600 x 600 x 85021.00.03.22
AT-B 270-60600 mm2700 x 600 x 85021.00.03.23
AT-B 280-60600 mm2800 x 600 x 85021.00.03.24
AT-B 290-60600 mm2900 x 600 x 85021.00.03.25
Table depth: 700 mm
AT-B 60-70700 mm600 x 700 x 85021.00.03.37
AT-B 70-70700 mm700 x 700 x 85021.00.03.38
AT-B 80-70700 mm800 x 700 x 85021.00.03.39
AT-B 90-70700 mm900 x 700 x 85021.00.03.40
AT-B 100-70700 mm1000 x 700 x 85021.00.03.41
AT-B 110-70700 mm1100 x 700 x 85021.00.03.42
AT-B 120-70700 mm1200 x 700 x 85021.00.03.43
AT-B 130-70700 mm1300 x 700 x 85021.00.03.44
AT-B 140-70700 mm1400 x 700 x 85021.00.03.45
AT-B 150-70700 mm1500 x 700 x 85021.00.03.46
AT-B 160-70700 mm1600 x 700 x 85021.00.03.47
AT-B 170-70700 mm1700 x 700 x 85021.00.03.48
AT-B 180-70700 mm1800 x 700 x 85021.00.03.49
AT-B 190-70700 mm1900 x 700 x 85021.00.03.50
AT-B 200-70700 mm2000 x 700 x 85021.00.03.51
AT-B 210-70700 mm2100 x 700 x 85021.00.03.52
AT-B 220-70700 mm2200 x 700 x 85021.00.03.53
AT-B 230-70700 mm2300 x 700 x 85021.00.03.54
AT-B 240-70700 mm2400 x 700 x 85021.00.03.55
AT-B 250-70700 mm2500 x 700 x 85021.00.03.56
AT-B 260-70700 mm2600 x 700 x 85021.00.03.57
AT-B 270-70700 mm2700 x 700 x 85021.00.03.58
AT-B 280-70700 mm2800 x 700 x 85021.00.03.59
AT-B 290-70700 mm2900 x 700 x 85021.00.03.60
Table depth: 800 mm
AT-B 60-80800 mm600 x 800 x 85021.00.31.00
AT-B 70-80800 mm700 x 800 x 85021.00.31.01
AT-B 80-80800 mm800 x 800 x 85021.00.31.02
AT-B 90-80800 mm900 x 800 x 85021.00.31.03
AT-B 100-80800 mm1000 x 800 x 85021.00.31.04
AT-B 110-80800 mm1100 x 800 x 85021.00.31.05
AT-B 120-80800 mm1200 x 800 x 85021.00.31.06
AT-B 130-80800 mm1300 x 800 x 85021.00.31.07
AT-B 140-80800 mm1400 x 800 x 85021.00.31.08
AT-B 150-80800 mm1500 x 800 x 85021.00.31.09
AT-B 160-80800 mm1600 x 800 x 85021.00.31.10
AT-B 170-80800 mm1700 x 800 x 85021.00.31.11
AT-B 180-80800 mm1800 x 800 x 85021.00.31.12
AT-B 190-80800 mm1900 x 800 x 85021.00.31.13
AT-B 200-80800 mm2000 x 800 x 85021.00.31.14
AT-B 210-80800 mm2100 x 800 x 85021.00.31.15
AT-B 220-80800 mm2200 x 800 x 85021.00.31.16
AT-B 230-80800 mm2300 x 800 x 85021.00.31.17
AT-B 240-80800 mm2400 x 800 x 85021.00.31.18
AT-B 250-80800 mm2500 x 800 x 85021.00.31.19
AT-B 260-80800 mm2600 x 800 x 85021.00.31.20
AT-B 270-80800 mm2700 x 800 x 85021.00.31.21
AT-B 280-80800 mm2800 x 800 x 85021.00.31.22
AT-B 290-80800 mm2900 x 800 x 85021.00.31.23
Special dimensions
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Hygienic Design castor set type HLR-SET  29100103
Table leg height adjustment "Easy"  21000886
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

 All Dimension in mm. Other designs on request!



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.

The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish




Options

  • With drawers
  • With drawers-locker right and/ or left (Type SR/SL)
  • Mobile with 2-trestle rolls and 2 steering-rolls with stops, Ø125 mm, art.-no. 99.90.01.50
  • Manual resp. electric height-adjustable table top on request
