Worktable base frame: U-strutting

Worktable base frame: U-strutting

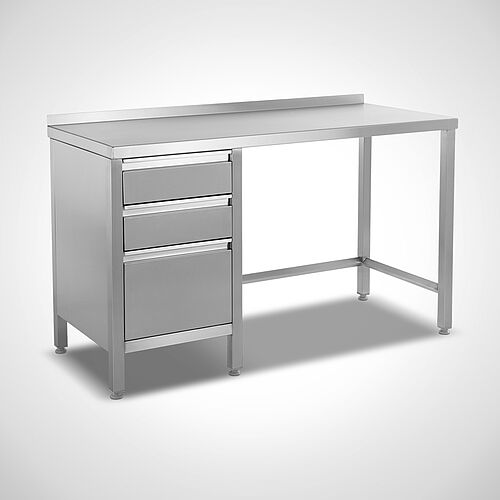

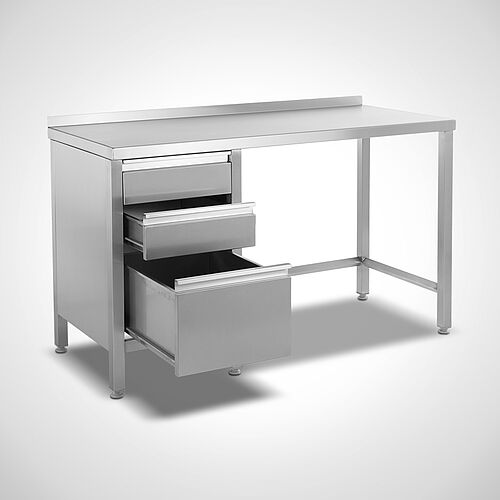

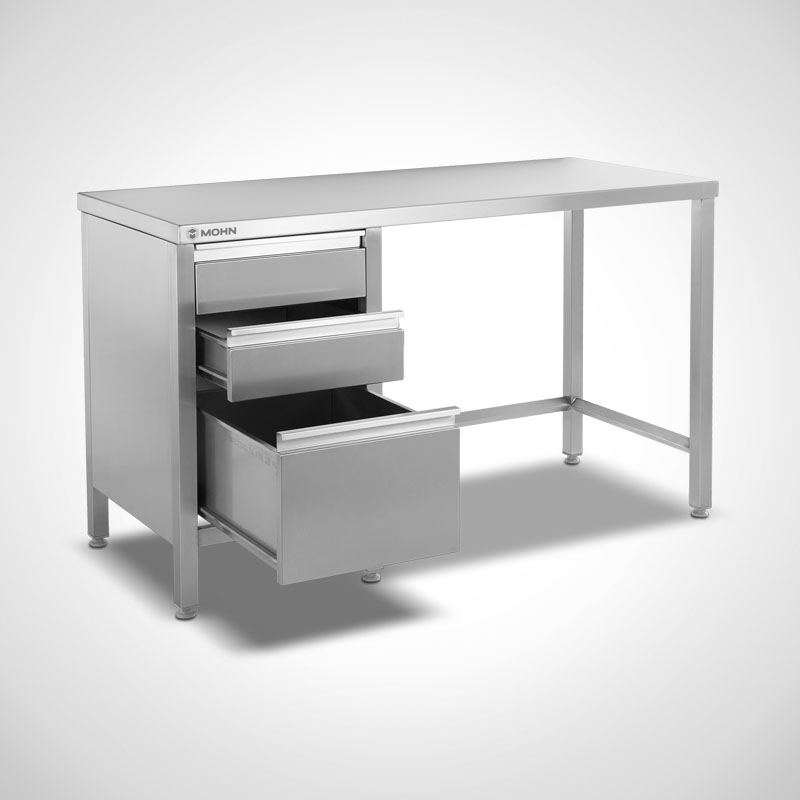

Work tables Type AT-U-SL 140/60, art. no. 20.00.07.70 Work tables Type AT-U-SL 140/60, art. no. 20.00.07.70
Work tables Type AT-U-SL 140/60, art. no. 20.00.07.70 Work tables Type AT-U-SL 140/60, art. no. 20.00.07.70

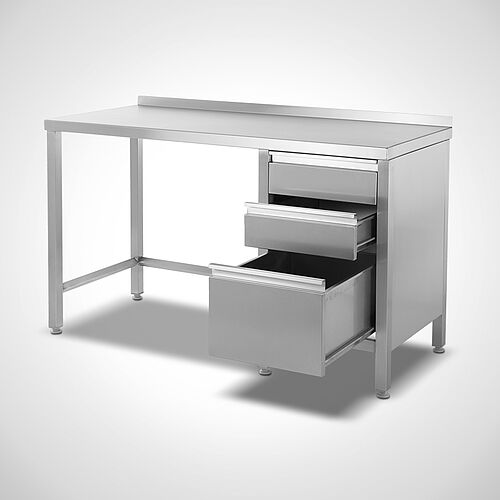

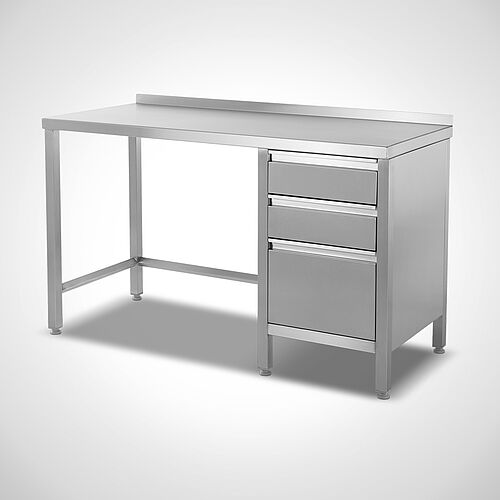

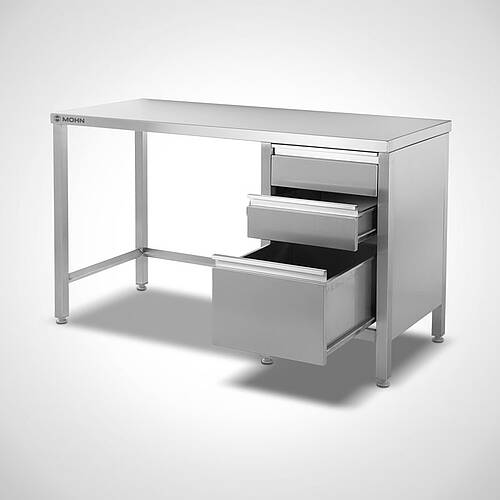

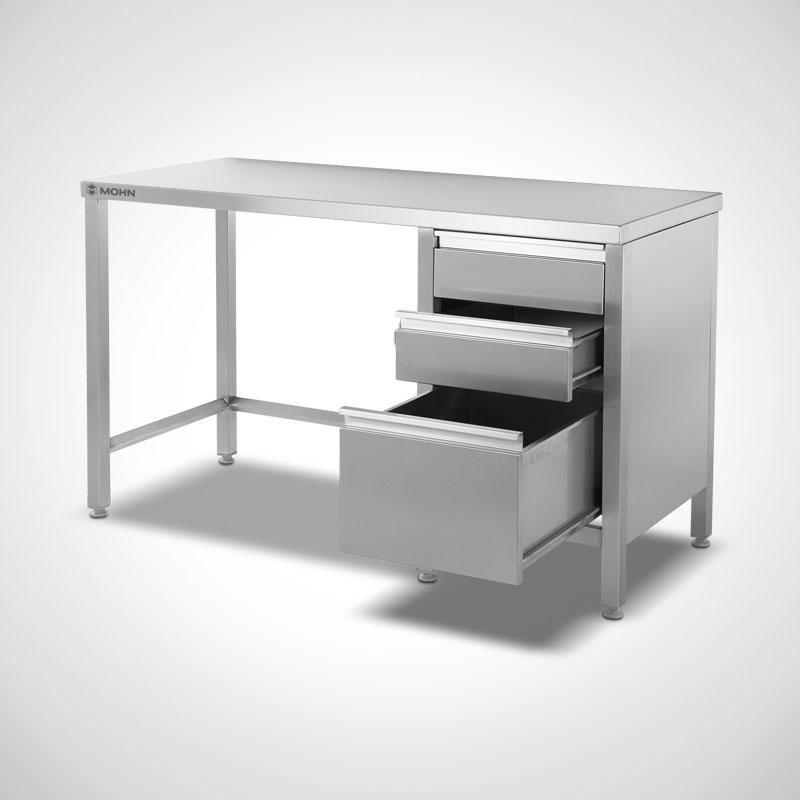

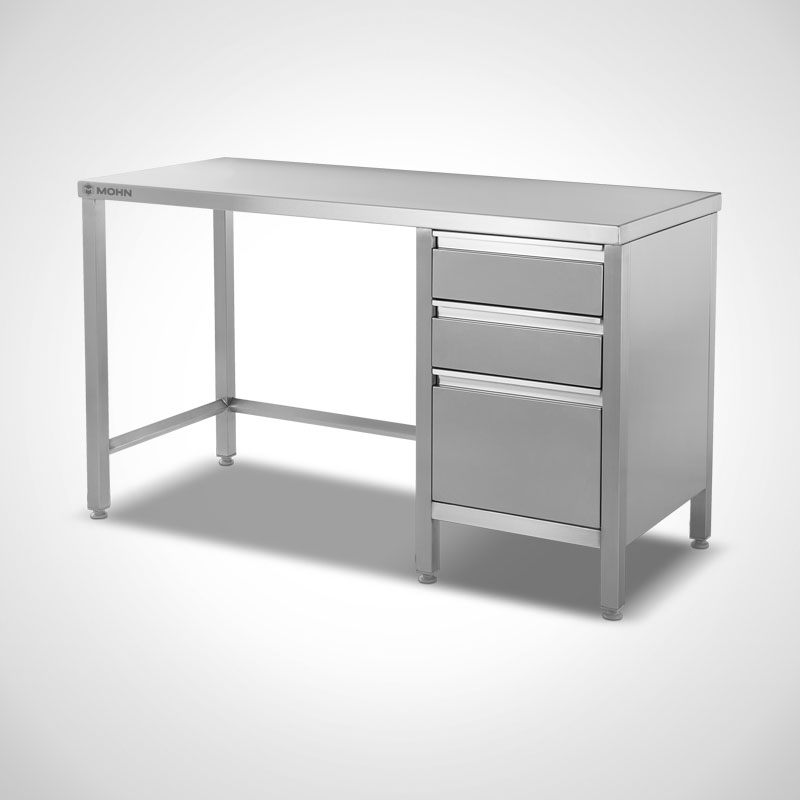

Work tables Type AT-U-SR 140/60, art. no. 20.00.08.20 Work tables Type AT-U-SR 140/60, art. no. 20.00.08.20
Work tables Type AT-U-SR 140/60, art. no. 20.00.08.20Work tables Type AT-U-SR 140/60, art. no. 20.00.08.20

Work tables
Type AT-U/-SL/-SR

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel 1.4301
  • Table top with 1.5 mm material thickness
  • Table top chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile,
    Load up to max. 200 kg (equally distributed load)
  • Lower structure with stable square pipe frame construction (40 x 40 x 1.5 mm)
  • 6x height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm
  • Lower structure strutted on 2 sides in the “Hygienic-Design” (diamond profile)
  • Drawer unit, left (-SL) or right (-SR), consisting of
    • 2 box drawers, W 300 x D 500 x H 150 mm, with partial pull-out
    • 1 box drawer, W 300 x D 500 x H 300 mm, with partial pull-out

TypeVersionDepth
in mm		Dimensions
W x D x H in mm		PDF
Drawer unit left
AT-U/ SL 140-60Drawer unit left600 mm1400 x 600 x 85020.00.07.70
AT-U/ SL 150-60Drawer unit left600 mm1500 x 600 x 85020.00.07.71
AT-U/ SL 160-60Drawer unit left600 mm1600 x 600 x 85020.00.07.72
AT-U/ SL 170-60Drawer unit left600 mm1700 x 600 x 85020.00.07.73
AT-U/ SL 180-60Drawer unit left600 mm1800 x 600 x 85020.00.07.74
AT-U/ SL 190-60Drawer unit left600 mm1900 x 600 x 85020.00.07.75
AT-U/ SL 200-60Drawer unit left600 mm2000 x 600 x 85020.00.07.76
AT-U/ SL 140-70Drawer unit left700 mm1400 x 700 x 85020.00.07.77
AT-U/ SL 150-70Drawer unit left700 mm1500 x 700 x 85020.00.07.78
AT-U/ SL 160-70Drawer unit left700 mm1600 x 700 x 85020.00.07.79
AT-U/ SL 170-70Drawer unit left700 mm1700 x 700 x 85020.00.07.80
AT-U/ SL 180-70Drawer unit left700 mm1800 x 700 x 85020.00.07.81
AT-U/ SL 190-70Drawer unit left700 mm1900 x 700 x 85020.00.07.82
AT-U/ SL 200-70Drawer unit left700 mm2000 x 700 x 85020.00.07.83
AT-U/ SL 140-80Drawer unit left800 mm1400 x 800 x 85020.00.07.84
AT-U/ SL 150-80Drawer unit left800 mm1500 x 800 x 85020.00.07.85
AT-U/ SL 160-80Drawer unit left800 mm1600 x 800 x 85020.00.07.86
AT-U/ SL 170-80Drawer unit left800 mm1700 x 800 x 85020.00.07.87
AT-U/ SL 180-80Drawer unit left800 mm1800 x 800 x 85020.00.07.88
AT-U/ SL 190-80Drawer unit left800 mm1900 x 800 x 85020.00.07.89
AT-U/ SL 200-80Drawer unit left800 mm2000 x 800 x 85020.00.07.90
Drawer unit right
AT-U/ SR 140-60Drawer unit right600 mm1400 x 600 x 85020.00.08.20
AT-U/ SR 150-60Drawer unit right600 mm1500 x 600 x 85020.00.08.21
AT-U/ SR 160-60Drawer unit right600 mm1600 x 600 x 85020.00.08.22
AT-U/ SR 170-60Drawer unit right600 mm1700 x 600 x 85020.00.08.23
AT-U/ SR 180-60Drawer unit right600 mm1800 x 600 x 85020.00.08.24
AT-U/ SR 190-60Drawer unit right600 mm1900 x 600 x 85020.00.08.25
AT-U/ SR 200-60Drawer unit right600 mm2000 x 600 x 85020.00.08.26
AT-U/ SR 140-70Drawer unit right700 mm1400 x 700 x 85020.00.08.27
AT-U/ SR 150-70Drawer unit right700 mm1500 x 700 x 85020.00.08.28
AT-U/ SR 160-70Drawer unit right700 mm1600 x 700 x 85020.00.08.29
AT-U/ SR 170-70Drawer unit right700 mm1700 x 700 x 85020.00.08.30
AT-U/ SR 180-70Drawer unit right700 mm1800 x 700 x 85020.00.08.31
AT-U/ SR 190-70Drawer unit right700 mm1900 x 700 x 85020.00.08.32
AT-U/ SR 200-70Drawer unit right700 mm2000 x 700 x 85020.00.08.33
AT-U/ SR 140-80Drawer unit right800 mm1400 x 800 x 85020.00.08.34
AT-U/ SR 150-80Drawer unit right800 mm1500 x 800 x 85020.00.08.35
AT-U/ SR 160-80Drawer unit right800 mm1600 x 800 x 85020.00.08.36
AT-U/ SR 170-80Drawer unit right800 mm1700 x 800 x 85020.00.08.37
AT-U/ SR 180-80Drawer unit right800 mm1800 x 800 x 85020.00.08.38
AT-U/ SR 190-80Drawer unit right800 mm1900 x 800 x 85020.00.08.39
AT-U/ SR 200-80Drawer unit right800 mm2000 x 800 x 85020.00.08.40
Special dimensions
Table leg height adjustment "Easy"  21000886
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All Dimension in mm. Other designs on request.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as feet have a uniform brushed finish.



Options

  • Drawers with full pull-out made of rust-free stainless steel on request
  • Drawers are lockable on request
  • Mobile version (2 trestle castors and 2 swivel castor), Ø125 mm, Art. no. 99.90.01.50
  • Manual resp. electrical height-adjustable on request
