Drawer unit left

Drawer unit left

Work table with drawer unit left and with PC fitting Work table with drawer unit left and with PC fitting

Writing desk AT-U/STL

high-quality industrial design completely made of stainless steel

  • Firmly welded execution
  • Table top with 1.5 mm material thickness
  • Table top chamfered on 3 sides, rear 40 mm backsplash
    (gallery), alternatively: smoothly chamfered on all sides
  • Table top with cable penetration opening (top right)
  • Work top underneath reinforced with hat profile, Load up to max. 200 kg (equally distributed load)
  • Drawer unit, left (-STL), consisting of:
    - 1 box drawer, W 400 x D 500 x H 100 mm, with partial pull-out (2/3)
    - 3 box drawers, W 400 x D 500 x H 135 mm, with partial pull-out (2/3)
  • Lower structure, cladded with perforated plate on 2 sides
  • Lower structure with PC fitting made of stainless steel
  • Lower structure with stable square pipe frame construction (40 x 40 x 1.5 mm)
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeVersionDepth
in mm		Dimensions
W x D x H in mm		PDF
Table depth: 600 mm
AT-U/STL 140-60Drawer unit, left600 mm1400 x 600 x 73021.00.01.70
AT-U/STL 150-60Drawer unit, left600 mm1500 x 600 x 73021.00.01.71
AT-U/STL 160-60Drawer unit, left600 mm1600 x 600 x 73021.00.01.72
AT-U/STL 170-60Drawer unit, left600 mm1700 x 600 x 73021.00.01.73
AT-U/STL 180-60Drawer unit, left600 mm1800 x 600 x 73021.00.01.74
AT-U/STL 190-60Drawer unit, left600 mm1900 x 600 x 73021.00.01.75
AT-U/STL 200-60Drawer unit, left600 mm2000 x 600 x 73021.00.01.76
Table depth: 700 mm
AT-U/STL 140-70Drawer unit, left700 mm1400 x 700 x 73021.00.01.77
AT-U/STL 150-70Drawer unit, left700 mm1500 x 700 x 73021.00.01.78
AT-U/STL 170-70Drawer unit, left700 mm1700 x 700 x 73021.00.01.80
AT-U/STL 180-70Drawer unit, left700 mm1800 x 700 x 73021.00.01.81
AT-U/STL 190-70Drawer unit, left700 mm1900 x 700 x 73021.00.01.82
AT-U/STL 200-70Drawer unit, left700 mm2000 x 700 x 73021.00.01.83
Table depth: 700 mmm
AT-U/STL 160-70Drawer unit, left700 mm1600 x 700 x 73021.00.01.79
Table depth: 800 mm
AT-U/STL 140-80Drawer unit, left800 mm1400 x 800 x 73021.00.12.00
AT-U/STL 150-80Drawer unit, left800 mm1500 x 800 x 73021.00.12.01
AT-U/STL 160-80Drawer unit, left800 mm1600 x 800 x 73021.00.12.02
AT-U/STL 170-80Drawer unit, left800 mm1700 x 800 x 73021.00.12.03
AT-U/STL 180-80Drawer unit, left800 mm1800 x 800 x 73021.00.12.04
AT-U/STL 190-80Drawer unit, left800 mm1900 x 800 x 73021.00.12.05
AT-U/STL 200-80Drawer unit, left800 mm2000 x 800 x 73021.00.12.06
Special dimensions
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Drawer with full extension 99800288
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Other dimensions or executions on request


Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Options

  • Table top made of HDPE-500, 30 mm thick (different colours) on request
  • Drawers with full pull-out made of rust-free stainless steel on request
  • Drawers are lockable on request

Reference Photos

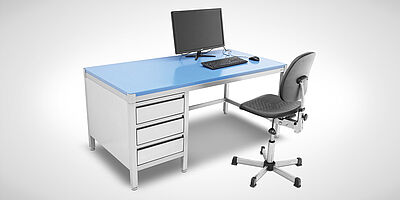

Writing desk with table top made of HDPE-500 and revolving chair
Writitng desk with work cupboard combination
Wall-mounted writing desk
