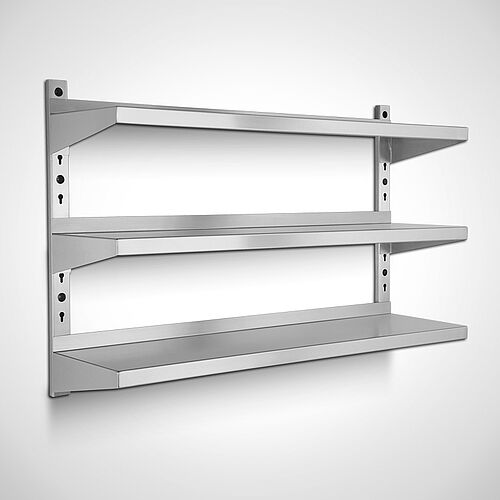

Stainless steel wall board Type WB-3-level/ height-adjustableStainless steel wall board Type WB-3-level/ height-adjustable

Wall board
Type WB-3

Functional and height-adjustable. Universally applicable.

  • Consists of 3 shelves with 2 mount panels each
  • Borders bevelled 30 mm on 3 sides and 15 mm edged inside
  • Board with a rear upstand of 40 mm
  • Underside of board with reinforcement profile, open underside
  • 2 wall rails (500 mm long) with keyhole drilling
  • Wall rails with height adjustment grid of 50 mm
  • Various standard depths of 200, 300 or 400 mm

TypeVersionDimensions
W x D x H in mm		PDF
Depth 200 mm
WB-3 50/20 3-level/ height-adjustable500 x 200 x 7020.00.62.35
WB-3 60/203-level/ height-adjustable600 x 200 x 7020.00.62.38
WB-3 70/20 3-level/ height-adjustable700 x 200 x 7020.00.62.41
WB-3 80/20 3-level/ height-adjustable800 x 200 x 7020.00.62.44
WB-3 90/20 3-level/ height-adjustable900 x 200 x 7020.00.62.47
WB-3 100/20 3-level/ height-adjustable1000 x 200 x 7020.00.62.50
WB-3 110/20 3-level/ height-adjustable1100 x 200 x 7020.00.62.53
WB-3 120/20 3-level/ height-adjustable1200 x 200 x 7020.00.62.56
WB-3 130/203-level/ height-adjustable1300 x 200 x 7020.00.62.59
WB-3 140/20 3-level/ height-adjustable1400 x 200 x 7020.00.62.62
WB-3 150/20 3-level/ height-adjustable1500 x 200 x 7020.00.62.65
WB-3 160/20 3-level/ height-adjustable1600 x 200 x 7020.00.62.68
WB-3 170/20 3-level/ height-adjustable1700 x 200 x 7020.00.62.71
WB-3 180/203-level/ height-adjustable1800 x 200 x 7020.00.62.74
WB-3 190/20 3-level/ height-adjustable1900 x 200 x 7020.00.62.77
WB-3 200/20 3-level/ height-adjustable2000 x 200 x 7020.00.62.80
WB-3 210/20 3-level/ height-adjustable2100 x 200 x 7020.00.62.83
WB-3 220/20 3-level/ height-adjustable2200 x 200 x 7020.00.62.86
WB-3 230/20 3-level/ height-adjustable2300 x 200 x 7020.00.62.89
WB-3 240/20 3-level/ height-adjustable2400 x 200 x 7020.00.62.92
WB-3 250/20 3-level/ height-adjustable2500 x 200 x 7020.00.62.95
WB-3 260/20 3-level/ height-adjustable2600 x 200 x 7020.00.62.98
WB-3 270/20 3-level/ height-adjustable2700 x 200 x 7020.00.63.01
WB-3 280/20 3-level/ height-adjustable2800 x 200 x 7020.00.63.04
WB-3 290/203-level/ height-adjustable2900 x 200 x 7020.00.63.07
WB-3 300/203-level/ height-adjustable3000 x 200 x 7020.00.63.10
Depth 300 mm
WB-3 50/30 3-level/ height-adjustable500 x 300 x 7020.00.62.36
WB-3 60/303-level/ height-adjustable600 x 300 x 7020.00.62.39
WB-3 70/30 3-level/ height-adjustable700 x 300 x 7020.00.62.42
WB-3 80/30 3-level/ height-adjustable800 x 300 x 7020.00.62.45
WB-3 90/30 3-level/ height-adjustable900 x 300 x 7020.00.62.48
WB-3 100/30 3-level/ height-adjustable1000 x 300 x 7020.00.62.51
WB-3 110/30 3-level/ height-adjustable1100 x 300 x 7020.00.62.54
WB-3 120/30 3-level/ height-adjustable1200 x 300 x 7020.00.62.57
WB-3 130/30 3-level/ height-adjustable1300 x 300 x 7020.00.62.60
WB-3 140/30 3-level/ height-adjustable1400 x 300 x 7020.00.62.63
WB-3 150/30 3-level/ height-adjustable1500 x 300 x 7020.00.62.66
WB-3 160/30 3-level/ height-adjustable1600 x 300 x 7020.00.62.69
WB-3 170/30 3-level/ height-adjustable1700 x 300 x 7020.00.62.72
WB-3 180/30 3-level/ height-adjustable1800 x 300 x 7020.00.62.75
WB-3 190/30 3-level/ height-adjustable1900 x 300 x 7020.00.62.78
WB-3 200/30 3-level/ height-adjustable2000 x 300 x 7020.00.62.81
WB-3 210/30 3-level/ height-adjustable2100 x 300 x 7020.00.62.84
WB-3 220/30 3-level/ height-adjustable2200 x 300 x 7020.00.62.87
WB-3 230/30 3-level/ height-adjustable2300 x 300 x 7020.00.62.90
WB-3 240/30 3-level/ height-adjustable2400 x 300 x 7020.00.62.93
WB-3 250/30 3-level/ height-adjustable2500 x 300 x 7020.00.62.96
WB-3 260/30 3-etagig/ höhenverstellbar2600 x 300 x 7020.00.62.99
WB-3 270/30 3-level/ height-adjustable2700 x 300 x 7020.00.63.02
WB-3 280/30 3-level/ height-adjustable2800 x 300 x 7020.00.63.05
WB-3 290/30 3-level/ height-adjustable2900 x 300 x 7020.00.63.08
WB-3 300/30 3-level/ height-adjustable3000 x 300 x 7020.00.63.11
Depth 400 mm
WB-3 50/40 3-level/ height-adjustable500 x 400 x 7020.00.62.37
WB-3 60/40 3-level/ height-adjustable600 x 400 x 7020.00.62.40
WB-3 70/40 3-level/ height-adjustable700 x 400 x 7020.00.62.43
WB-3 80/40 3-level/ height-adjustable800 x 400 x 7020.00.62.46
WB-3 90/40 3-level/ height-adjustable900 x 400 x 7020.00.62.49
WB-3 100/40 3-level/ height-adjustable1000 x 400 x 7020.00.62.52
WB-3 110/403-level/ height-adjustable1100 x 400 x 7020.00.62.55
WB-3 120/40 3-level/ height-adjustable1200 x 400 x 7020.00.62.58
WB-3 130/40 3-level/ height-adjustable1300 x 400 x 7020.00.62.61
WB-3 140/403-level/ height-adjustable1400 x 400 x 7020.00.62.64
WB-3 150/40 3-level/ height-adjustable1500 x 400 x 7020.00.62.67
WB-3 160/40 3-level/ height-adjustable1600 x 400 x 7020.00.62.70
WB-3 170/40 3-level/ height-adjustable1700 x 400 x 7020.00.62.73
WB-3 180/40 3-level/ height-adjustable1800 x 400 x 7020.00.62.76
WB-3 190/40 3-level/ height-adjustable1900 x 400 x 7020.00.62.79
WB-3 200/40 3-level/ height-adjustable2000 x 400 x 7020.00.62.82
WB-3 210/40 3-level/ height-adjustable2100 x 400 x 7020.00.62.85
WB-3 220/40 3-level/ height-adjustable2200 x 400 x 7020.00.62.88
WB-3 230/40 3-level/ height-adjustable2300 x 400 x 7020.00.62.91
WB-3 240/40 3-level/ height-adjustable2400 x 400 x 7020.00.62.94
WB-3 250/403-level/ height-adjustable2500 x 400 x 7020.00.62.97
WB-3 260/403-level/ height-adjustable2600 x 400 x 7020.00.63.00
WB-3 270/40 3-level/ height-adjustable2700 x 400 x 7020.00.63.03
WB-3 280/40 3-level/ height-adjustable2800 x 400 x 7020.00.63.06
WB-3 290/40 3-level/ height-adjustable2900 x 400 x 7020.00.63.09
WB-3 300/40 3-level/ height-adjustable3000 x 400 x 7020.00.63.12
Special dimensions
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as boards profiles have a uniform brushed finish

Material thickness # 1,0 mm



Option

  •  Board underside closed for more hygienic on request!
