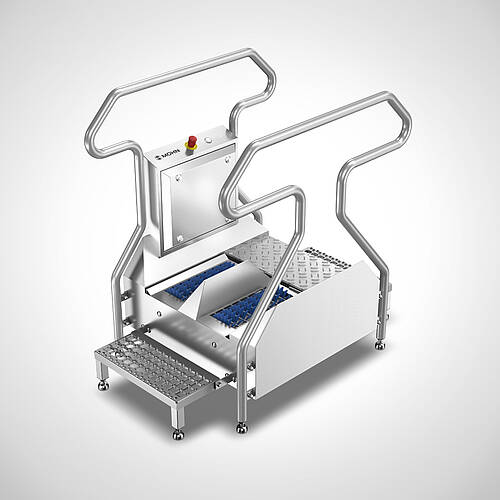

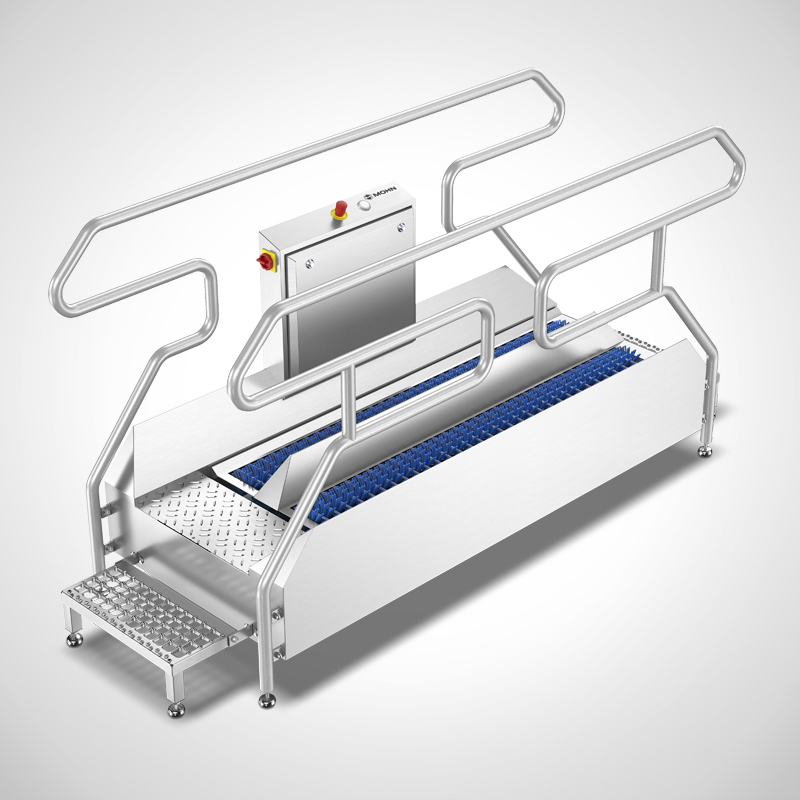

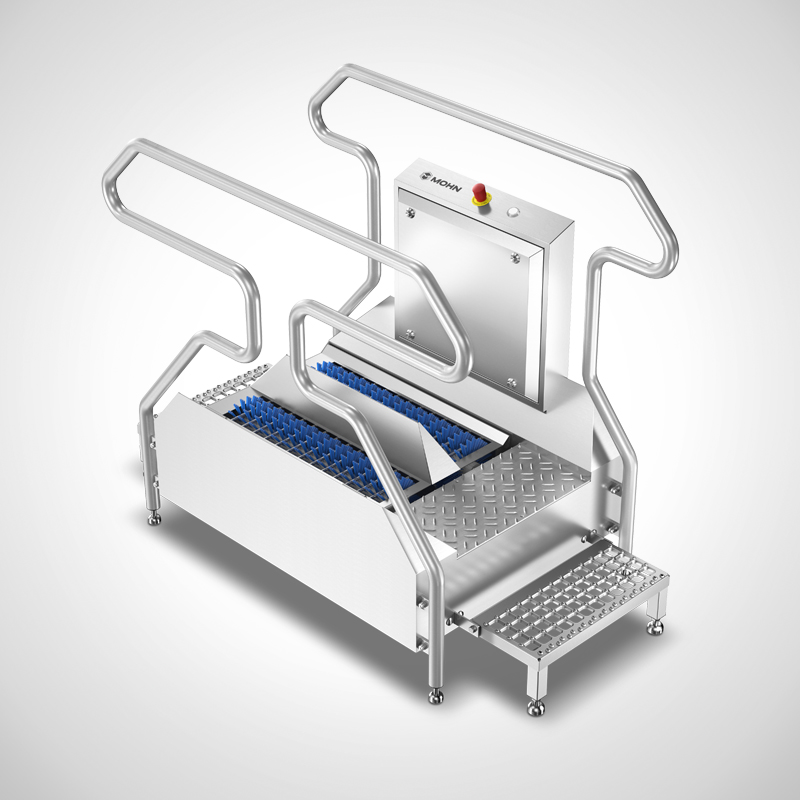

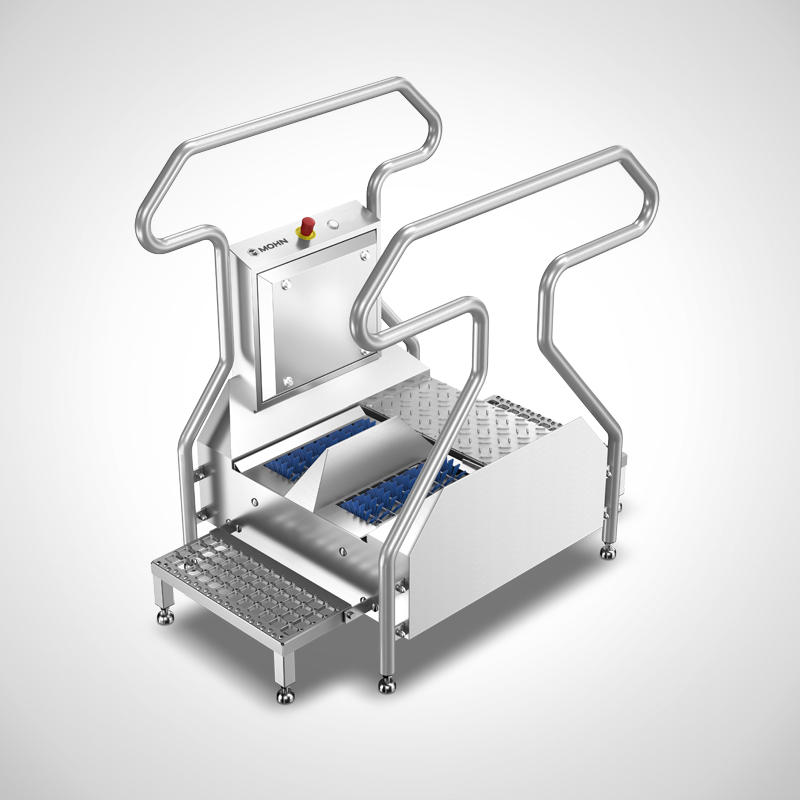

Pass-Through Sole Cleaning
Type Sole-Star Highline
For forcibly guided, pass-through cleaning and disinfection of the soles
- Robust and hygienic construction
- Hygienical design housing
- Double-sided hand rail for a secure stand
- SIEMENS LOGO! control unit, flexibly programmable
- Adjustable brush roller running time and dosing quantity
- Spring pot technology to save water, chemicals, and energy costs
- Sensor-controlled brush roller rotation for forward and reverse movement
- LED status display for operating status and disinfectant level
- With side step protection and splash guard
- Also available as a dry version (e.g., for the bakery industry)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Delivery does not include optional accessories.
Material
Rustproof stainless steel 1.4301
Description

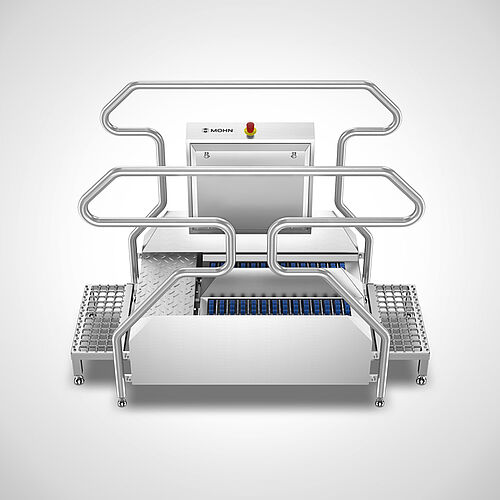

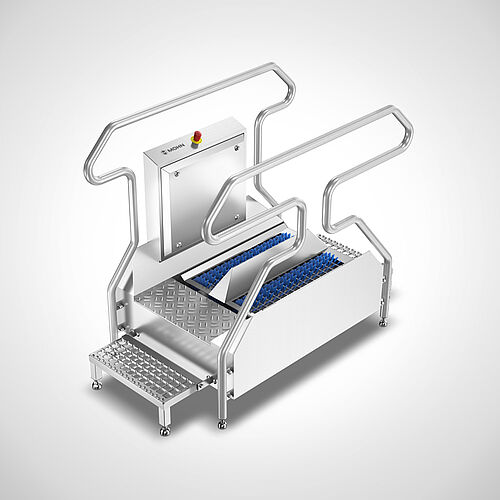

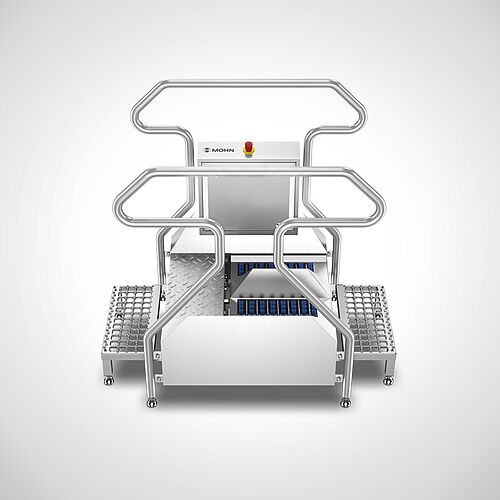

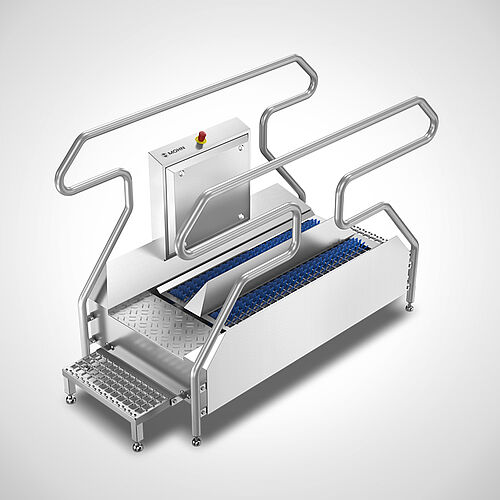

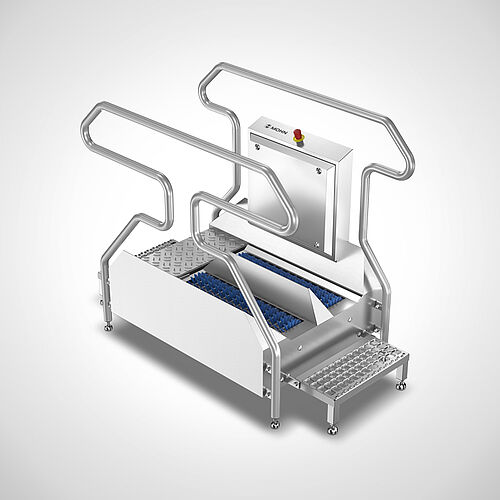

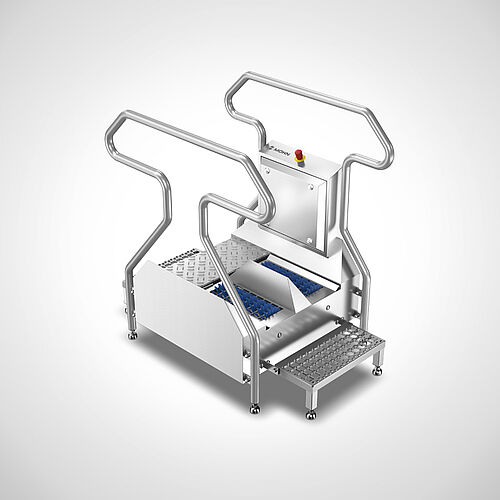

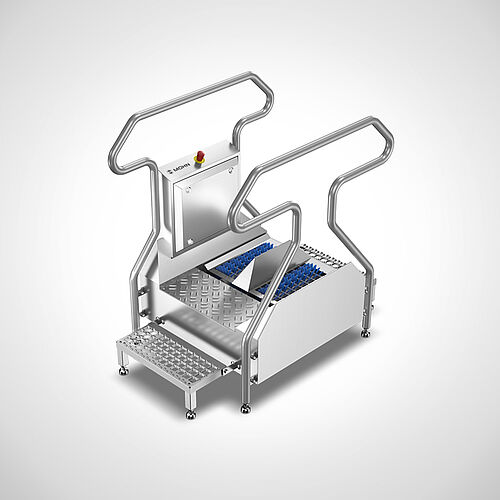

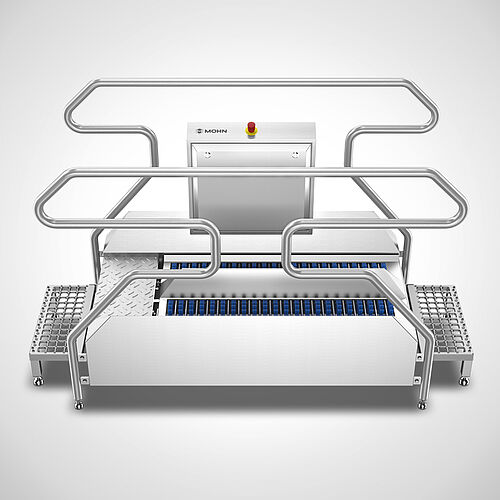

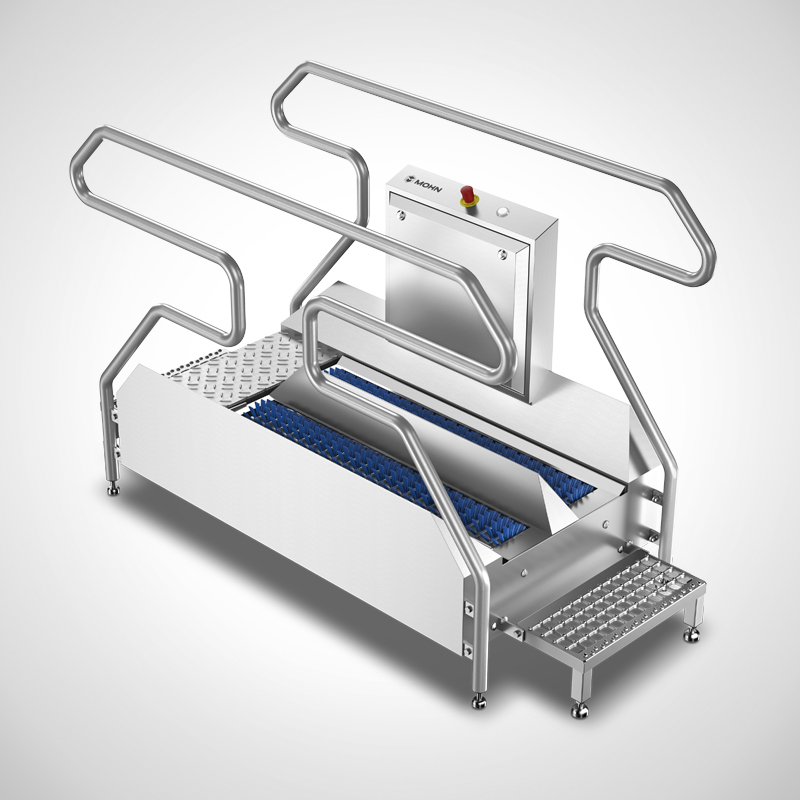

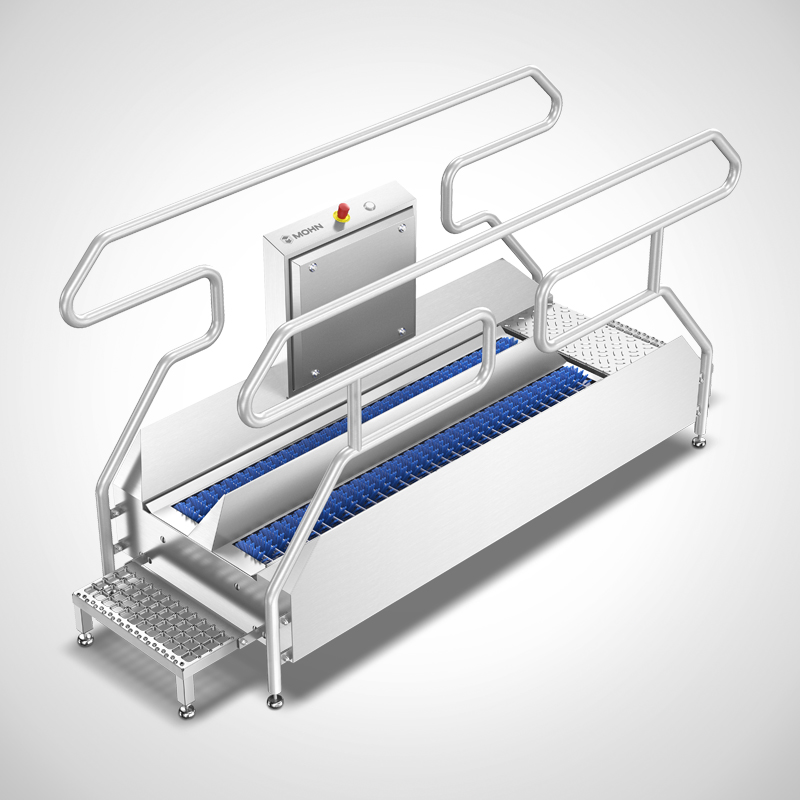

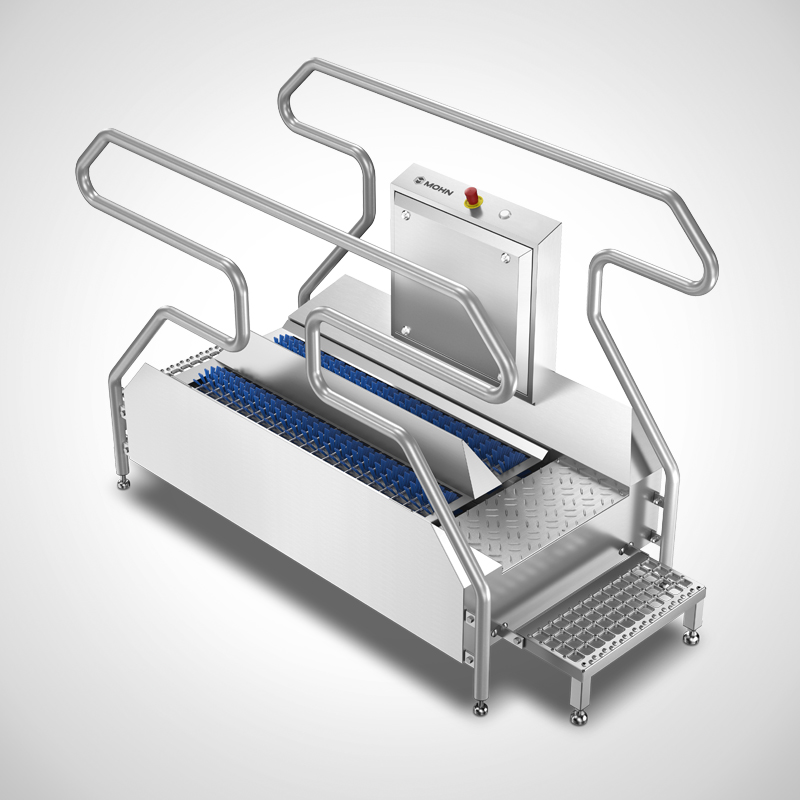

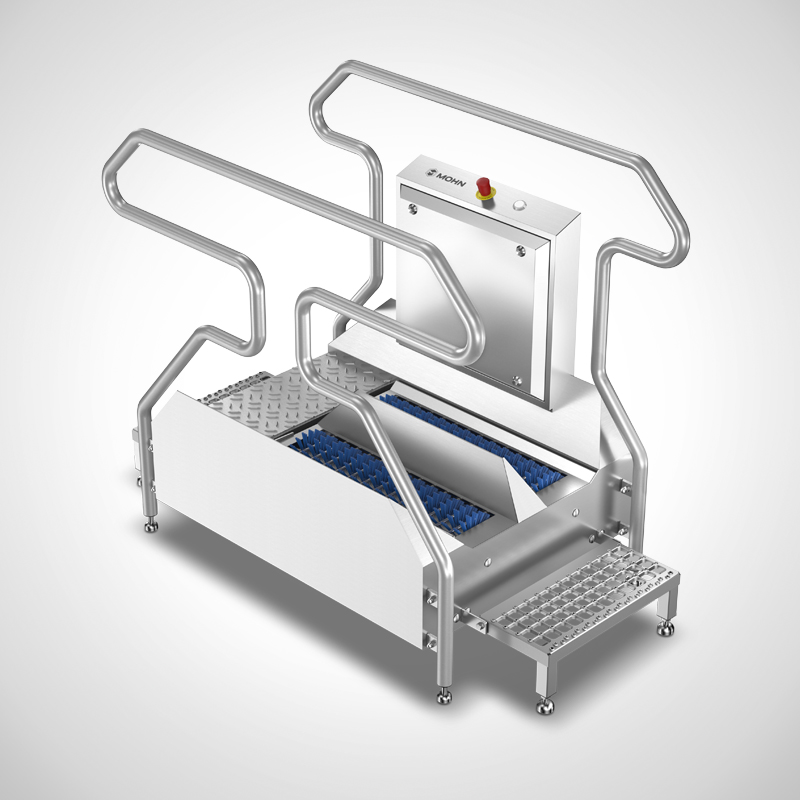

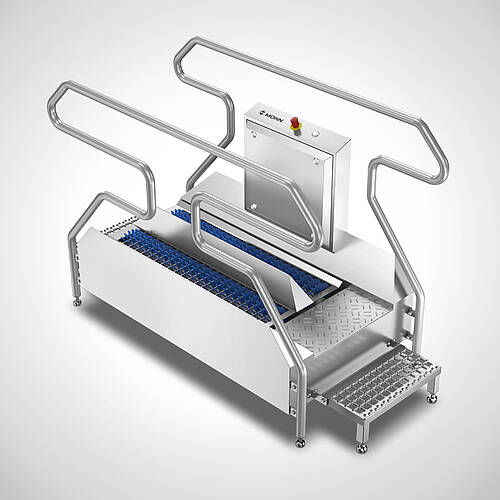

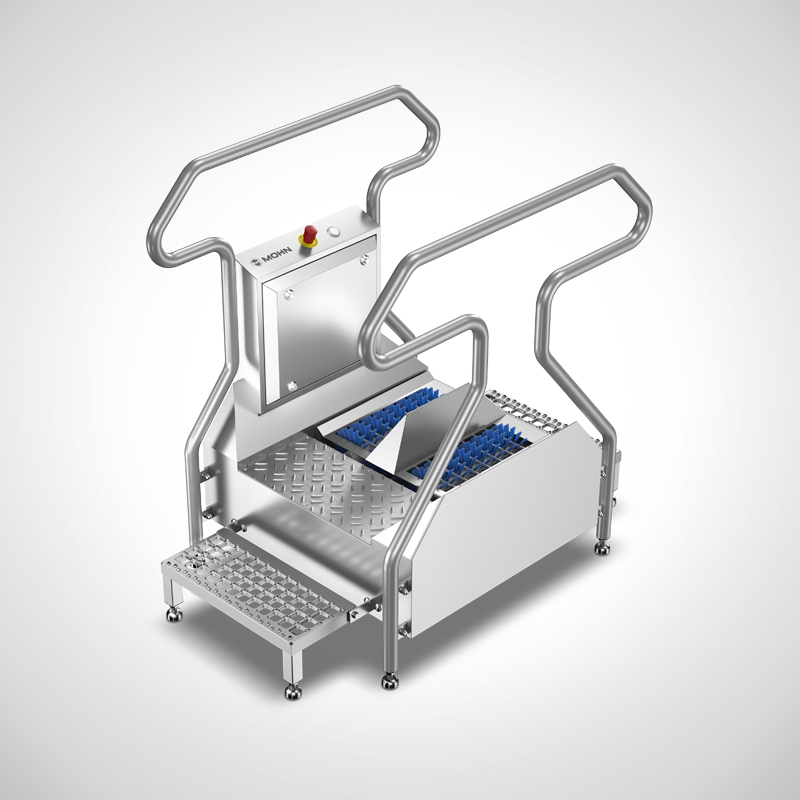

The “Sole-Star Highline” pass-through sole cleaning machine is used to clean and disinfect shoe and boot soles with a high degree of safety thanks to hygienic forced guidance of personnel. Two horizontally rotating brush rollers with large-area bristle coverage, located under a stainless steel walking grid, enable thorough cleaning and disinfection of the soles with minimal time and energy expenditure.
When crossing the walking grid, the shoe soles are cleaned and disinfected at the same time by the bristles protruding above the grid. The brush rotation is activated by a sensor-controlled spring pot technology as soon as the walking grid is stepped on for sole cleaning. The spring pot technology was developed to save water, chemicals, and energy costs and is patent pending.
The cleaning and disinfectant mixture is added automatically via an adjustable dosing system. The two brush rollers can be easily removed without tools to clean the brush shafts. An integrated LED status display shows the operating status of the brushes and the disinfectant level: Red = brushes not active, green = brushes active, flashing = disinfectant level low or empty.
Advantages
- Safe hygiene cycle thanks to forced guidance: defined process for sole cleaning and disinfection – particularly suitable for hygiene-critical production areas.
- Thorough cleaning with minimal effort: two rotating brush rollers with large-area bristle coverage ensure reliable sole cleaning in a single pass.
- Resource-saving operation: sensor-controlled activation via spring pot technology – reduces water, chemical, and energy consumption.
- Constant dosing: cleaning agent and disinfectant mixture is automatically fed via an adjustable dosing system.
- Quick cleaning and maintenance: brush rollers can be removed without tools for cleaning the brush shafts.
- Greater transparency during operation (LED status display): The operating status of the brushes and the disinfectant level can be seen at a glance (red/green/flashing) – facilitating monitoring and refill management.
Dry execution - dirt drawer
Front-end extensible, art. no. 99.80.00.32

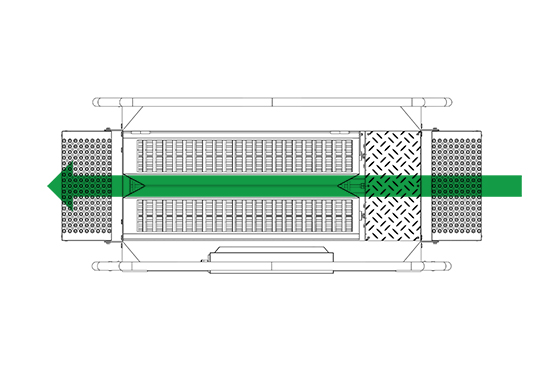

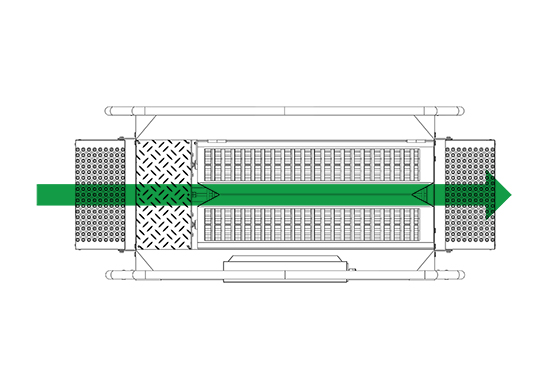

Passage direction
Left to right
Right to left
Technical Data
| Power supply | 3 x 400 V/N/PE; 50/ 60 Hz |
|---|---|
| Performance | 0,5 kW |
| Drain | 2" (DN 50) |
| Water connection | 3/4" AG, mix water max. 43° C |
| Fusing | 16 A |

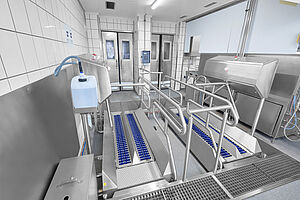

Reference Photos
Spring cap
Spring cap technology for saving water, chemicals and energy costs
Hygienic-Design
Hygienic and easy-to-clean design to avoid contamination.
Splash-guard
Solid splash-guard and side-step protection in hygienic-design
Control-cabinet
Control-cabinet with locking-lever in hygienic-design
Control
High-quality and user-friendly SIEMENS-LOGO control components.
Handrail
Ergonomic handrail in hygienic-design
Footstep
Safety hygiene footstep with anti-slip rust.
Engine-compartment
High-quality components from well-known manufacturers.
