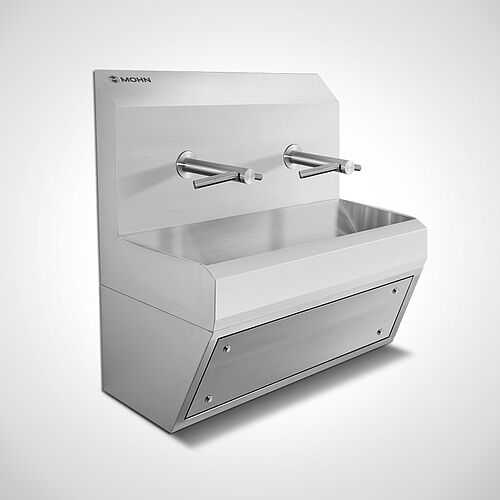

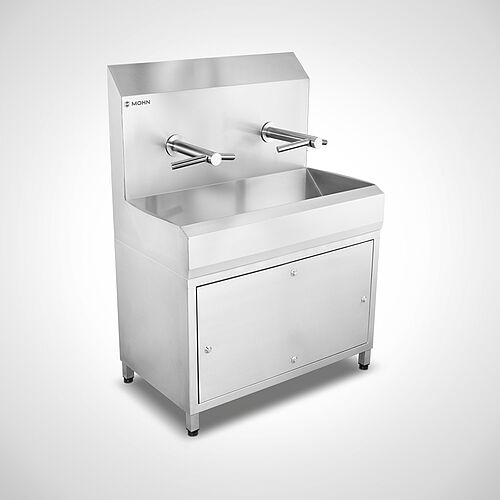

Multiple hand wash basin with Dyson Airblade Tap
Multiple hand wash basin with Dyson Airblade Tap
Wash basin
Type WR-SR-DT 24V Ecoline
WASHING AND DRYING YOUR HANDS WITH DYSON-TAP FAUCET
- "Hygienic design" version

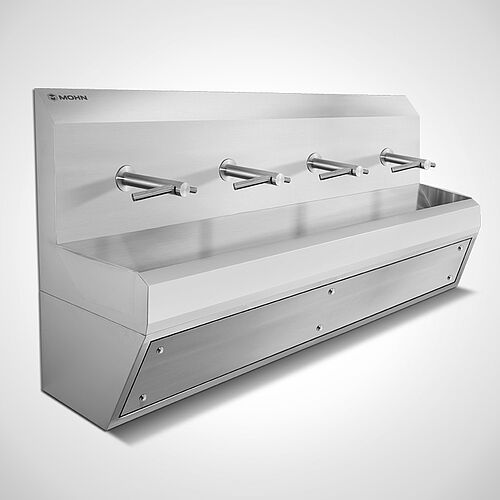

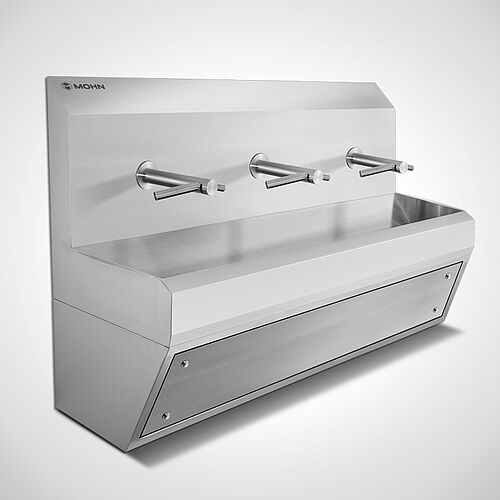

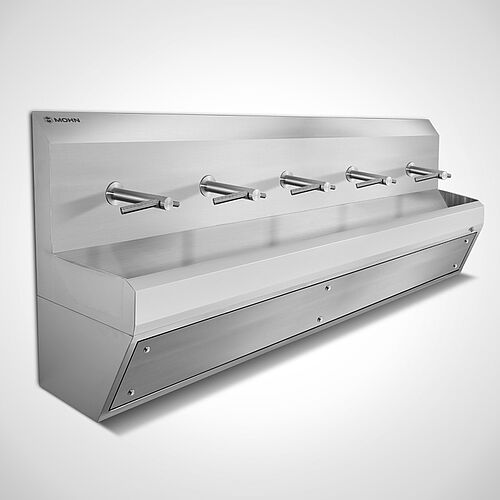

- Wall mounting using a mounting rail or with feet (base cabinet)
- Depending on the version with 2-5 washing places
- Wash place width: 500 mm
- 24 V DC technology

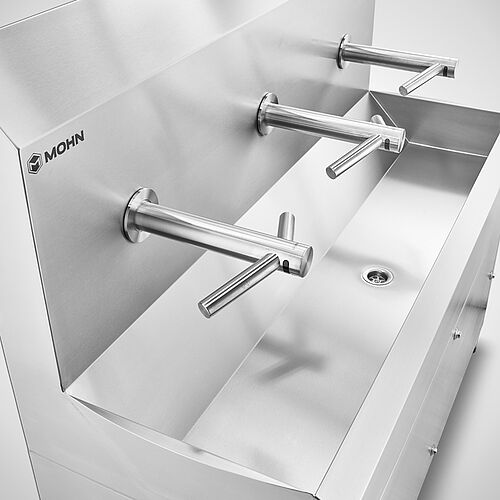

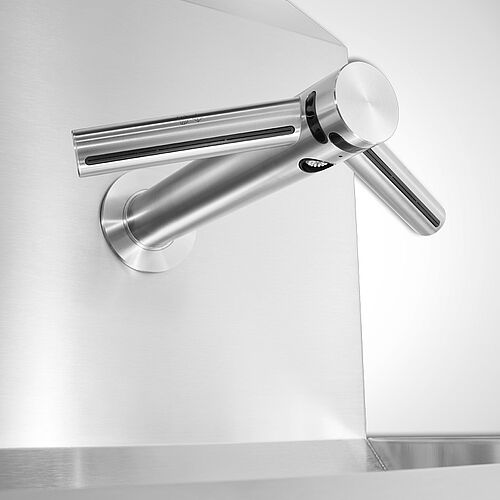

- Dyson-Tap (WD06) sensor faucet made of stainless steel including
- Non-contact infrared activation
- Drying time: 14 seconds
- Proportional mixing valve

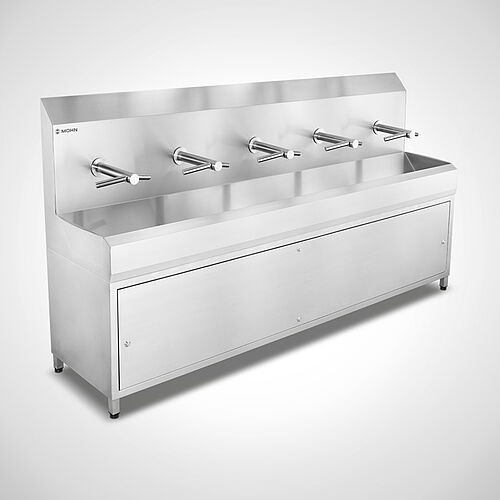

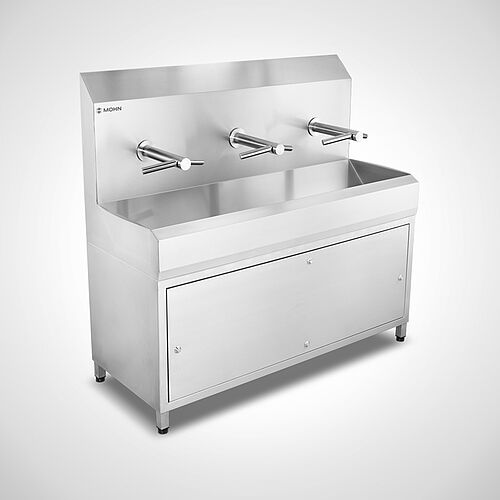

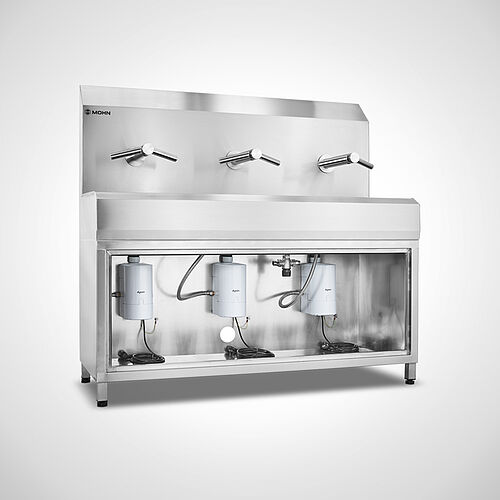

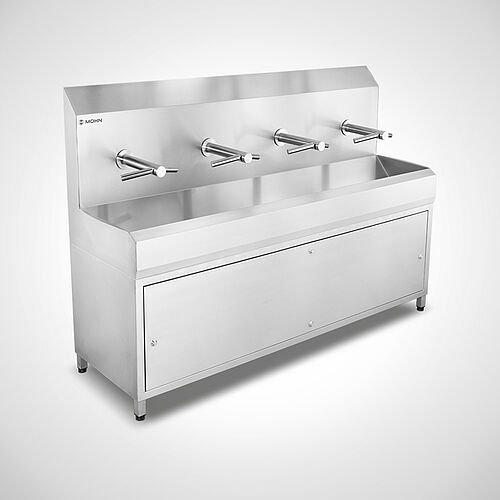

- Base cabinet for Dyson-Tap (AB11) technology
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
2065
1656
8
Show Lightbox Compare Comparedata

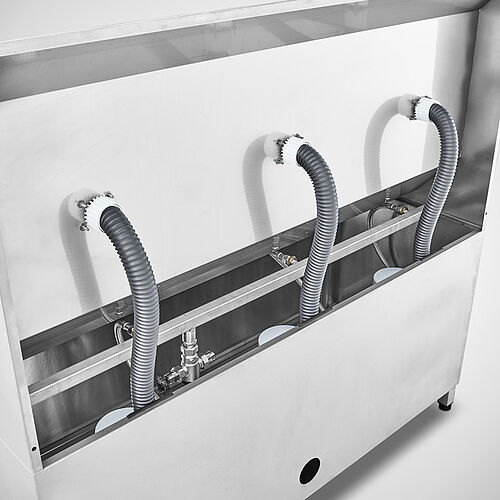

(Pressure relief valves, siphon, sealing and small parts are not included)
Material
Made of stainless steel 1.4301/ surface brushed
Advantages
- Non-contact infrared activation
- Automatic shutdown after 30 seconds
- Automatic rinse function 24 hours after last use for 60 seconds
- HEPA filter, removes 99.9% of the bacteria from the air
- Lower operating costs
- Lower environmental impact
Technical Data
| Power supply | 230 V - 3x 400 V N/PE 50/60 Hz |
|---|---|
| Operating voltage | 24 V DC |
| Performance | 2000 - 5000 Watt (Dyson Tap WD06) - depending on wash place |
| Drain | DN 50 -center |
| Water connection | 3/4" (cold- and warm water) |
| Line pressure | min 2,5 bar, max. 6 bar |
| Operating temperatur | 0°-40°C, 32°– 104°F |
| Air speed | 549 km/h (Dyson Tap WD06) |
Downloads
Video
Hand wash basin with Dyson-Tap faucet
Hand wash basin with Dyson-Tap faucet
