Multiple hand wash basin
Type WR-HL 2-5/L
Hygienic-Design- No straight surfaces - Deliverable up to 5 washing places
- 2 washbasin depths available
- Depending on the version with 2-5 washing places
- Wash place width: 500 mm
- Anti-legionella bacteria flushing by means of Siemens Logo control unit
- Inner basin complete with rounded corners (R20)
- Stainless steel outlet tap including water-saving tap aerator
- Sensor integrated in water outlet tap (range infinitely adjustable)
- Easy-adjustable sensor in outlet tap
- Thermostat mixing valve including non-return valve
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
(Pressure relief valves, siphon, sealing and small parts are not included)
Material
Made of stainless steel 1.4301/ surface brushed
Advantages
- Maximum hygiene execution
- All parts are interchangeable without dismounting the hand basin from the wall
- Indoor pool complete with rounded corners, radius R20
- Sensor infinitely adjustable
- SIEMENS logo control (simple programming of individual controls)
Options
- Medium supply „Power“ from top, Article no. 12.00.01.37
- Medium supply „Water“ from top, Article no. 12.00.01.39
- Flow water heater (11 -13.5 kW), Article no. 12.00.00.78
- Rear wall panelling (with stand-alone) on request
- Wall spacer (100 mm) on request
- Medium facing sheet on request
Foot frames/ substructures
- Foot frame type FG-I (square tube profile rack - 4 feet) on request
- Foot frame type FG-II (square tube profile rack for cove - 2 feet) on request
Technical Data
| Power supply | 230 V; 50/60 Hz, fuse 16 A |
|---|---|
| Operating voltage | 24 V DC |
| Drain | 1 1/2" - center |
| Water connection | 3/4" (Cold- + warmwater) |
| Line pressure | min 2,5 bar, max. 6 bar |

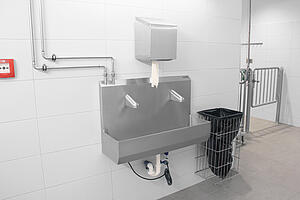

Reference Photos
Downloads
Video
Accessories
Protection archs
Type RSB
Dryrack
Type DR
Paper Towel Dispenser
Type HTSP
Universal Dispenser
Type USP
Paper baskets
Type PK-D
Waste Baskets
Type PK-E
Hand drier
Type Jet-2
Stainless steel mirror
Type ESP
Towel dispenser
Type HTSP-E-VA
Universal dispenser
Type USP-E-VA
Garbage bag holder
Type MSH / RH-SF
Utensil dispenser
Type US
Apron dispenser
Type ESS-1
Apron dispenser
Type ESS-2
Disposable glove dispenser
Type EHS
Disposable paper dispenser
Type EPA
Disposable protective goggle dispenser
Type EBS
Disposable workcoat / overall dispenser
Type EKS
Disposable Multi dispenser
Type EMS
Glove dispenser
Type HSD
Roll holder

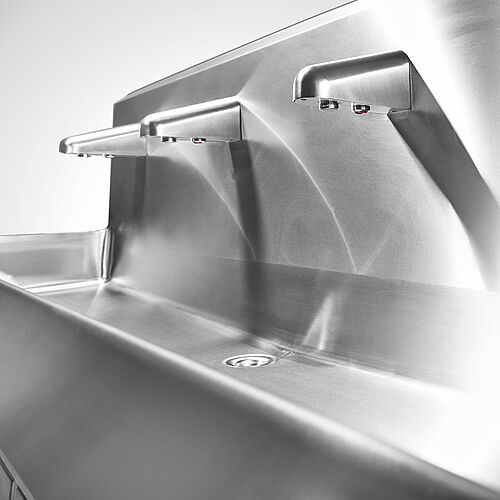

Type RH-W 1Inner basin
"Hygienic-Design" inner basin complete with rounded corners (radius R20) - without welds and joints.
Mixing valve
The automatic thermostatic mixing valve with non-return valve ensures a constant mixed water temperature.

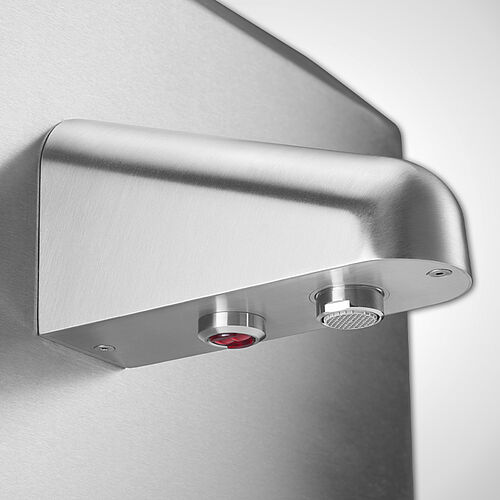

Outlet tap
Outlet tap manufactured in "hygienic design".
Sensor
Sensor with background suppression integrated in the tap. Easy and quick replacement of sensors for maintenance purposes.
Wall spacer
Optionally available wall spacers (100 mm) allow cleaning behind the basin. The area facing the wall is open and can be seen.
Siemens Control
User-friendly SIEMENS-LOGO control. Optionally available.
WLAN adapter
WLAN adapter for connection in conjunction with a SIEMENS LOGO control with Ethernet connection to a WLAN network.
Optionally available.
