Base cabinets for hand wash basins

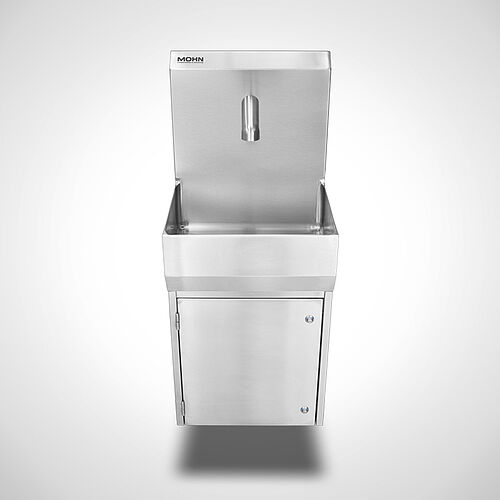

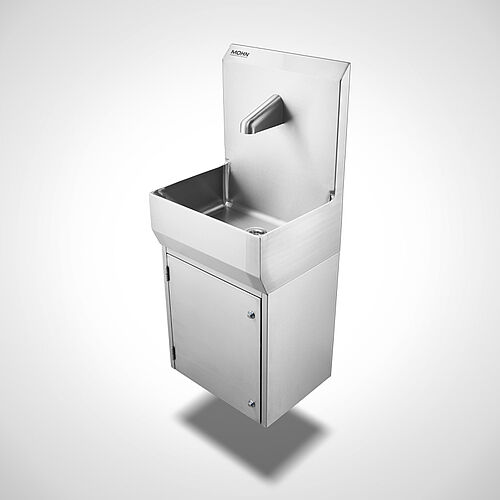

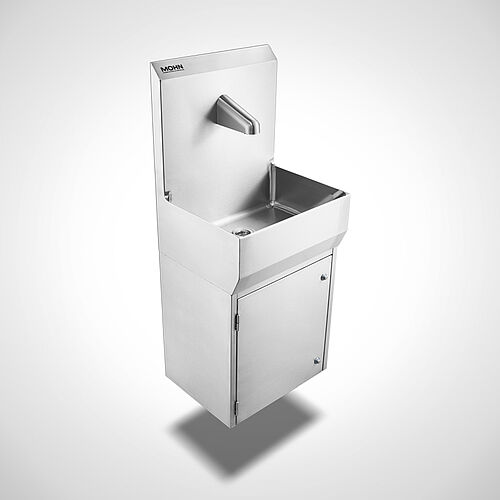

Wash basin cabinet for HWB-HL
Type US-HWB

Compatible for hand wash basin type HWB-HL 1 and HWB-HL 1/35

  • 2 different cabinet depths (375 mm or 315 mm)
  • Optionally with 4 feet or wall-mounted
  • On two sides blends made of stainless steel

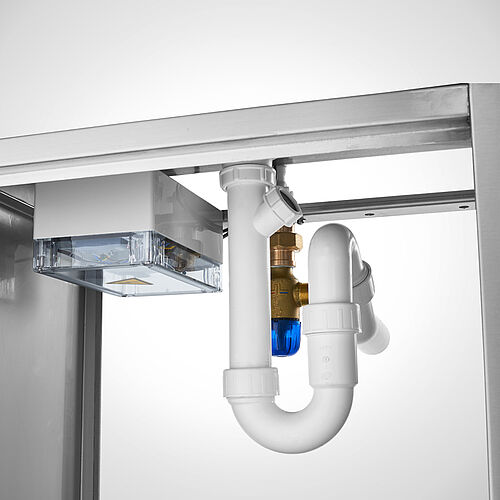

  • Open at the back for media connections
  • Front with 1 hinged door (DIN left or right)
  • Hinged door with 2 stainless steel locking lever in hygienic-design
  • Stand version with 4 plastic screw feet (+/- 30 mm)
  • Rear feet indented by 50 mm (chamfer)
  • Ground clearance: 150 mm

TypeVersionDepth
in mm
Dimensions
W x D x H in mm
PDF
US-HWB-S/R 41Feet - Door DIN rightwash basin depth: 410 mm500 x 375 x 69312.00.01.31
US-HWB-S/L 41Feet - Door DIN leftwash basin depth: 410 mm500 x 375 x 69312.00.01.82
US-HWB-S/R 35Feet - Door DIN rightwash basin depth: 350 mm500 x 315 x 69012.00.01.32
US-HWB-S/L 35Feet - Door DIN leftwash basin depth: 350 mm500 x 315 x 69012.00.01.83
US-HWB-W/L 41Wall-mounted - Door DIN leftwash basin depth: 410 mm500 x 375 x 54012.00.00.91
US-HWB-W/R 41Wall-mounted - Door DIN rightwash basin depth: 410 mm500 x 375 x 54012.00.00.92
US-HWB-W/L 35Wall-mounted - Door DIN leftwash basin depth: 350 mm500 x 315 x 54012.00.00.93
US-HWB-W/R 35Wall-mounted - Door DIN rightwash basin depth:350 mm500 x 315 x 54012.00.00.94
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery without hand wash basin Type HWB-HL 1 or HWB-HL 1/35.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish.
