Packaging table
Type VPT-H
We manufacture packing tables individually according to customer requirements
- Firmly welded execution
- Robust construction with high load capacity
- Stainless steel worktop chamfered allsides, below with tubular frame profile
- Roll holder axis made of solid material with cone centering mechanism
- Lower structure: Strutted in H-shape on 3 sides- longitudinal strut centred
- Each table with 4 height-adjustable machine screw feet
- Various extras (flip-up table top, limiting pins, etc.)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301
Description

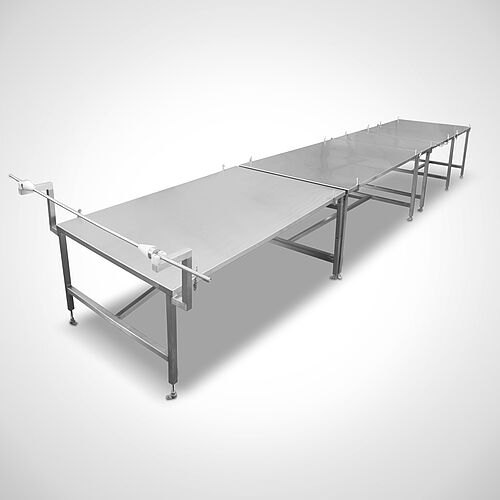

Above pictured packaging table consisting of:
- 3 working tables, L 2x 2000 resp. 1x 1000 x W 1250 x H 850 mm
- Table top with 1.5 mm material thickness, chamfered allsides 40mm
- Table tops longitudinally with 2 plug-in boundary pins each, pins stored in pods, secured with stainless steel chain
- Table tops below with stable tubular frame construction
- Each table with 4 height-adjustable machine screw feet and device for floor mounting
- Lower structure open design, with welded-in profile tube in H-shape design
- Table substructures connected in series by means of screw connections at a height of 400 mm
- Center part with 1 fold-up table top, 800 x 1250 mm, with stainless steel reel.
- Table top with 0.8 mm material thickness, below with tubular frame constructionl, besides 1 fold-up table top
- Table tops can be folded 180 ° on adjacent tables
- 1 table with roll holder, laterally above table top overhanging
- Roll holder axis made of solid material, t= 20 mm
- Axis outside in stainless steel half shells (total length of axis 2.000 mm)
- On the axis right and left each cone centerings for different roll core diameter.
Total dimensions of packaging table: L 6.600/ 7.000 x W 1.250 x H 850/ 1.200 mm
