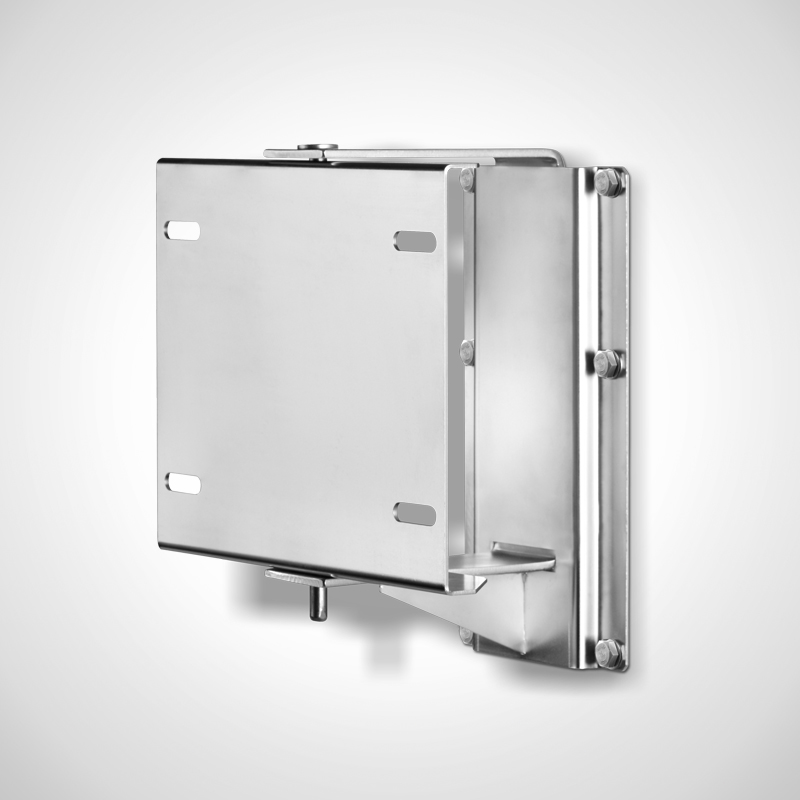

Stainless steel wall swivelling bracket type WSK-T 40/2e, Art. No. 10.70.00.59, suitable for automatic hose reel type ASA-HL 40/12/2e

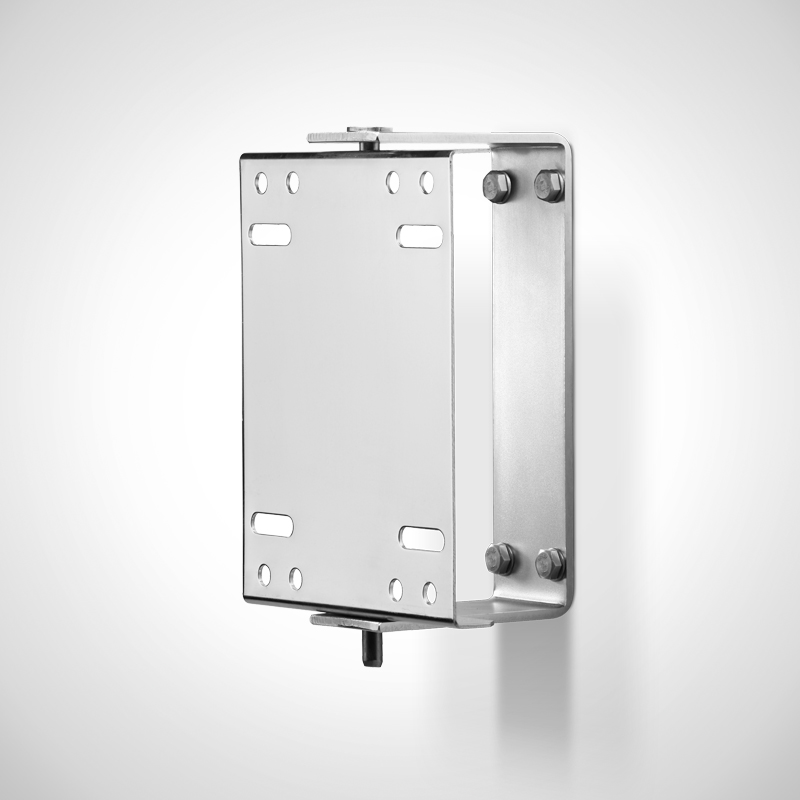

Stainless steel wall swivelling bracket type WSK-T 14/20e, Art. No. 10.71.03.01, suitable for automatic hose reel type ASA-HL 20/12/2e

Swivelling wall brackets
type WSK-T

Swivelling wall bracket for hose reels

Stainless steel swivelling wall bracket
Robust + sophisticated industrial design
Suitable for various hose reels up to 35m hose length
For swivelling wall mounting, swivel range 180°
Alternatively lockable in 7 angle positions (only from type WSK-T 40/1e)

Type	Version	Dimensions W x D x H in mm	Art.-No. Please mark	PDF
WSK-T 14/20e	Suitable for Type ASA-HL 20/12e + Type ASA-HL 20/12ep	210 x 120 x 267	10.71.03.0110710301	10.71.03.01
WSK-T 40/1e	Suitable for Type ASA-HL 30/12e + Type ASA-HL 30/12ep	316 x 188 x 267	10.71.00.2710710027	10.71.00.27
WSK-T 40/2e	Suitable for Type ASA-HL 40/12/2e + Type ASA-HL 40/12/2ep + Typ ASA-HL 40/12/2e-100 + Type ASA-HL 40/12/2ep-100	420 x 235 x 267	10.71.00.5910710059	10.71.00.59

Stainless steel backing plate for all swivel brackets for mounting on panel walls

10.70.02.71

show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Description

Supplied without hose reel and accessories. Subject to errors and technical changes.

material

Stainless steel 1.4301

Description The

The wall swivelling bracket type WSK-T allows the operator to move the hose reel within a swivelling range of 180°. This guarantees optimum cleaning of the rooms and protection of the hose. A counter plate (also available) enables installation on lightweight walls (panels).
