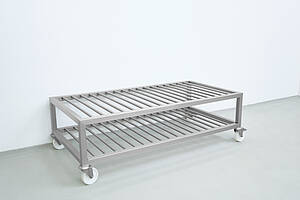

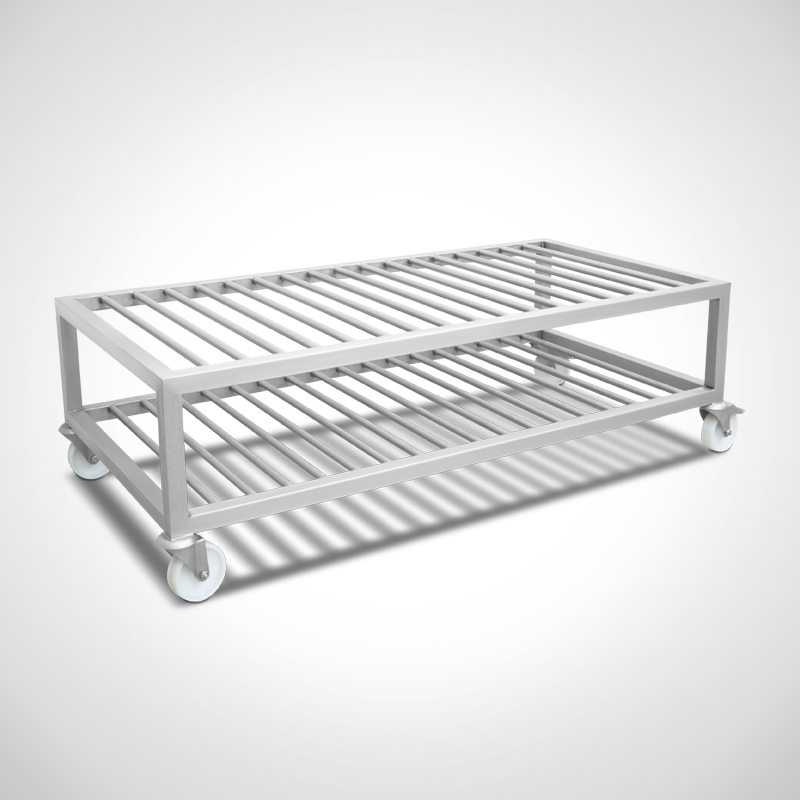

Draining trolley
type ATRW-RS 2E
For hygienic drying of ROLLIS or containers
- Base frame made of sturdy frame 40 x 40 x 1.5 mm
- Open design, each shelf freely accessible on all sides
- Version with 2 levels, 17 transversely welded round tube profiles per shelf
- Shelf design with hygienic round tube profiles Ø 20 mm
- Clear shelf spacing: 260 mm
- 4 swivel castors made of polyamide, Ø 125 mm, natural
- 2 swivel castors with brakes, stainless steel wheel brackets
- Ground clearance: approx. 155 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
We manufacture individually according to customer requirements and application purpose.
Material
Stainless steel trolley made of chrome nickel steel 18/10 material no. 1.4301.
The externally visible stainless steel sheet surfaces have a polished finish with 320 grit.
The externally visible stainless steel profile surfaces have a uniform brushed finish.
Description
The draining trolley with stainless steel round tube supports is designed for draining or drying containers or trolleys in industry, catering and medical areas. The hygienic round steel design as a rack makes it suitable for large, heavymachine parts after cleaning, for example: Liquids can run off, residues are not accumulated and drying is supported.
Made from 1.4301 stainless steel with a matt finish, the trolley impresses with its hygienic, robust workmanship. The open construction on all sides made of a sturdy square tubular profile frame ensures good air circulation. For ergonomic loading and unloading from all sides, both lengthways and at the front
The trolley can be moved on 4 natural polyamide swivel castors (Ø 125 mm), 2 of which are fitted with brakes to park the draining trolley safely at the place of use. The stable structure is based on a tubular frame profile 40 × 40 x 1.5 mm. The ground clearance of approx. 155 mm and the overall height of up to 500 mm make it easier to operate and handle large items to be washed.
Advantages
- Hygienic & well ventilated: round steel grates with a diameter of 20 mm ensure air circulation - no accumulation of water or dirt.
- Versatile use: Ideal for draining/drying machine parts after cleaning.
- Safe & mobile: 4 stable swivel castors (Ø 125 mm), 2 with brakes for easy movement of heavy loads and safe positioning.
Reference Photos
