Stainless steel profile rack (welded)

Stainless steel profile rack (welded)

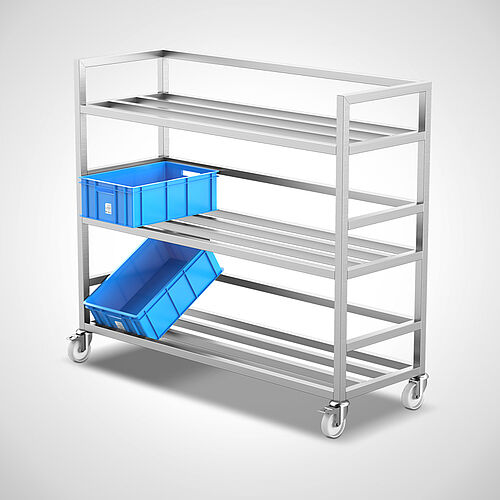

Mobile storage rack type LR-ED 3-4, with 4 swivel castors, 2 with brakes, art. no. 59.01.00.54 + 99.90.01.51 Mobile storage rack type LR-ED 3-4, with 4 swivel castors, 2 with brakes, art. no. 59.01.00.54 + 99.90.01.51

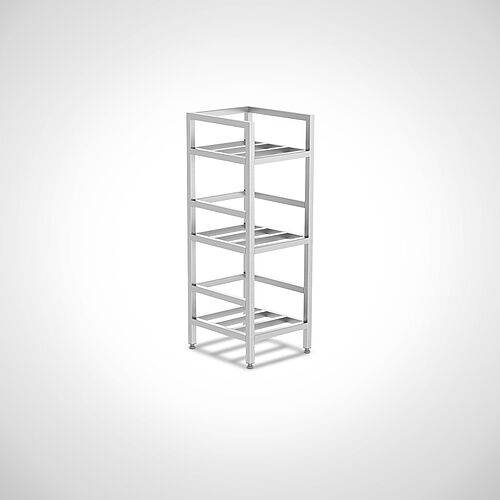

Stainless steel storage rack, Type LR-ED 3-1, 3-floors for 1 container each floor, art. no. 59.01.00.51 Stainless steel storage rack, Type LR-ED 3-1, 3-floors for 1 container each floor, art. no. 59.01.00.51

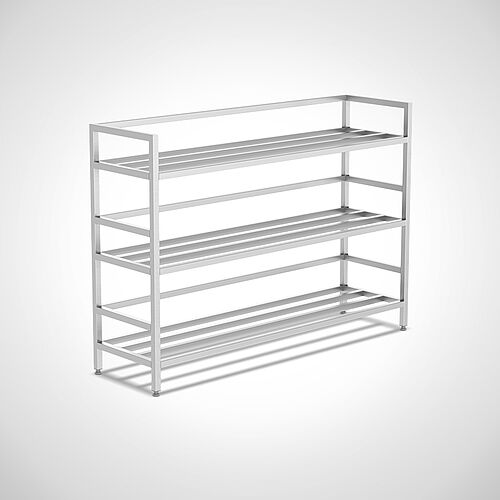

Stainless steel storage rack, Type LR-ED 3-5, 3-floors for 5 containers next to each other, art. no. 59.01.00.55 Stainless steel storage rack, Type LR-ED 3-5, 3-floors for 5 containers next to each other, art. no. 59.01.00.55

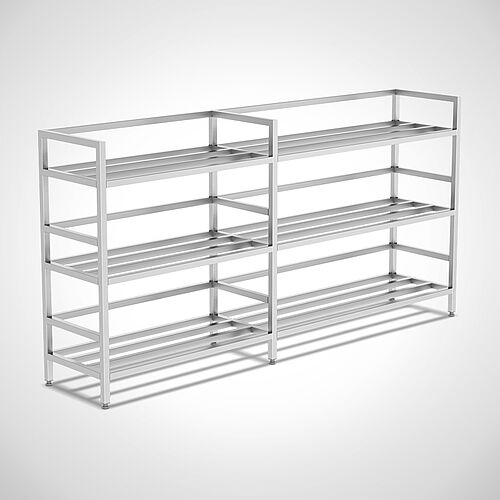

Stainless steel storage rack, Type LR-ED 3-7, 3-floors for 7 containers next to each other, art. no. 59.01.00.57 Stainless steel storage rack, Type LR-ED 3-7, 3-floors for 7 containers next to each other, art. no. 59.01.00.57

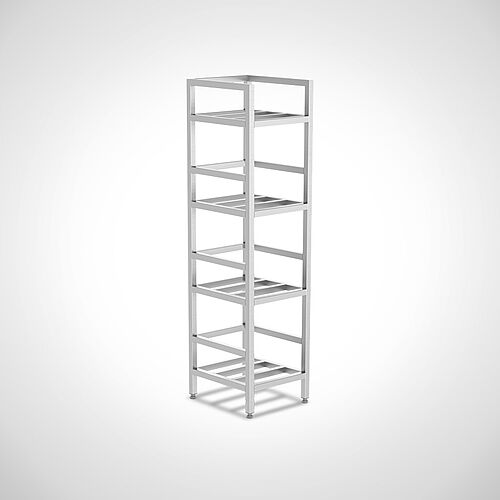

Stainless steel storage rack, Type LR-ED 4-1, 4-floors for 1 container each floor, art. no. 59.01.00.61 Stainless steel storage rack, Type LR-ED 4-1, 4-floors for 1 container each floor, art. no. 59.01.00.61

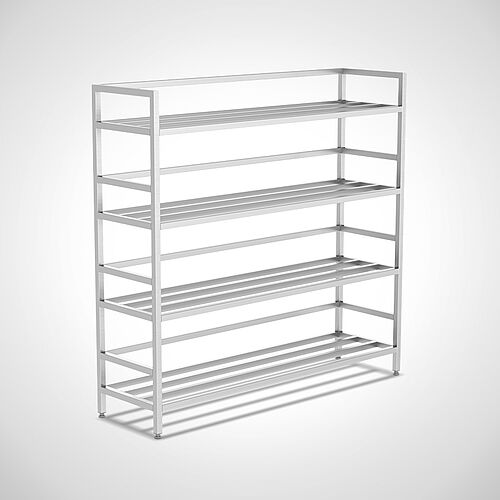

Stainless steel storage rack, Type LR-ED 4-4, 4-floors for 4 containers next to each other, art. no. 59.01.00.64 Stainless steel storage rack, Type LR-ED 4-4, 4-floors for 4 containers next to each other, art. no. 59.01.00.64

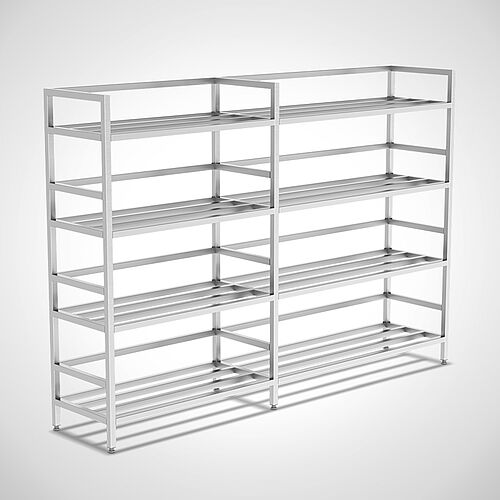

Stainless steel storage rack, Type LR-ED 4-7, 4-floors for 7 containers next to each other, art. no. 59.01.00.67Stainless steel storage rack, Type LR-ED 4-7, 4-floors for 7 containers next to each other, art. no. 59.01.00.67

Stainless steel storage rack
Type LR-ED

Optimal storage of Euro-containers according to DIN EN 55423

  • Optional with 3 or 4 floors
  • Position of containers slope or straight possible
  • Shelves made of rectangular profile tube frames (40 x 40 x 1.5 mm)
  • Floor clearance 500 mm
  • Storage rack depth 600 mm
  • Ground clearance 160 mm
  • 4 height-adjustable feet (+/- 30 mm)

TypeFloorsBoxes side by sideDimensions
W x D x H in mm		PDF
LR-ED 3-131500 x 600 x 152059.01.00.51
LR-ED 3-232910 x 600 x 152059.01.00.52
LR-ED 3-3331320 x 600 x 152059.01.00.53
LR-ED 3-4341730 x 600 x 152059.01.00.54
LR-ED 3-5352140 x 600 x 152059.01.00.55
LR-ED 3-6362550 x 600 x 152059.01.00.56
LR-ED 3-7372960 x 600 x 152059.01.00.57
LR-ED 4-141500 x 600 x 207059.01.00.61
LR-ED 4-242910 x 600 x 207059.01.00.62
LR-ED 4-3431320 x 600 x 207059.01.00.63
LR-ED 4-4441730 x 600 x 207059.01.00.64
LR-ED 4-5452140 x 600 x 207059.01.00.65
LR-ED 4-6462550 x 600 x 207059.01.00.66
LR-ED 4-7472960 x 600 x 207059.01.00.67
Special dimensions
Mobile by means of 6 steering rolls, 2 with stops (Ø 125 mm) 99900152
Mobile by means of 4 steering rolls, 2 with stops (Ø 125 mm) 99900151
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Made of rustproof stainless steel 1.4301



Options

  • Mobile by means of 4 steering rolls, 2 with stops (Ø 125 mm), art. no. 99.90.01.51
  • Mobile by means of 6 steering rolls, 2 with stops (Ø 125 mm), art. no. 99.90.01.52
