Aluminium rack (pluggable)
Aluminium rack (pluggable)

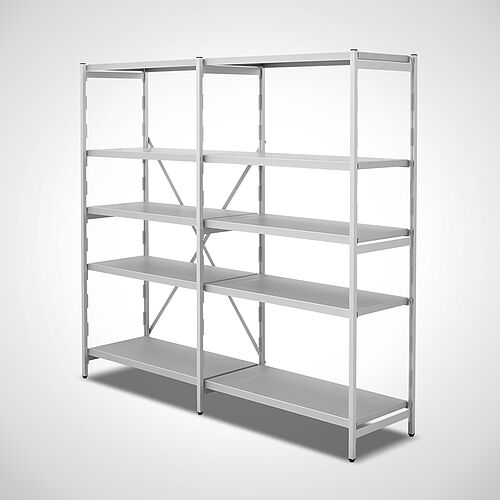

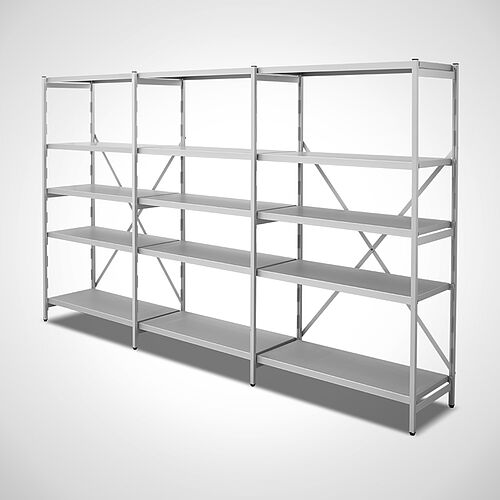

Modular aluminium shelf system
Type MRA
Combines high variant possibilities + high payload with safe stability
- GS-tested safety: TÜV-north Germany
- 2 different shelf versions and bay loads
- Optionally closed shelf or with elongated holes
- Shelf lengths: 600 mm up to 1,500 mm (in the 100 grid) *
- Standard shelf depths: 300 mm up to 600 mm (in the 100 grid)
- Height adjustment grid for shelves: 165 mm (attachment pins)
- Bay load optionally 600 kg or 1,200 kg **
- Shelf stand height: 1,800 mm (standard), 1,500 and 2,000 mm (optional)
- Feet for level adjustment, height adjustable 35 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
* Except shelf lengths of 700, 1100 and 1300 mm.
** The maximum field load is calculated as the sum of the individual loads per shelf.
Reserve technical changes.
Material
Anodized aluminum E6 / EV1
Informations
Standard basic shelf, consisting of
- 2 shelving frames (H: 1,800 mm)
- 4 closed or perforated compartment shelves
- 1 diagonal strut for stiffening
Standard attachable shelf, consisting of
- 1 shelving frame (H: 1,800 mm)
- 4 closed or perforated compartment shelves
Purpose of application
The shelving system offers a wide range of applications for hygienic food storage in refrigerated and non-refrigerated rooms as well as in laboratories. It is also suitable for storage of sterile goods in hospitals, old people's homes and nursing homes.
Description
The shelf system of the type MRA is designed according to the module principle and therefore offers a high variant possibility, combined with high load capacity and safe stability. It is only high-quality aluminium used. Depending on the design and choice of rack stands, the shelf can be delivered with the field load of 600 kg or 1200 kg. The maximum field load is calculated as the sum of the individual loads per shelf.
Shelf stands
The shelf stands are made of square tubes 25 x 25 mm and are equipped with height-adjustable feet and upper end caps made of plastic. To accommodate the unperforated shelves resp. perforated shelves are welded in a grid of 165 mm attachment pins. Depending on the rack height and field load, the rack stands are stiffened with 2 or 3 cross struts and completely electrolytically polished after production.
Shelves and perforated shelves
Shelves made of 1.5 mm thick high-alloy aluminum sheet, 40mm folded on all sides, the long sides have a complete folding inwards. Completely anodized shelves (E6 / EV1).
The 600 mm deep floors are reinforced from a length of 1200 mm with an additional beam. The shelf grates (perforated shelves) are made like the closed shelves and have slotted holes in the dimensions 45.5 x 10.5 mm. With corner mounting, the load of the load-bearing floors is reduced to 70% of the values given below.
Diagonal struts
The diagonal struts are bolted to the rack stands and thus ensure a high stability of the shelves. Every 3rd cultivation rack requires additional diagonal bracing. The dimension of the diagonal bracing is adapted to the respective floor or perforated floor length.

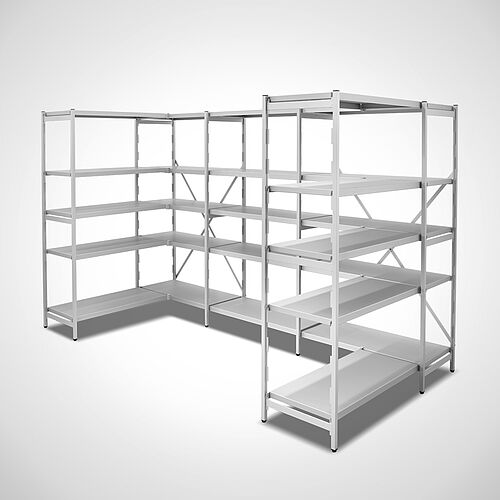

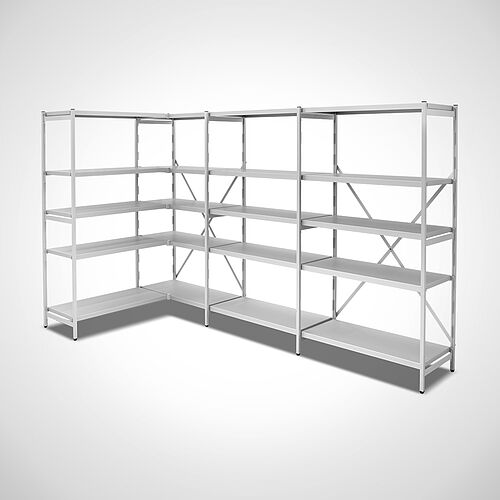

Corner mounting

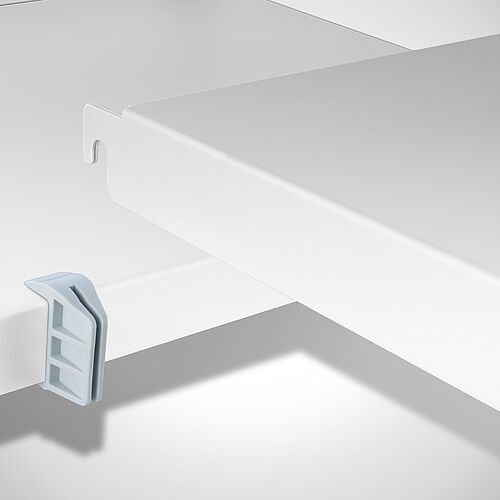

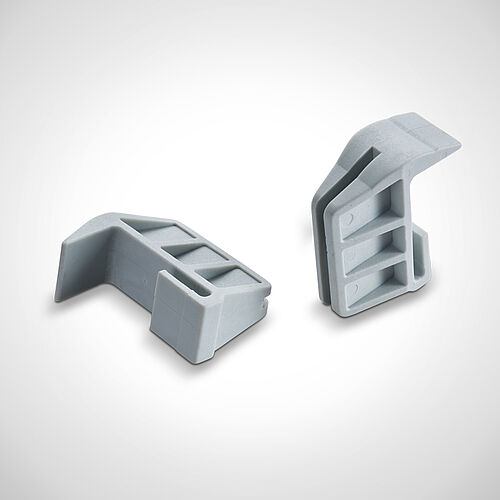

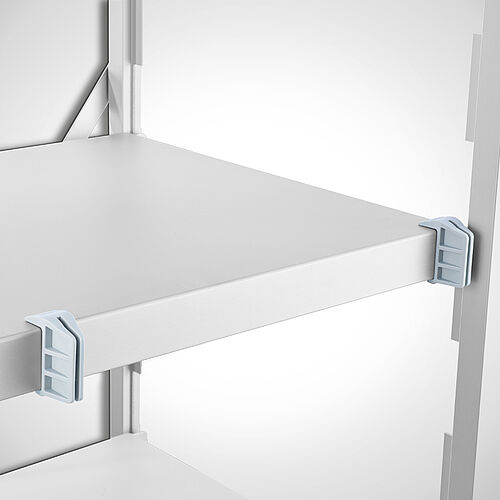

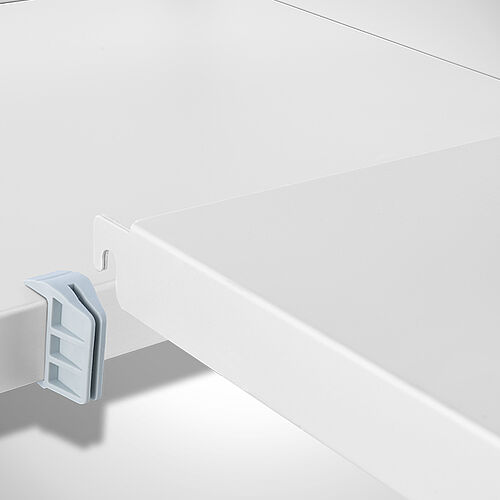

To connect two shelves at a 90 ° angle corner brackets made of sturdy plastic are available. With corner mounting, the load of the load-bearing floors is reduced to 70% of the values given below.
| Load chart with evenly distributed load | ||||||
|---|---|---|---|---|---|---|
| Length | closed shelf Depth 400 mm | closed shelf Depth 500 mm | closed shelf Depth 600 mm | perforated compartment shelf Depth 400 mm | perforated compartment shelf Depth 500 mm | perforated compartment shelf Depth 600 mm |
| 600 mm | 140 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| 800 mm | 140 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| 900 mm | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| 1000 mm | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| 1200 mm | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg |
| 1400 mm | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg |
| 1500 mm | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg |
