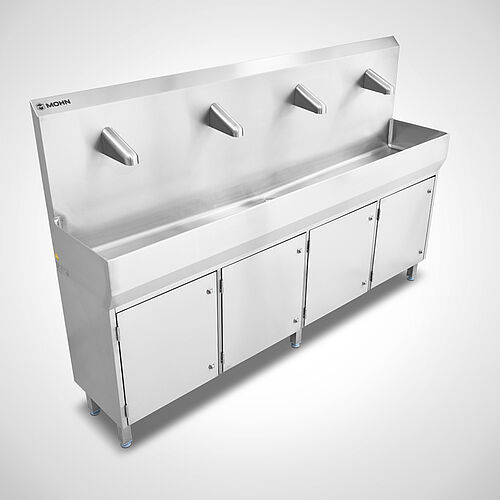

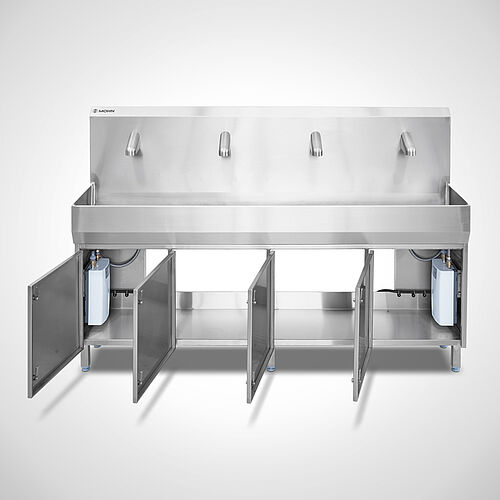

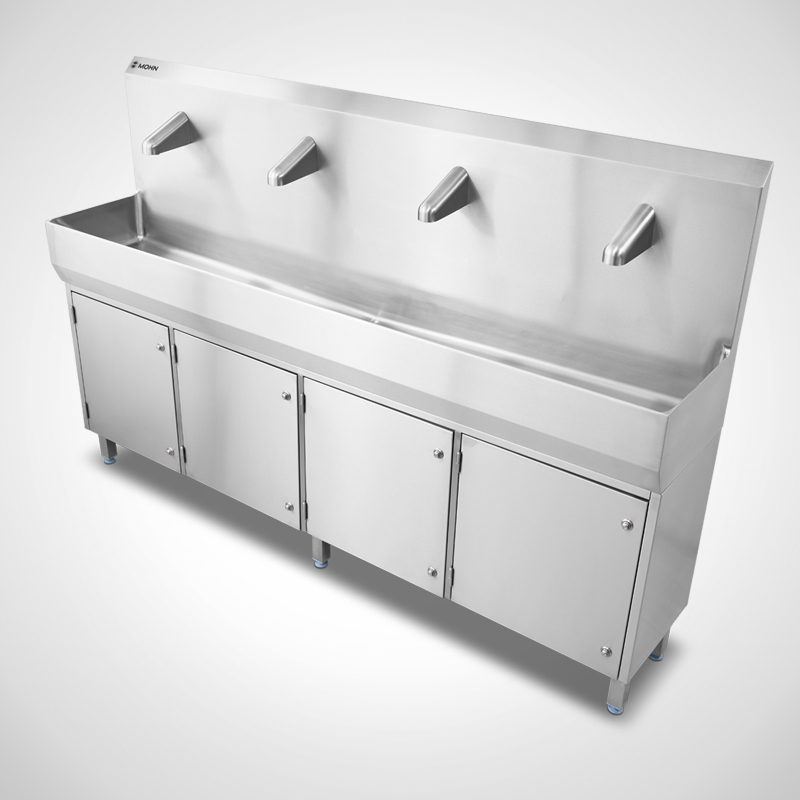

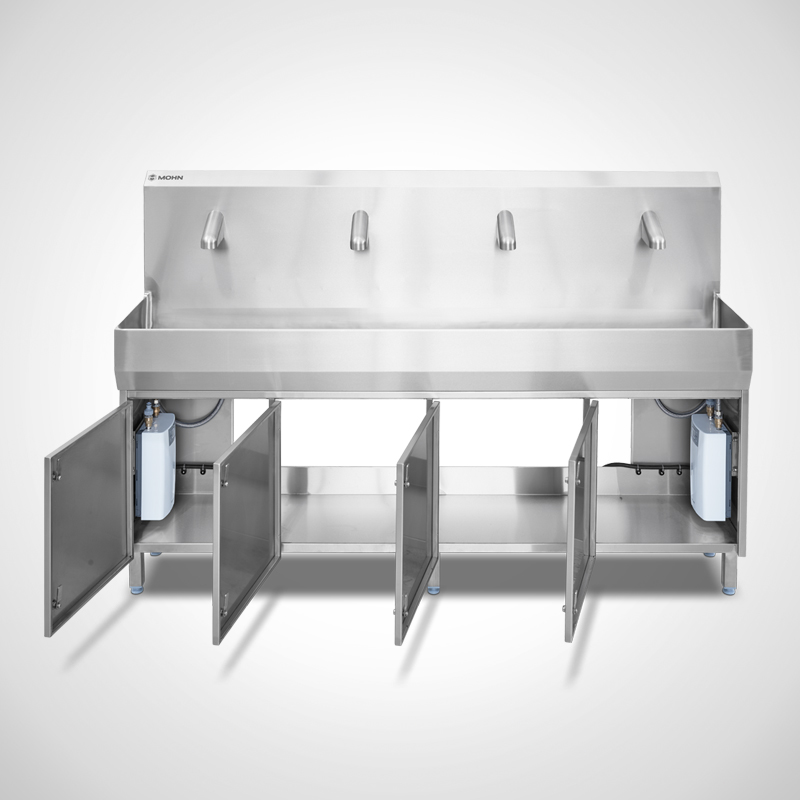

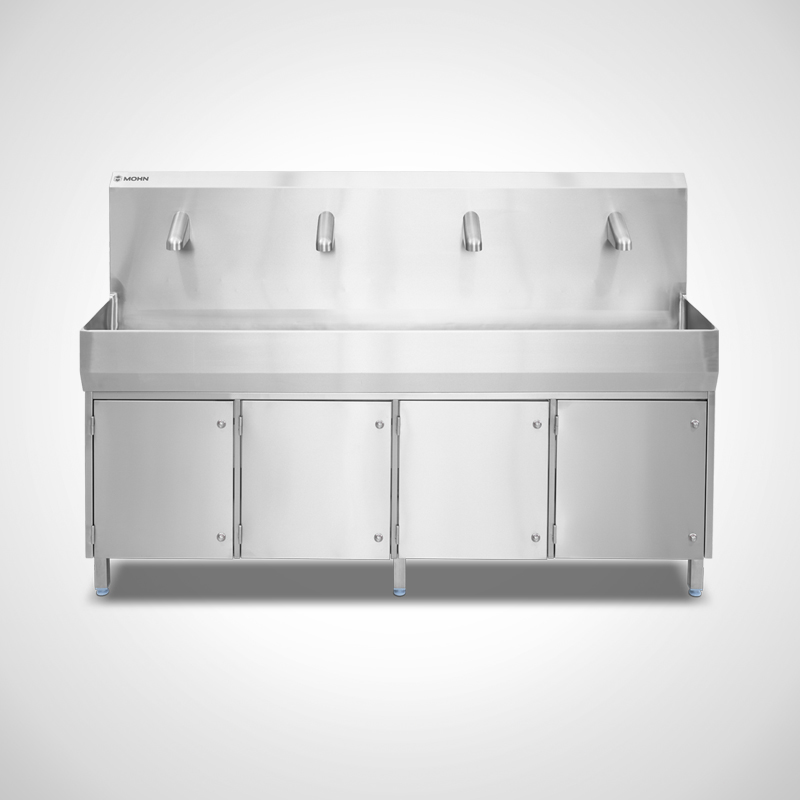

Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64 Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64
Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64 Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64
Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64 Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64
Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64Base cabinet with feet Type US-WR-HL-4/ 41, item no. 12.00.03.34 with optional sensor hand wash basin Type HWB-HL 4/41, item no. 12.00.01.64

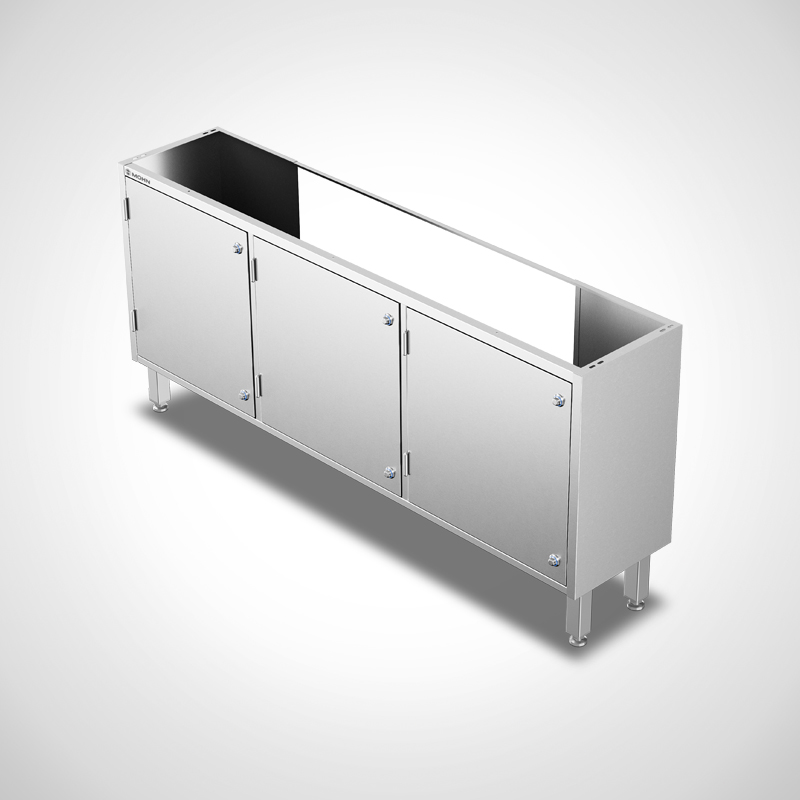

Base cabinet for multiple wash basin
Type US-WR-HL

Compatible with mohn-hand wash basin type wr-HL

  • 2 different cabinet depths (375 mm or 315 mm)
  • On two sides blends made of stainless steel
  • Open at the back for media connections
  • Front with 1 hinged door (DIN left)
  • Hinged door with 2 stainless steel locking lever in hygienic-design
  • Stand version with 4 plastic screw feet (+/- 30 mm)
  • Rear feet indented by 50 mm (chamfer)
  • Ground clearance: 150 mm

TypeVersionDimensions
W x D x H in mm		PDF
cabinet depth: 375 mm

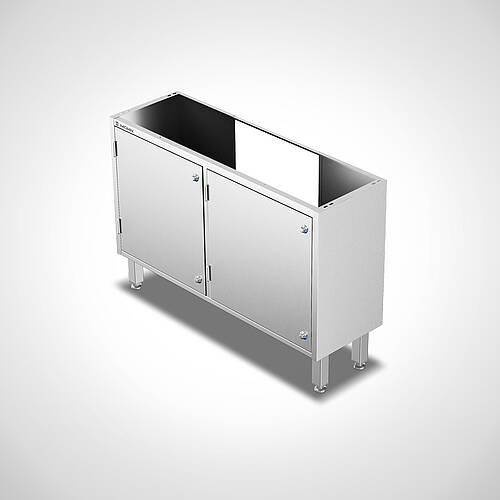

US-WR-HL 2/414 feet - hinged door (din left)1000 x 375 x 69012.00.03.32
US-WR-HL 3/414 feet - hinged door (din left)1500 x 375 x 69012.00.03.33

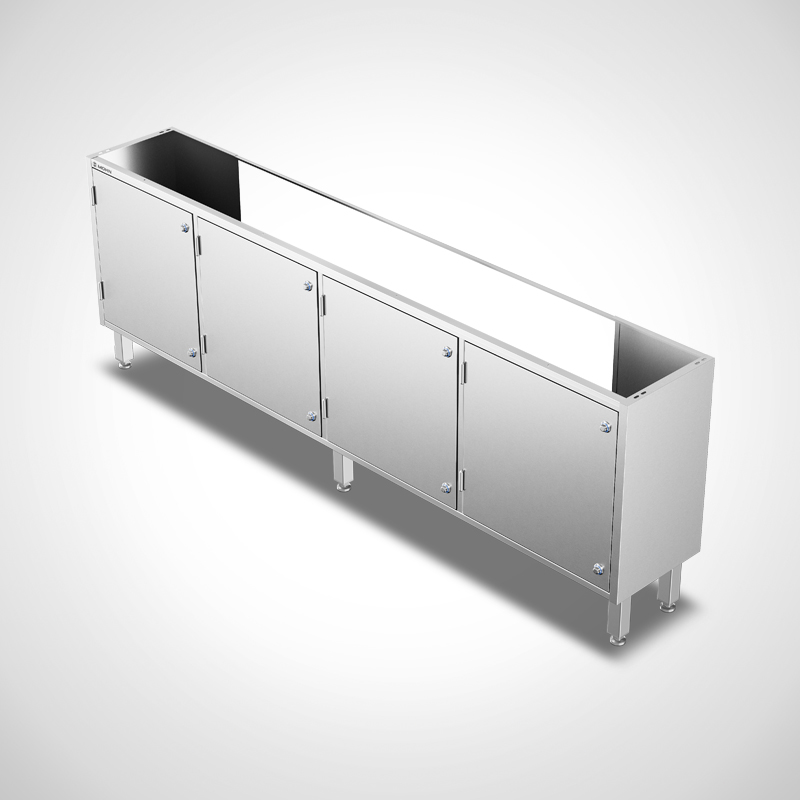

US-WR-HL 4/414 feet - hinged door (din left)2000 x 375 x 69012.00.03.34

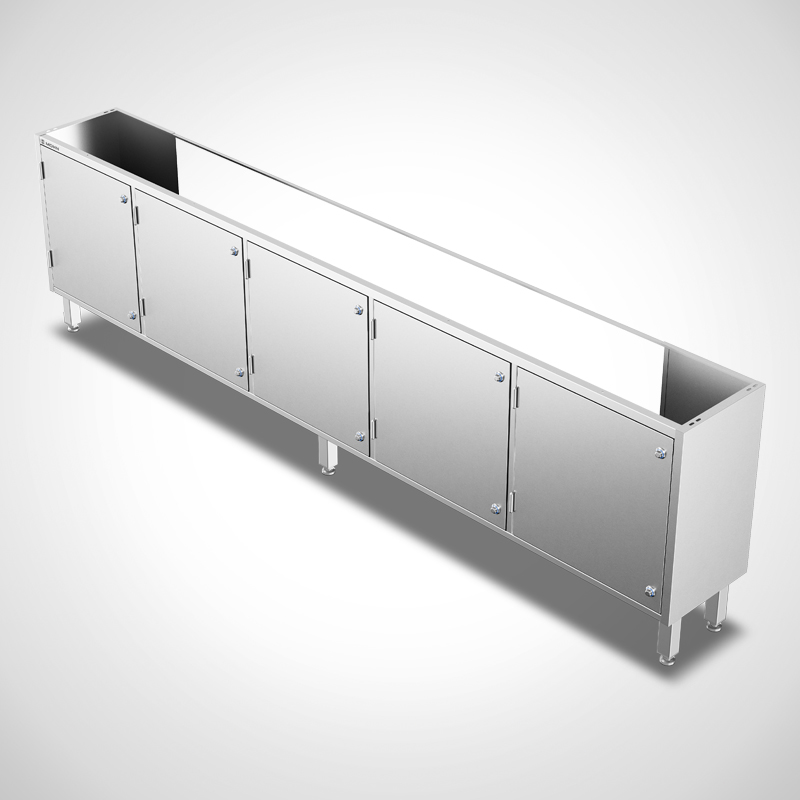

US-WR-HL 5/414 feet - hinged door (din left)2500 x 375 x 69012.00.03.35
cabinet depth: 315 mm
US-WR-HL 2/354 feet - hinged door (din left)2500 x 315 x 69012.00.03.36
US-WR-HL 3/354 feet - hinged door (din left)1500 x 315 x 69012.00.03.37
US-WR-HL 4/354 feet - hinged door (din left)2000 x 315 x 69012.00.03.40
US-WR-HL 5/354 feet - hinged door (din left)2500 x 315 x 69012.00.03.41
Special dimensions
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery without multiple wash basin type WR-HL 1 or WR-HL 1/35 and without accessories and attachments.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish.



Description

Base cabinets with a depth of 375 mm are suitable for multiple hand wash basins with a depth of 410 mm, base cabinets with a cabinet depth of 315 mm are suitable for multiple hand wash basins with a depth of 350 mm.

You could also be interested in these products:

Details

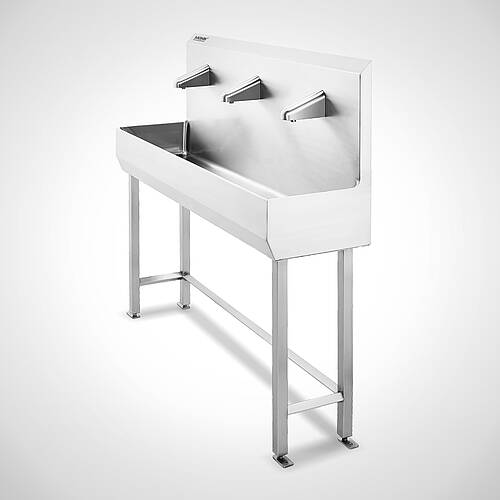

Foot frames for multiple wash basins
Type FGFURTHER
Details

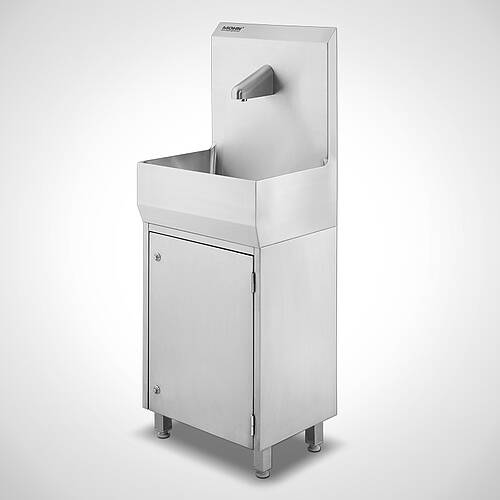

Wash basin cabinet for HWB-HL
