Hygiene station Clean-Station Type CS-T Ecoline, art. no. 11.10.08.35Hygiene station Clean-Station Type CS-T Ecoline, art. no. 11.10.08.35

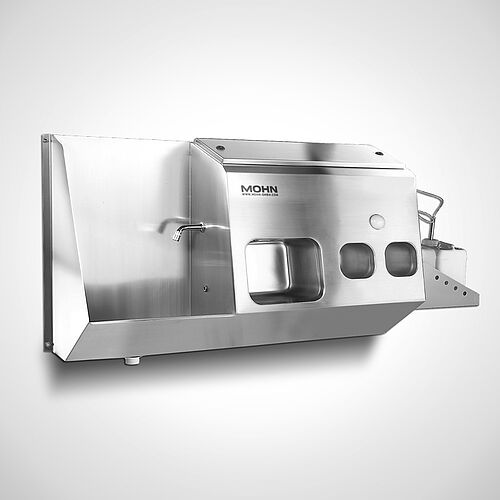

Clean-Station CS-T Ecoline

Controlled cleaning, drying + disinfection of the hands through forced sequence

  • Hygienic design
  • Optional LEFT-RIGHT or RIGHT-LEFT version
  • Wall-mounted version resp. with foot frame
  • Sluice with contactless fittings for water and soap
  • High-speed hand drier, 3.2 kW
  • Sensor-controlled 2-hand automatic disinfectant dispenser
  • Potential-free contact for controlling of, for ex. rapidaction gate, door etc.
  • Multi-LED signal display

TypeVersionDimensions
W x D x H in mm		ComparePDF
CS-T WRWall-right1553 x 375 x 80011.10.08.3411.10.08.34
CS-T WLWall-left1553 x 375 x 80011.10.08.3511.10.08.35
CS-T SRStand-right1553 x 375 x 162511.10.08.3611.10.08.36
CS-T SLStand-left1553 x 375 x 162511.10.08.3711.10.08.37
Special dimensions
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1142
362
8
Show Lightbox Compare
Comparedata

Material

Made of rustproof stainless steel 1.4301, Surface brushed





Technical Data

Power supply230 V 1-N/PE; 50-60 Hz
Performance3,4 kW
Drain1 1/2"
Water connection3/4" (HW/CW )
