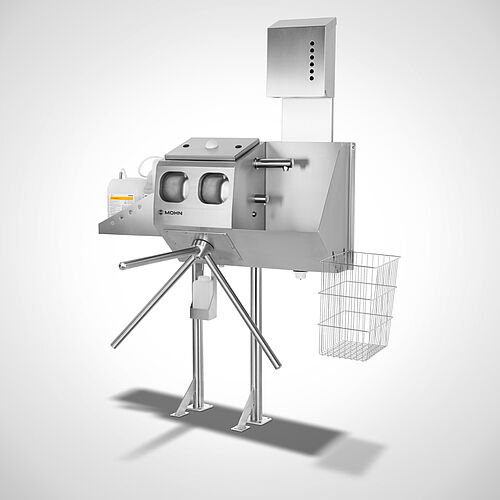

Clean-Station Type CSD-SR, right-hand version with base, art. no. 11.10.08.24

Clean-Station Type CSD-SR, right-hand version with base, art. no. 11.10.08.24

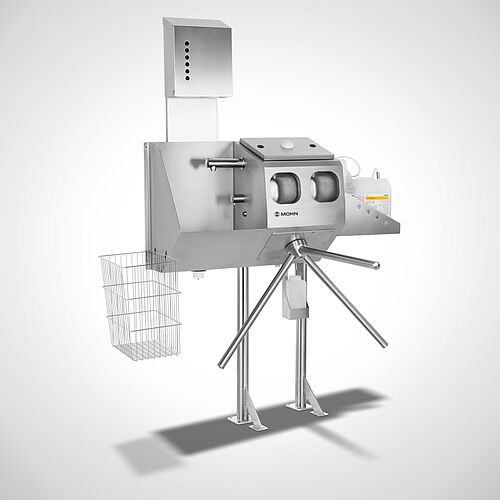

Clean-Station Type CSD-SL, left-hand version with base, art. no. 11.10.08.25

Clean-Station Type CSD-SL, left-hand version with base, art. no. 11.10.08.25

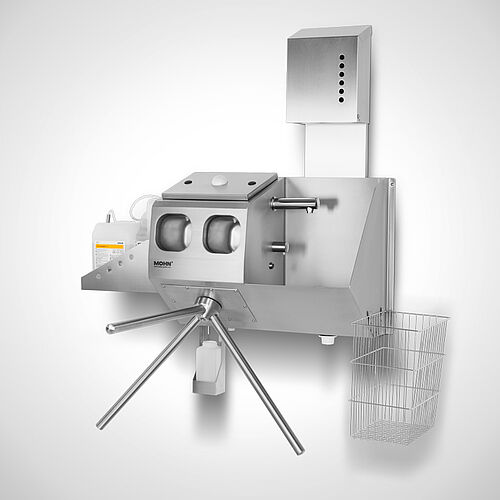

Clean-Station Type CSD-WR, wall-mounted right-hand version, art. no. 11.10.08.22

Clean-Station Type CSD-WR, wall-mounted right-hand version, art. no. 11.10.08.22

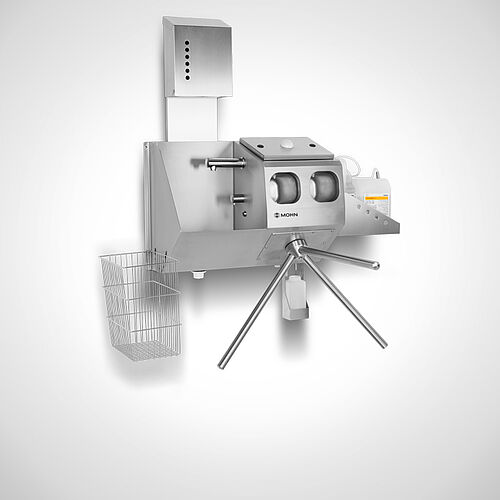

Clean-Station Type CSD-WL, wall-mounted left-hand version, art. no 11.10.08.23

Clean-Station Type CSD-WL, wall-mounted left-hand version, art. no 11.10.08.23

Clean-Station Type CSD-SR, right-hand version with base, art. no. 11.10.08.24

Clean-Station Type CSD-SR, right-hand version with base, art. no. 11.10.08.24

Clean-Station Type CSD-SL, left-hand version with base, art. no. 11.10.08.25

Clean-Station Type CSD-SL, left-hand version with base, art. no. 11.10.08.25

Clean-Station Type CSD-WR, wall-mounted right-hand version, art. no. 11.10.08.22

Clean-Station Type CSD-WR, wall-mounted right-hand version, art. no. 11.10.08.22

Clean-Station Type CSD-WL, wall-mounted left-hand version, art. no 11.10.08.23

Clean-Station Type CSD-WL, wall-mounted left-hand version, art. no 11.10.08.23

Clean-Station
Type CSD-Ecoline

Controlled 2-hand application hands by integrated controller

Ecoline version with stable turnstile*
Incl. circuit board control, potential-free contact available
Wall-mounted or with foot stand
Left-hand or right-hand version available
Way back electrically released, or permanently locked
Tamper-proof 2-hand sensor control
Electrical turnstile
Wash basin with contactless fittings for water and soap
Waste paper basket 40 litres (PK-D) & towel dispenser (HTSP-O)
Dosage of the application quantity adjustable
Multi-LED signal display

Type	Version	Dimensions W x D x H in mm	Compare	Art.-No. Please mark	PDF
CSD-WR	Wall-right	1153 x 864 x 575	11.10.08.22	11.10.08.2211100822	11.10.08.22
CSD-WL	Wall-left	1153 x 864 x 575	11.10.08.23	11.10.08.2311100823	11.10.08.23
CSD-SR	Stand-right	1153 x 864 x 1385	11.10.08.24	11.10.08.2411100824	11.10.08.24
CSD-SL	Stand-left	1153 x 864 x 1385	11.10.08.25	11.10.08.2511100825	11.10.08.25
Special dimensions				00.00.00.1000000010

Roll box dispenser Type RB-E	19.00.00.12 19000012
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Comparedata

*2 years warranty for the turnstile mechanism

Material

Rustproof stainless steel 1.4301

Technical Data

Power supply	230 V N/PE; 50-60 Hz
Performance	0,2 kW
Drain	2" (DN 50)
Water connection	3/4" (HW/KW) max. 43°C
Control voltage	24 V DC

Reference Photos
