Stage worktable with H-strutting

Stage worktable with H-strutting

Work tables wit hdpe-plate Type SAH-HWork tables wit hdpe-plate Type SAH-H

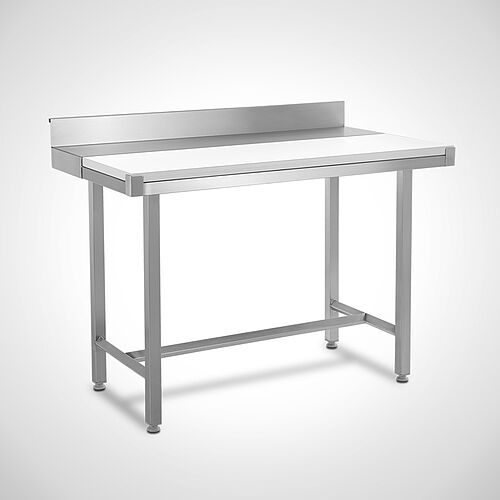

Stage-work table
Type SAH-H

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel
  • Stainless steel table top with rear 100 mm backsplash in 1.5 mm material thickness
  • Table top, underneath reinforced with surrounding square pipe profile frame
  • Incorporated step, dimension D 400 x S 30 mm
  • Plastic cutting plate (HDPE-500) on the front, inserted in stainless steel frame
  • Plastic cutting plate in 30 mm material thickness
  • Colour of the plastic cutting plate in white (standard); also available in red-brown without additional charge, or in blue, for example, against additional charge
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • Lower structure in H-shape design strutted in the “Hygienic-Design“- diamond profile
  • Supporting feet, 100 mm shifted inwards on the side and back
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeDimensions
W x D x H in mm		PDF
SAH-H 120-701200 x 700 x 85020000146
SAH-H 130-701300 x 700 x 85020000147
SAH-H 140-701400 x 700 x 85020000148
SAH-H 150-701500 x 700 x 85020000149
SAH-H 160-701600 x 700 x 85020000150
SAH-H 170-701700 x 700 x 85020000151
SAH-H 180-701800 x 700 x 85020000152
SAH-H 190-701900 x 700 x 85020000153
SAH-H 200-702000 x 700 x 85020000154
SAH-H 210-702100 x 700 x 85020000155
SAH-H 220-702200 x 700 x 85020000156
SAH-H 230-702300 x 700 x 85020000157
SAH-H 240-702400 x 700 x 85020000158
SAH-H 120-801200 x 800 x 85020000131
SAH-H 130-801300 x 800 x 85020000132
SAH-H 140-801400 x 800 x 85020000133
SAH-H 150-801500 x 800 x 85020000134
SAH-H 160-801600 x 800 x 85020000135
SAH-H 170-801700 x 800 x 85020000136
SAH-H 180-801800 x 800 x 85020000137
SAH-H 190-801900 x 800 x 85020000138
SAH-H 200-802000 x 800 x 85020000139
SAH-H 210-802100 x 800 x 85020000140
SAH-H 220-802200 x 800 x 85020000141
SAH-H 230-802300 x 800 x 85020000142
SAH-H 240-802400 x 800 x 85020000143
SAH-H 120-901200 x 900 x 85020000600
SAH-H 130-901300 x 900 x 85020000601
SAH-H 140-901400 x 900 x 85020000602
SAH-H 150-901500 x 900 x 85020000603
SAH-H 160-901600 x 900 x 85020000604
SAH-H 170-901700 x 900 x 85020000605
SAH-H 180-901800 x 900 x 85020000606
SAH-H 190-901900 x 900 x 85020000607
SAH-H 200-902000 x 900 x 85020000608
SAH-H 210-902100 x 900 x 85020000609
SAH-H 220-902200 x 900 x 85020000610
SAH-H 230-902300 x 900 x 85020000611
SAH-H 240-902400 x 900 x 85020000612
Special dimensions
PE-cutting plate in colour red-brown 22000250
Table leg height adjustment "Easy"  21000886
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

 All dimensions in mm. Other executions on request!



Material

Made of chrome-nickel steel 18/10 material No. 1.4301

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish

Plastic cutting plate (HDPE-500) on the front, inserted in stainless steel frame.



Options

  • Drawers
  • Mobile version, Ø125 mm, art. no. 99.90.01.50
  • Manual resp. electrical height-adjustable table top on request

HDPE/ Food-safe (current)


Signal white

RAL 9003


Light grey

RAL 7035


Dusty grey

RAL 7037


Anthracite grey

RAL 7016


Signal black

RAL 9004


Traffic white

RAL 9016


Pure green

RAL 6037


Mint green

RAL 6029


Light blue

RAL 5012


Sky blue

RAL 5015


Rape yellow

RAL 1021


Pastel-orange

RAL 2003


Telemagenta

RAL 4010


Traffic red

RAL 3020


Red brown

RAL 3011

Granite-bright
Granite-bright

HDPE/ Food-safe (expiring colors)


Sulphur-yellow

RAL 1016


Signal green

RAL 6032


Telegrey

RAL 7046


Mouse-grey

RAL 7005

(While stocks last)

INFO The real colors could differ from the representations shown here
