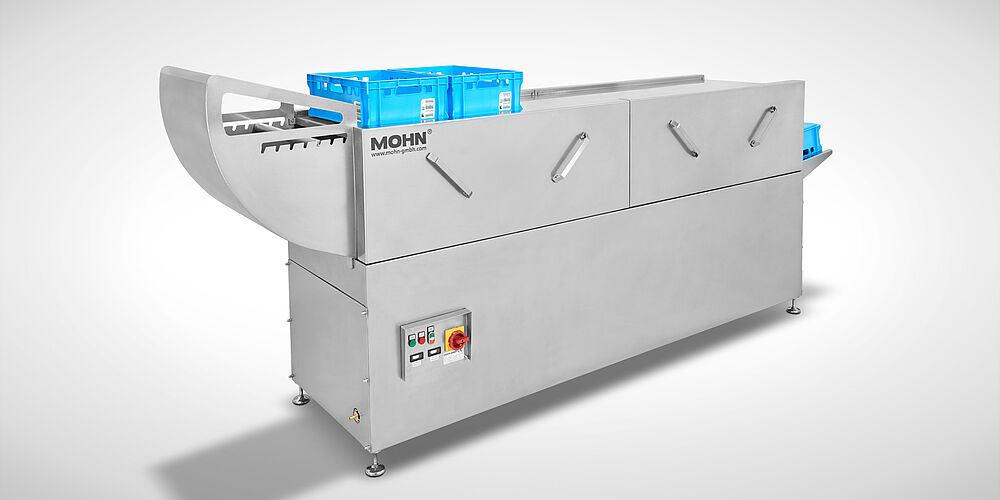

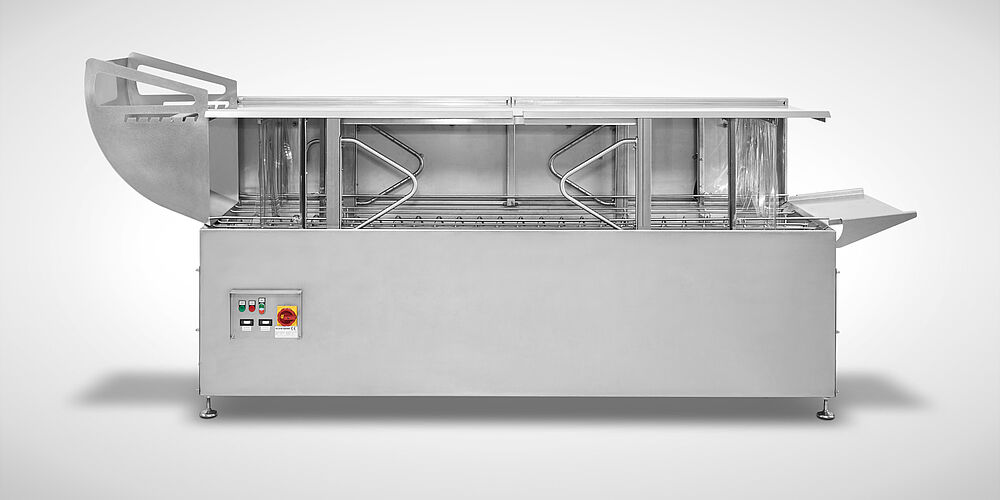

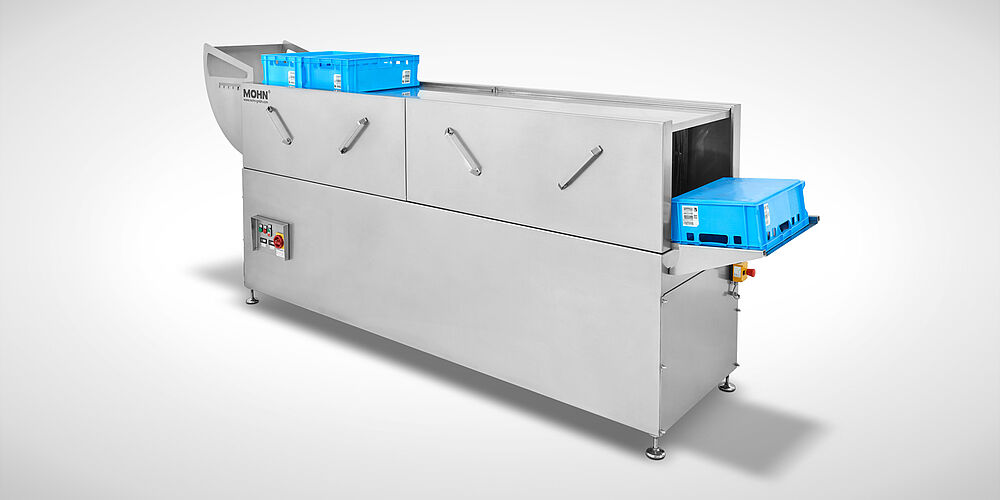

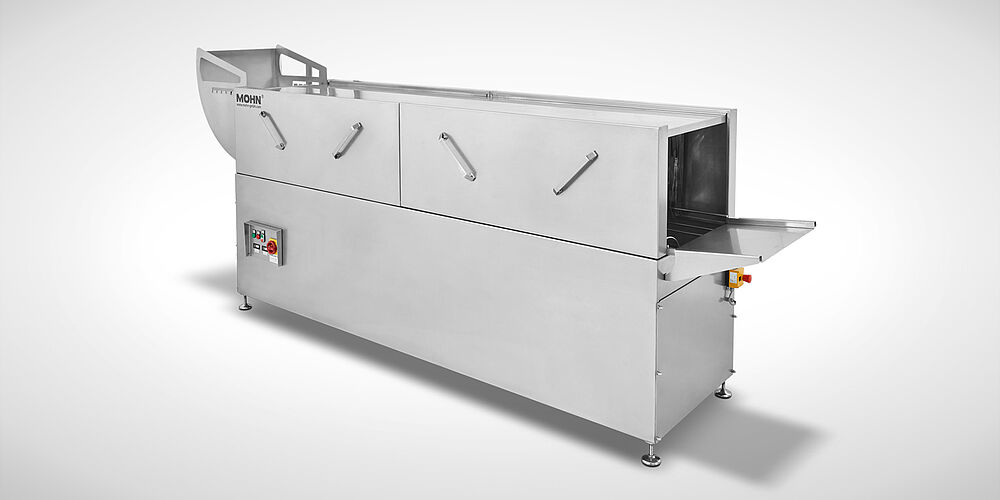

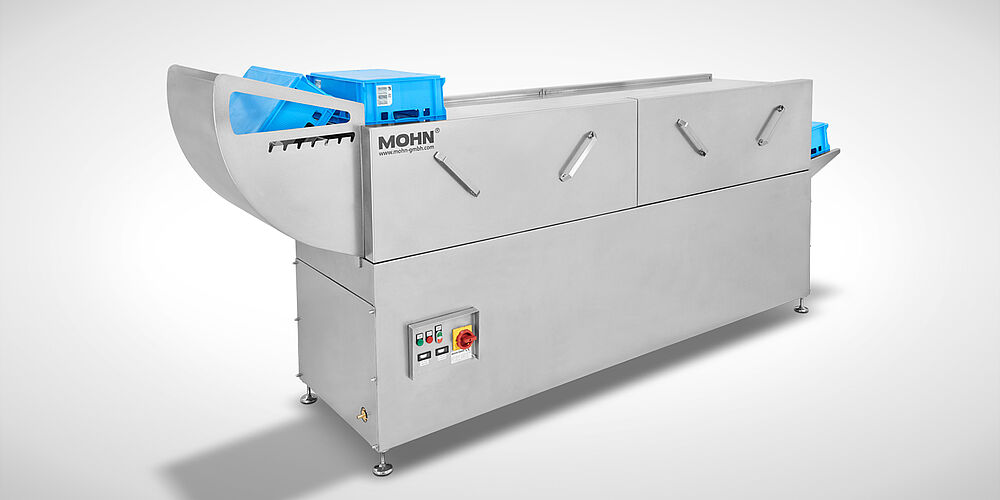

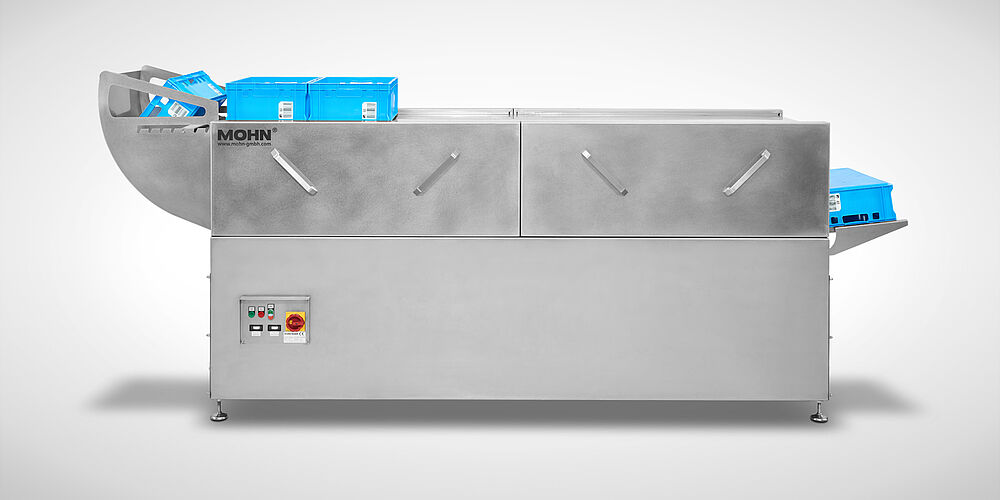

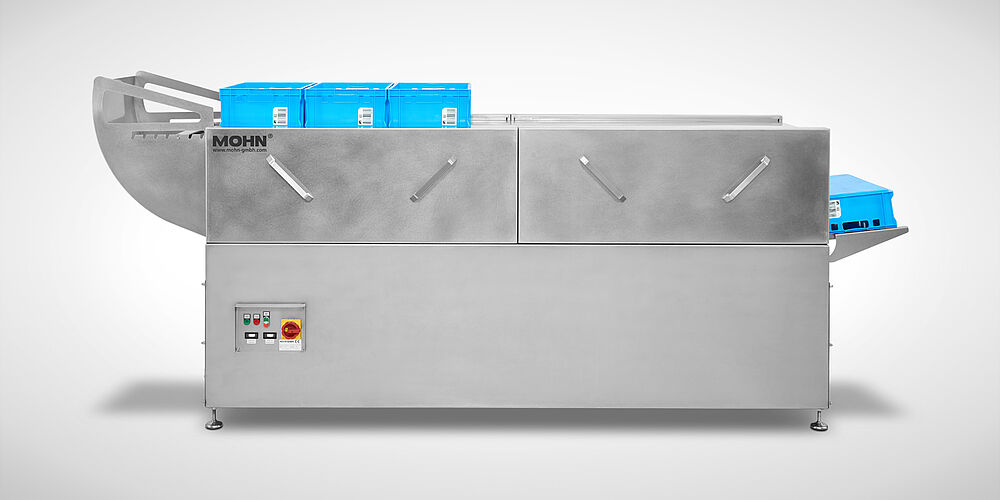

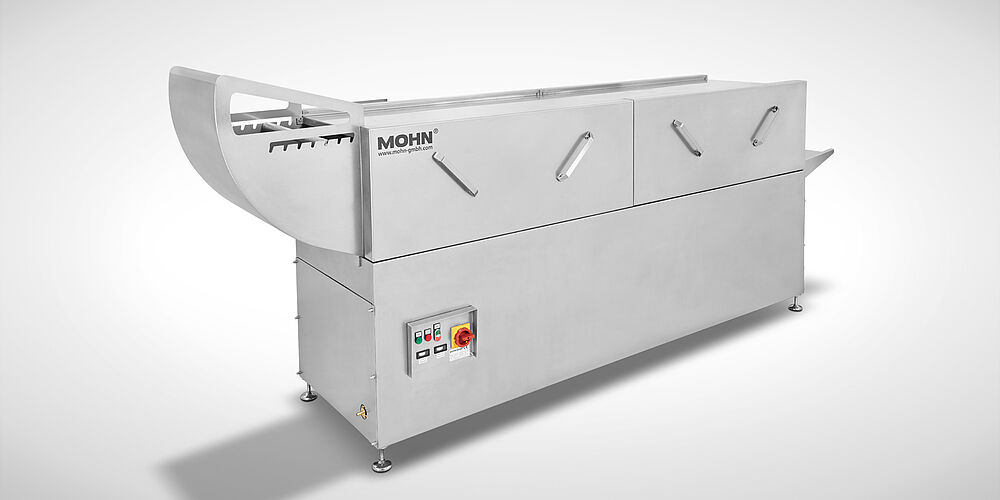

Box washing system Ecoline
Type DLWA 300
for cleaning up to 300 euronorm containers (E1 - E3) per hour
- Completely welded housing, exclusively made of stainless steel
- To a large extent, lower structure manufactured of 3 mm sheet metal, therefore very durable
- Main washing zone with two strong centrifugal pumps, total power 4.5 kW,
water circulation 1,400 l/min at a wash pressure of 1 bar, distributed to 80 stainless steel nozzles - Plate filter for constant cleaning and continuous filtering of the sud
- Crate transport by means of a motorized stainless steel spiral (utility model)
- Stainless steel spiral ensures unhindered impact of the detergent solution from the bottom side
- Cross passage of the container with optimal separation for the necessary distance
- System on M16 machine feet or stainless steel rollers (optionally)
- Adjustable box turner for one-person operation
- Inclination on the outfeed side for returning water on the bottom of the crate
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Technical data depends on equipment. Errors and omissions excepted. Information provided without guarantee.
Material
Made of rustproof stainless steel 1.4301
INFORMATIONS
- Necessary water supply temperature to be provided by the customer: > 40°C
Description

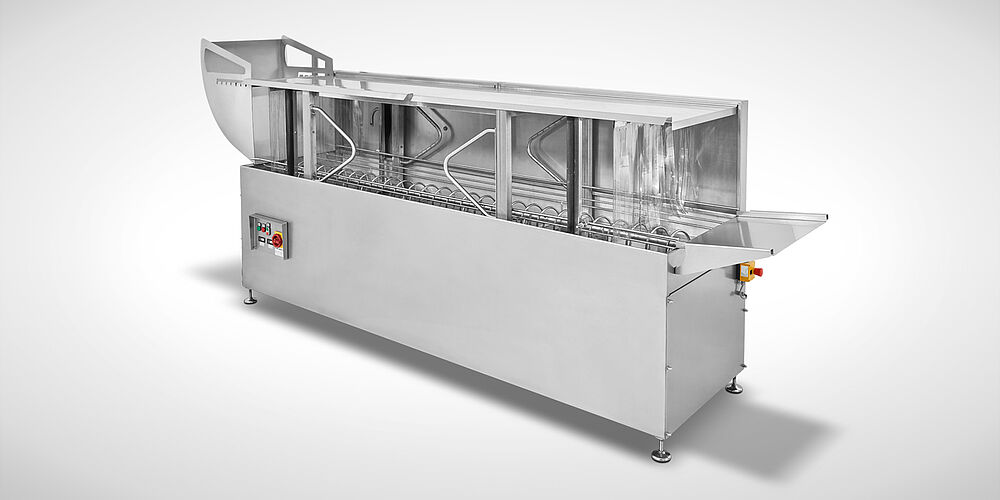

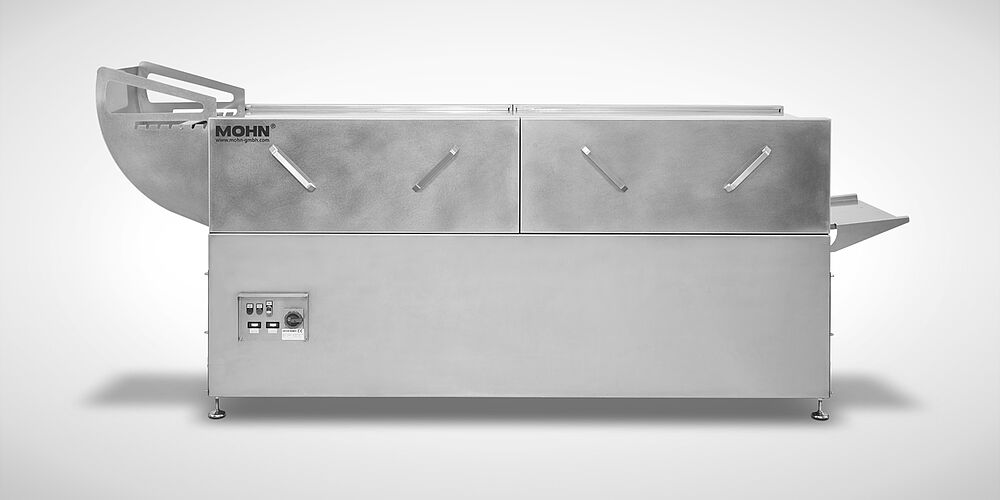

The compact pass-through washing system consists of a main washing zone and a final rinse zone over a length of 3000 mm. It can be used to quickly and effectively clean lightly to moderately soiled Euro-standard containers (E1 to E3).
